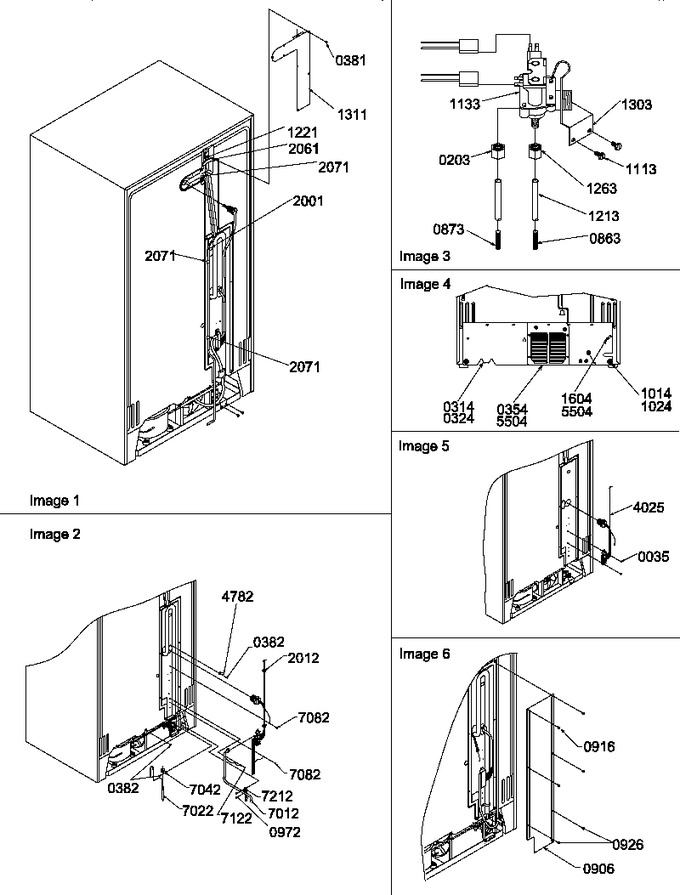

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
35	WP489069		Screw   (Replaces: M0220617)			Immediately	$ 8.40
203	M0753003		Nut, Sleeve		Appelez-nous	-
314	12041613		Assy, Mc Back		Appelez-nous	-
324	M0201216		Screw - Sm		Appelez-nous	-
354	12039903		Back, M.c.		Appelez-nous	-
381	WP489069		Screw   (Replaces: M0220617)			Immediately	$ 8.40
382	WP489069		Screw   (Replaces: M0220617)			Immediately	$ 8.40
863	A1055101		Spring, Antikink		Appelez-nous	-
873	A1055105		Spring, Anti Kink		Appelez-nous	-
906	10178405		Cover, O.c.back		Appelez-nous	-
916	WP489069		Screw   (Replaces: M0220617)			Immediately	$ 8.40
926	M0229217		Screw, Holt Sm		Appelez-nous	-
972	WP489474		Screw 1``   (Replaces: M0211021)			Immediately	$ 8.55
1014	WP489474		Screw   (Replaces: M0220634)			Immediately	$ 8.55
1024	C8960601		Foot, Outer Case		Appelez-nous	-
1113	681390		Screw   (Replaces: M0251015)				$ 13.71
1133	D7827204		Valve, Water (220/240 Vac, 50				$ 113.44
1213	WPB5705307		Tube, Plastic , 68``   (Replaces: B5705321)				$ 13.05
1221	WPM0114003		Clip, Speed   (Replaces: M0114003)				$ 11.60
1263	WP627018		Nut, Sleeve   (Replaces: M0753001)				$ 11.51
1303	10496302		Brkt, Water Valve		Appelez-nous	-
1311	10178505		Cover - Wire		Appelez-nous	-
1604	M0108001		Clamp, Tube		Appelez-nous	-
2001	M0104102		Clip, Cord				$ 8.10
2012	WPW10339879		Tie   (Replaces: M0321202)				$ 8.30
2061	A3189336		Gasket, Foam		Appelez-nous	-
2071	WPM0104106		Clip   (Replaces: M0104106)				$ 8.17
4025	12356301		Harness, Cab		Appelez-nous	-
4782	B5794201		Clamp		Appelez-nous	-
5504	M0227217		Screw, Sm		Appelez-nous	-
7012	12356403		Cord, Power (80`` Export)		Appelez-nous	-
7022	WPB2150504		Drier   (Replaces: B2150504)				$ 136.98
7042	10547002		Clip, Drier		Appelez-nous	-
7082	WP489399		Screw, Ca   (Replaces: M0239216)				$ 7.30
7122	67006425		Screw   (Replaces: M0239229)			Immediately	$ 7.30
7212	Y10203701		Strain Relief		Appelez-nous	-
NI	WPA3223101		Insert, Plastic Tube   (Replaces: A3223101)			Immediately	$ 8.21
