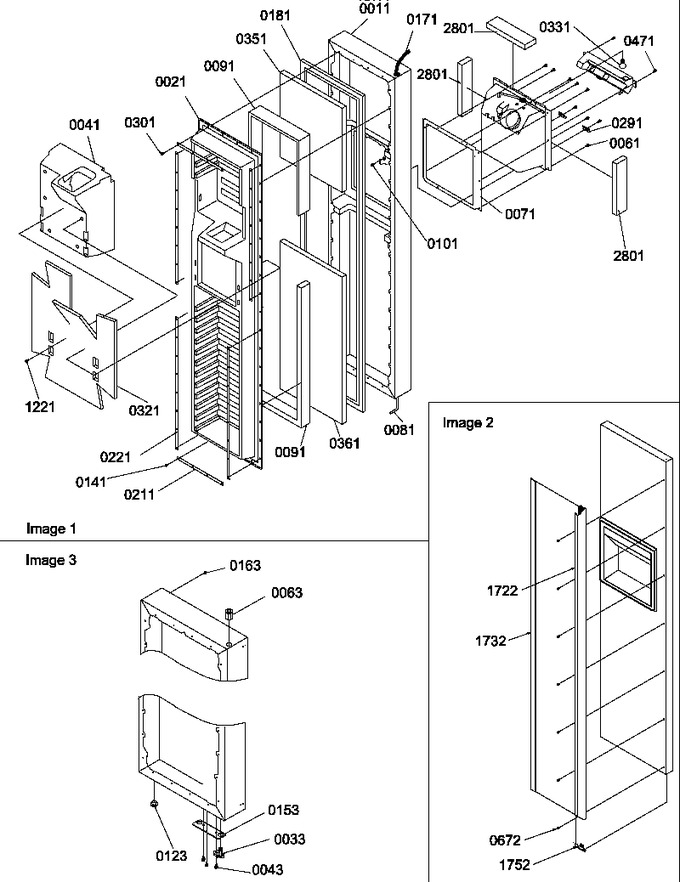

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | 10876213W | Assy, Fz Dr Fm (white) |
|
- | |||||
| 21 | 10861001 | Liner-i&w Fz Dr |
|
- | |||||
| 33 | R0181181 | Closure-w Door (Replaces: 12113201) |
|
Immediately | $ 7.55 | ||||
| 41 | 10872801 | Insul-i&w Cavity |
|
- | |||||
| 43 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 8.57 | |||||
| 61 | M0216517 | Screw |
|
- | |||||
| 63 | WP67004977 | Bushing, Top (Replaces: C8964401) |
|
$ 8.20 | |||||
| 71 | D7791003 | Gasket Cavity |
|
- | |||||
| 81 | WPB5705307 | Tube, Plastic , 68`` (Replaces: B5705321) |
|
$ 13.05 | |||||
| 91 | B0523563 | Insulation Ft. K |
|
- | |||||
| 101 | WP489399 | Screw (Replaces: M0232903) |
|
$ 7.30 | |||||
| 123 | M0310308 | Plug, Button (wht) |
|
- | |||||
| 141 | M0226705 | Screw, Shoulder |
|
- | |||||
| 153 | 10161803 | Door Stop |
|
- | |||||
| 163 | 10281002 | Grommet, Screw |
|
- | |||||
| 171 | 12363101 | Harness, Frz Door |
|
- | |||||
| 181 | 10359709 | Gasket (w Frz Dr) |
|
- | |||||
| 211 | C8982801 | Retainer, Door Liner |
|
- | |||||
| 221 | D7828601 | Retainer, Door Liner |
|
- | |||||
| 291 | C8992901 | Clip |
|
- | |||||
| 301 | M0219730 | Screw |
|
$ 7.65 | |||||
| 321 | 10940701 | Insul-disp Batt |
|
- | |||||
| 331 | M0360401 | Light Bulb (220/250) 6 Watt |
|
- | |||||
| 351 | 12016905 | Insul, Batt |
|
- | |||||
| 361 | 12016906 | Insul, Batt |
|
- | |||||
| 471 | M0216705 | Screw |
|
$ 5.81 | |||||
| 672 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 8.57 | |||||
| 1221 | M0311602 | Plug, Button (white) |
|
- | |||||
| 1722 | 12106208 | Handle, Frz Dr (ebony) |
|
- | |||||
| 1732 | 10945919 | Insert, E Handle |
|
- | |||||
| 1752 | 10871206 | Cap- E Fz Hndl Bot. |
|
- | |||||
| 2801 | B0523596 | Insul. By The Ft. |
|
- |
