Diagram # Part Number Description Series Availability Ships Price Add to Cart
11 10544108 Assy,cond/pan-e Ct Appelez-nous -
21 10602402 Shroud, Cond. Fan Appelez-nous -
52 10169902 Relay Appelez-nous -
62 M0234114 Screw Appelez-nous -
72 WP90767 Screw   (Replaces: M0216716) In-Stock Immediately $ 8.25

82 M0585502 Support-pc Board Appelez-nous -
92 10276906 Top, Hv Box Appelez-nous -
101 10518703 Blade-fan Appelez-nous -
102 10277022 H V Box-e Ct Appelez-nous -
112 10492402 Switch, Crushed/cube Appelez-nous -
121 WPW10169124 Grommet, Compressor   (Replaces: 10835901) Special Order $ 7.55

122 10877104 Cover-switch Appelez-nous -
132 10898901 Board, H.v. Pc Appelez-nous -
142 10899002 Flap, Protective Appelez-nous -
151 10628501 Spring, Term Cover Appelez-nous -
161 M0221523 Screw, Shldr Appelez-nous -
171 M0500107 Grommet K Appelez-nous -
172 12007703 Harness, M.c. Appelez-nous -
181 M0238859 Screw, Shoulder Appelez-nous -
211 10377018 Overload Appelez-nous -
221 B5696108 Brkt, Line Filter Appelez-nous -
251 10097206 Relay Appelez-nous -
271 10958302 Capacitor Appelez-nous -
281 10378302 Cover-terminal Appelez-nous -
301 10496501 Kit,shroud/brkt Sound Appelez-nous -
331 D7846903 Motor-condenser (230 Vac,50/60 Appelez-nous -
341 12020102 Compressor, (220/230 Vac) Appelez-nous -
501 M0223803 Screw Appelez-nous -
521 M0253916 Screw Appelez-nous -
531 WP489128 Screw   (Replaces: M0253516) Special Order $ 11.40

541 WP90767 Screw   (Replaces: M0216716) In-Stock Immediately $ 8.25

571 DC61-40081A Tie, Wire   (Replaces: M0585401) Special Order $ 0.94

651 10495702 Brkt, Drain Pan Mtg. Appelez-nous -
661 10507903 Pan, Drain Appelez-nous -
781 M0322202 Tie Wire Appelez-nous -
791 WPW10339879 Tie   (Replaces: M0321202) Special Order $ 8.30

811 A4539601 Pop Rivet Appelez-nous -
921 WP489399 Screw, Ca   (Replaces: M0239216) Special Order $ 7.30

1021 Y00000000 See Note Hv Box Assy -- (see Image 2 Pages 24 & 25 For Assy Breakdown) Appelez-nous -
1061 M0272803 Lock Washer Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

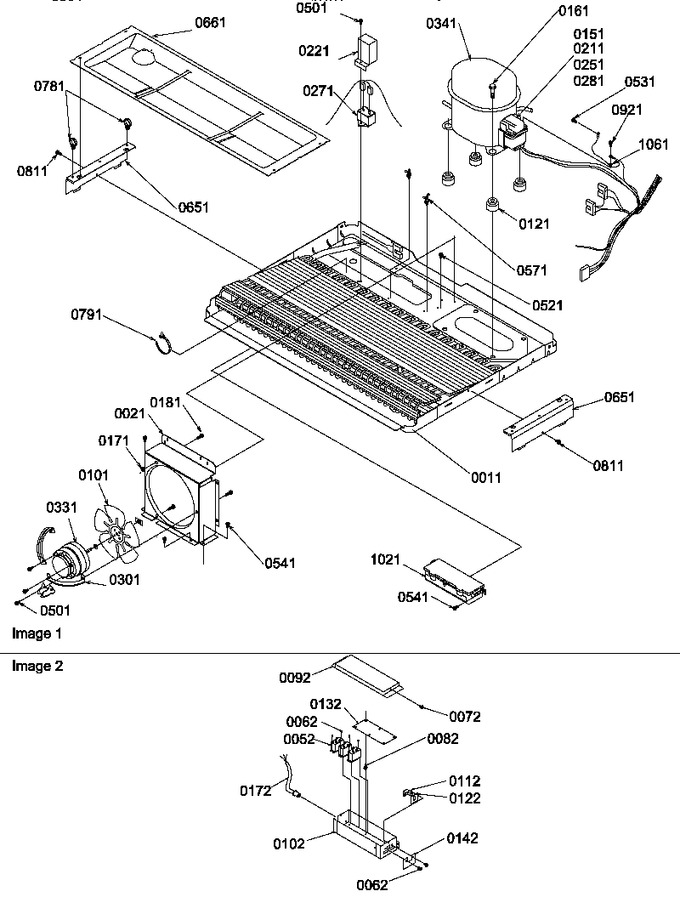

Diagram for SRDE528TW (BOM: P1310301W W)
