SELECT A DIAGRAM

01 - Cabinet Back


02 - Cabinet Parts


03 - Deli, Shelves, Crisper Assemblies & Acs


04 - Drain Systems, Rollers, And Evap Assy


05 - Fz Door


06 - Fz Shelves And Light


07 - Ice & Water Cav/elec Assy/& Toe Grille


08 - Ice Bucket Auger, Im & Im Parts


09 - Ice Maker/control Assy


10 - Machine Compartment


11 - Ref Door


12 - Ref/fz Shelves, Lights, And Hinges

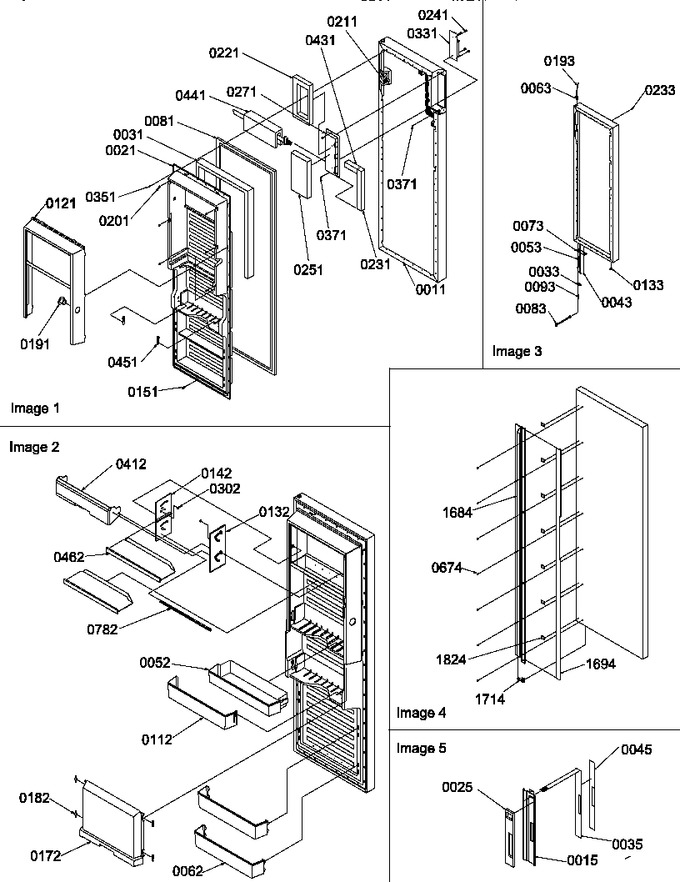

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	10876108W		Assy, Ref Dr Fm (white)		Appelez-nous	-
15	12106401		Handle, Ref Dr (white)		Appelez-nous	-
21	10861401		Liner-ref Dr		Appelez-nous	-
25	10887804		Gasket-control		Appelez-nous	-
31	B0523563		Insulation Ft. K		Appelez-nous	-
33	12113301		Closure, Door (wht)		Appelez-nous	-
35	10519401		Assy, Keyboard		Appelez-nous	-
43	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
45	10603106		Faceplate-w Elect		Appelez-nous	-
52	10111007		Bucket-igloo		Appelez-nous	-
53	12113401		Closure, Door (wht)		Appelez-nous	-
62	10521814		Shelf-ref Door		Appelez-nous	-
63	WP67004977		Bushing, Top   (Replaces: C8964401)				$ 8.20
73	10161803		Door Stop		Appelez-nous	-
81	10359708		Gasket, Door (w Ref)		Appelez-nous	-
83	M0335412		Connector-12 Pin		Appelez-nous	-
93	10561601		Assy, Hinge Pin		Appelez-nous	-
112	10520410		Shelf, Chiller		Appelez-nous	-
121	10154901		Frame-igloo Dairy		Appelez-nous	-
132	12102911		Track-dairy Door		Appelez-nous	-
133	M0310308		Plug, Button (wht)		Appelez-nous	-
142	12102912		Track-dairy Door		Appelez-nous	-
151	M0226705		Screw, Shoulder		Appelez-nous	-
172	10111809		Door, Igloo		Appelez-nous	-
182	10162101		Glide-igloo Door		Appelez-nous	-
191	10165001		Tunnel-air		Appelez-nous	-
193	12212206		Harness, Refr Door		Appelez-nous	-
201	10165101		Clip-tubular		Appelez-nous	-
211	B5629055		Insulation Batt		Appelez-nous	-
221	10271101		Insul. Batt.		Appelez-nous	-
231	B5629059		Insulation Batt		Appelez-nous	-
233	10281002		Grommet, Screw		Appelez-nous	-
241	M0217204		Screw		Appelez-nous	-
251	B5612028		Insulation Batt		Appelez-nous	-
271	D7832904		Cover,p.c. Board		Appelez-nous	-
302	M0500706		Seal-o Ring		Appelez-nous	-
331	10866002		Board-lv Pc X		Appelez-nous	-
351	M0219730		Screw				$ 7.65
371	M0234114		Screw		Appelez-nous	-
412	12103001		Door-dairy		Appelez-nous	-
431	B5629060		Insulation Batt		Appelez-nous	-
441	B0523585		Insulation Batt Per Foot		Appelez-nous	-
451	10202001		Clip, Retainer		Appelez-nous	-
462	10893201		Shelf, Dairy		Appelez-nous	-
674	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
782	12102801		Rod-retainer		Appelez-nous	-
1684	10887903		Ass`y, Ref Handle		Appelez-nous	-
1694	10945901		Insert, W Handle		Appelez-nous	-
1714	10871401		Cap-w Hndl Bot.		Appelez-nous	-
1824	10875801		Clip-handle		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
