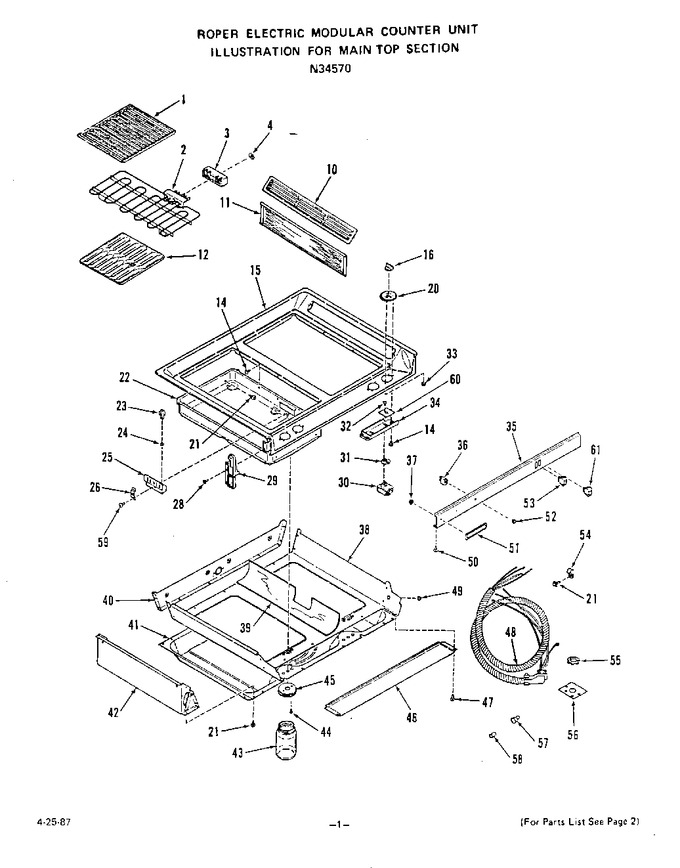

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	331897		Grate-grill (2 Req)		Appelez-nous	-
2	334981		Element Grill		Appelez-nous	-
3	330310		Terminal Block-grill Element		Appelez-nous	-
4	330332		Clip-push On		Appelez-nous	-
10	329021		Air Intake-grill (rt. Or Lt.)		Appelez-nous	-
11	329033		Air Filter (rt. Or Lt.)		Appelez-nous	-
12	332382		Reflector-grill Support (2 Req)		Appelez-nous	-
14	327621		Screw 6-20x3/8``		Appelez-nous	-
15	329040		Main Top (black)		Appelez-nous	-
15	328768		Main Top (almond)		Appelez-nous	-
15	328769		Main Top (platinum)		Appelez-nous	-
15	328770		Main Top (toast)		Appelez-nous	-
15	337652		Main Top (chrome)		Appelez-nous	-
15	328767		Main Top (white)		Appelez-nous	-
16	330556		Knob-infinite Control (2 Req)		Appelez-nous	-
20	331540		Cup-knob (lt. Rear)		Appelez-nous	-
20	331541		Cup-knob (rt. Rear)		Appelez-nous	-
20	331542		Cup-knob (lt. Front)		Appelez-nous	-
20	331543		Cup-knob (rt. Front)		Appelez-nous	-
21	327320		Screw 10-16x7/16``		Appelez-nous	-
22	331926		Grease Well (left)		Appelez-nous	-
22	331927		Grease Well (right)		Appelez-nous	-
23	333733		Terminal-female (8 Req)		Appelez-nous	-
24	78565		Terminal Screw 8-32x3/16`` (8 Req)		Appelez-nous	-
25	333732		Terminal Block (2 Req)		Appelez-nous	-
26	310693		Clamps-terminal Block (2 Req)		Appelez-nous	-
28	316849		Screw-10-32x1/2``		Appelez-nous	-
29	328784		End Cap (right)		Appelez-nous	-
29	328783		End Cap (left)		Appelez-nous	-
30	5500-200		Infinite Control (4 Req)   (Replaces: 331619)			Immediately	$ 54.85
31	280157		Seal-infinite Control (4 Req)				$ 275.75
32	78565		Screw 8-32x3/16``		Appelez-nous	-
33	78593		Pal Nut		Appelez-nous	-
34	331875		Mounting Tray-switch (rt. Or Lt.)		Appelez-nous	-
35	332628		Front Panel		Appelez-nous	-
36	327326		Indicator Light		Appelez-nous	-
37	78593		Speed Clip (2 Req)		Appelez-nous	-
38	333591		Housing-bottom & Sides		Appelez-nous	-
39	330186		Insulation-cabinet Bottom (2 Req)		Appelez-nous	-
40	329000		Housing-back & Front		Appelez-nous	-
41	329250		Plenum-blower		Appelez-nous	-
42	329013		Duct Side-lt Or Rt.		Appelez-nous	-
43	329034		Jar-grease (2 Req)		Appelez-nous	-
44	105771		Screw 10 - 32 X 1/4``		Appelez-nous	-
45	329010		Lid-jar (2 Req)		Appelez-nous	-
46	329019		Cover-switches		Appelez-nous	-
47	WP112432		Screw 10-32x7/16``   (Replaces: 311484)				$ 7.77
48	333725		Harness Conduit		Appelez-nous	-
49	232365		Bushing		Appelez-nous	-
50	329382		Screw 6-20x3/8``		Appelez-nous	-
51	329016		Name Plate		Appelez-nous	-
52	329465		Lens-indicator Light		Appelez-nous	-
53	331038		Switch		Appelez-nous	-
54	109266		Clamp-nylon		Appelez-nous	-
55	110340		Nut (for Key 48)		Appelez-nous	-
56	333487		Plate (for Key 48)		Appelez-nous	-
57	112062		Insulator (2 Req)		Appelez-nous	-
58	112061		Splice Cap (2 Req)		Appelez-nous	-
59	232183		Screw 8-32x3/8``		Appelez-nous	-
60	330289		Plate-switch (4 Req)		Appelez-nous	-
61	330117		Switch		Appelez-nous	-
