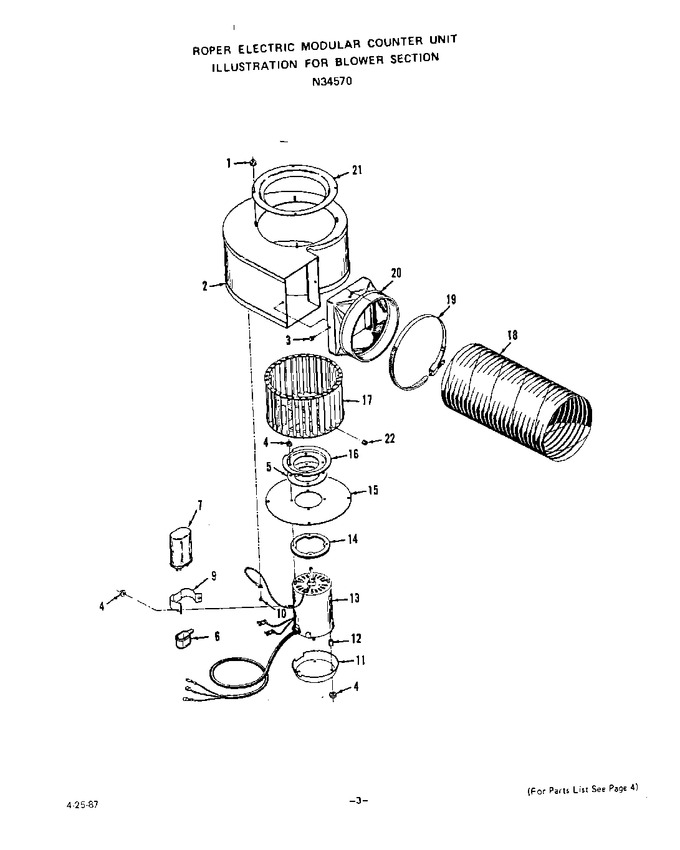

SELECT A DIAGRAM

02 - Main Top


03 - Blower


04 - Rotisserie


05 - Griddle , Griddle/grill Cover


06 - Electric Grill , Electric Coil


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	330275		Lock Nut		Appelez-nous	-
2	329644		Housing		Appelez-nous	-
3	327320		Screw 10-16x7/16``		Appelez-nous	-
4	239764		Keps Nut 8-32		Appelez-nous	-
5	330347		Gasket-motor Seal		Appelez-nous	-
6	330260		Cap-capacitor		Appelez-nous	-
7	329649		Capacitor		Appelez-nous	-
9	330261		Bracket-capacitor		Appelez-nous	-
10	233583		Screw 8abx1/4``		Appelez-nous	-
11	329659		Shield-motor		Appelez-nous	-
12	325308		Spacer		Appelez-nous	-
13	329646		Motor		Appelez-nous	-
14	329648		Rubber Motor Mount		Appelez-nous	-
15	329647		Plate-motor Mount		Appelez-nous	-
16	330346		Seal-motor		Appelez-nous	-
17	329645		Impellor		Appelez-nous	-
18	329031		Flexible Hose		Appelez-nous	-
19	329032		Clamp-hose		Appelez-nous	-
20	329030		Discharge-blower		Appelez-nous	-
21	329643		Inlet Ring		Appelez-nous	-
22	330263		Set Screw 24-5/16``x3/8``		Appelez-nous	-
