02 - Cook Top


03 - Backguard


04 - Oven Door


05 - Oven


06 - Blower


07 - Door Lock , Backsplash


08 - Electric Grill , Electric Coil


09 - Griddle , Griddle/grill Cover

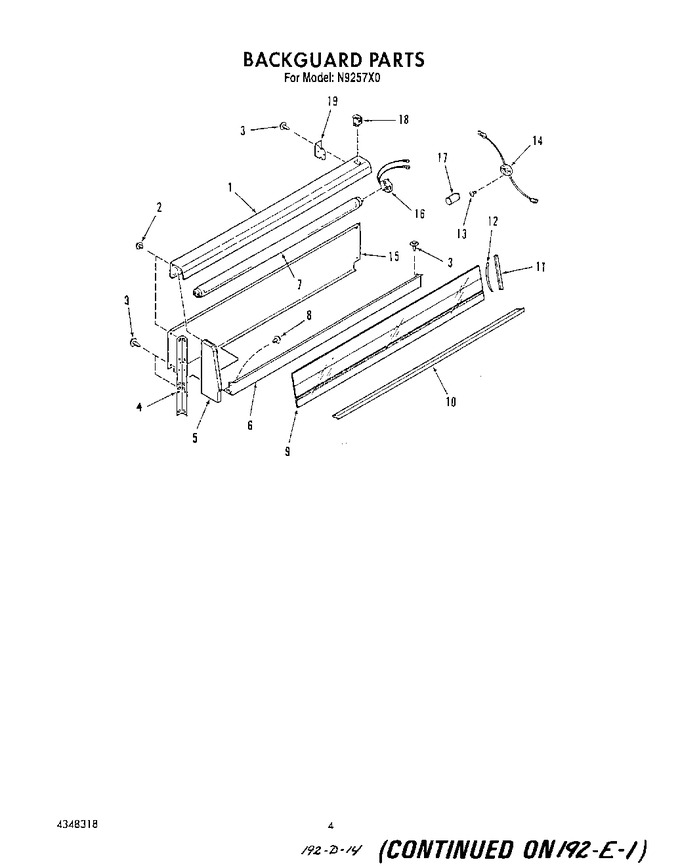

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4338391		Shade, Lamp		Appelez-nous	-
2	4323953		Screw No.10-32x1/4		Appelez-nous	-
3	WP681414		Screw, No.10-16 X 7/16   (Replaces: 4335248)			Immediately	$ 7.62
4	4342672		Support, Backguard		Appelez-nous	-
5	4342661		End Cap (left)		Appelez-nous	-
5	4342660		End Cap (right)		Appelez-nous	-
6	4338217		Backsplash		Appelez-nous	-
7	WP95292		Lamp, Fluorescent   (Replaces: 4337142)			Immediately	$ 121.45
8	4327216		Screw, No.6-32 X 1/4		Appelez-nous	-
9	4342662		Glass, Backguard		Appelez-nous	-
10	4342663		Trim, Bottom-glass		Appelez-nous	-
11	4342664		Trim, End		Appelez-nous	-
12	4338230		Spring, Trim		Appelez-nous	-
13	4335881		Screw		Appelez-nous	-
14	4338270		Starter, Base		Appelez-nous	-
15	4338161		Cover, Wire		Appelez-nous	-
16	4338150		Holder, Lamp (left)		Appelez-nous	-
16	4338355		Lamp Holder (right)		Appelez-nous	-
17	4337125		Starter		Appelez-nous	-
18	4338275		Switch		Appelez-nous	-
19	4338160		Bracket		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
