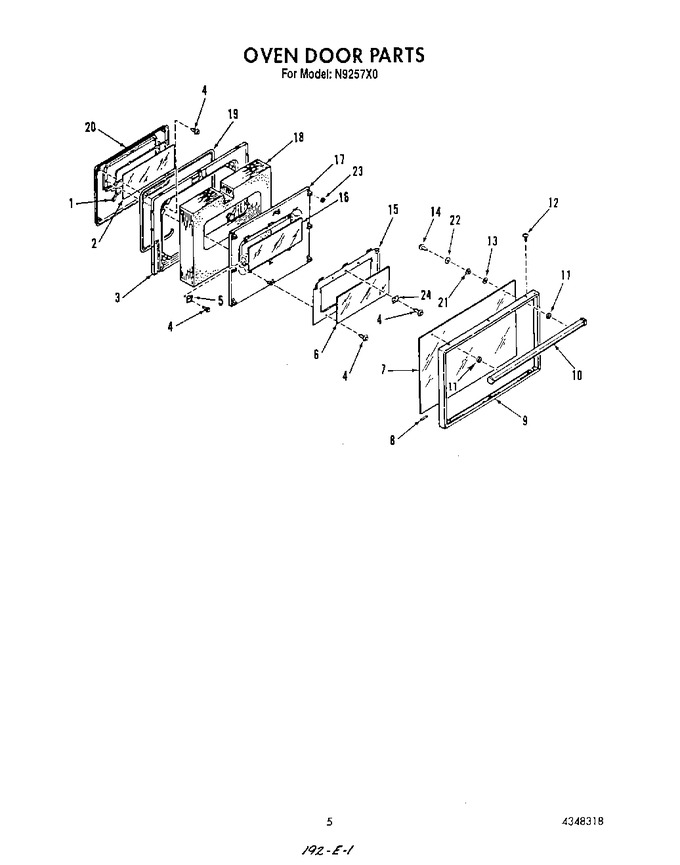

04 - Oven Door


05 - Oven


06 - Blower


07 - Door Lock , Backsplash


08 - Electric Grill , Electric Coil


09 - Griddle , Griddle/grill Cover


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4342634		Seal, Inner Glass		Appelez-nous	-
2	4337767		Glass, Inner Oven Door		Appelez-nous	-
3	4336704		Lining, Oven Door		Appelez-nous	-
4	WP681414		Screw 10-16x7/16   (Replaces: 4335248)			Immediately	$ 7.62
5	4331472		Retainer		Appelez-nous	-
6	4334821		Glass, Intermediate		Appelez-nous	-
7	4337863		Glass, Outer Oven Door		Appelez-nous	-
8	4324217		Cushion (3)		Appelez-nous	-
9	4337864		Frame, Oven Door		Appelez-nous	-
10	4336828		Handle, Oven Door		Appelez-nous	-
11	4323997		Spacer, Handle		Appelez-nous	-
12	4332521		Screw		Appelez-nous	-
13	4336868		Washer		Appelez-nous	-
14	WP999367		Screw 10-32x3/4   (Replaces: 4328242)				$ 7.70
15	4335753		Mounting Plate		Appelez-nous	-
16	4338251		Glass, Center		Appelez-nous	-
17	4338315		Retainer, Insulation		Appelez-nous	-
18	4354940		Insulation, Oven Door		Appelez-nous	-
19	4338115		Gasket, Oven Door		Appelez-nous	-
20	4337448		Panel, Inner Door		Appelez-nous	-
21	4336869		Spacer, Glass		Appelez-nous	-
22	4323694		Washer		Appelez-nous	-
23	4337618		Washer, Felt		Appelez-nous	-
24	4334791		Retainer, Glass		Appelez-nous	-
