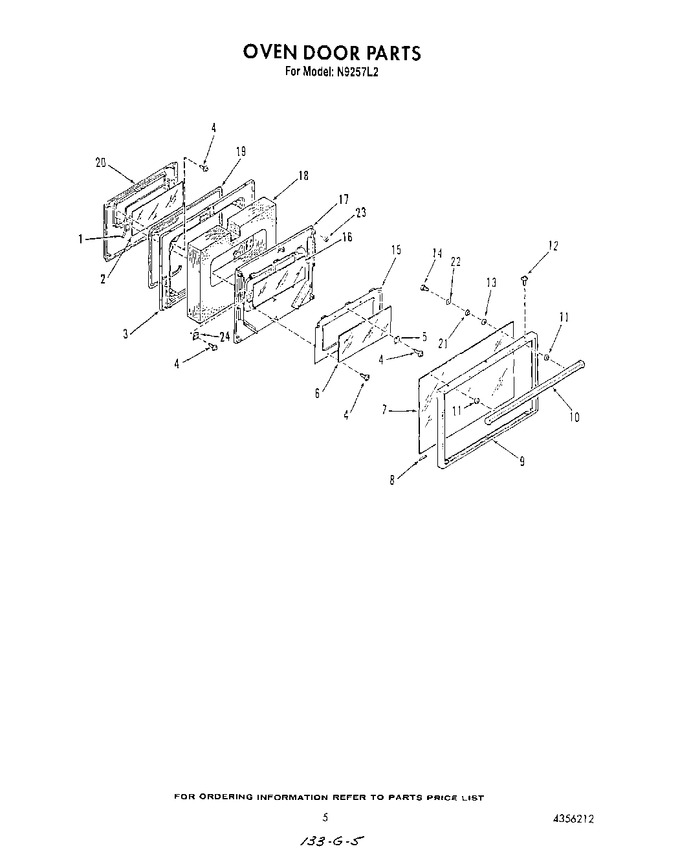

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4342634		Seal, Inner Glass		Appelez-nous	-
2	4337767		Glass, Inner Oven Door		Appelez-nous	-
3	4336704		Lining, Oven Door		Appelez-nous	-
4	W10850756		Screw, 10-16x7/16   (Replaces: 4343086)				$ 7.38
5	4331472		Retainer		Appelez-nous	-
6	4334821		Glass, Intermediate		Appelez-nous	-
7	4337863		Glass, Outer Oven Door		Appelez-nous	-
8	4324217		Cushion (3)		Appelez-nous	-
9	4337864		Frame, Oven Door		Appelez-nous	-
10	4336828		Handle, Oven Door		Appelez-nous	-
11	4323997		Spacer, Handle		Appelez-nous	-
12	4332521		Screw		Appelez-nous	-
13	4336868		Washer		Appelez-nous	-
14	4342665		Screw 10-32x3/4``		Appelez-nous	-
15	4335753		Mounting Plate		Appelez-nous	-
16	4338251		Glass, Center		Appelez-nous	-
17	4338315		Retainer, Insulation		Appelez-nous	-
18	4354940		Insulation, Oven Door		Appelez-nous	-
19	4342564		Gasket, Oven Door		Appelez-nous	-
20	4337448		Panel, Inner Door		Appelez-nous	-
21	4336869		Spacer, Glass		Appelez-nous	-
22	4342666		Retainer		Appelez-nous	-
23	4337618		Washer		Appelez-nous	-
24	4338515		Fuse, Thermal		Appelez-nous	-
24	4331472		Retainer, Glass Harness, Wire		Appelez-nous	-
24	4337929		Wire, Sensor		Appelez-nous	-
24	4338246		Wire, Relay		Appelez-nous	-
24	4336941		Wire, Control		Appelez-nous	-
24	4325031		Terminal, Eyelet		Appelez-nous	-
24	4325033		Terminal, Flag		Appelez-nous	-
24	WP285432		Terminal, Faston   (Replaces: 4325037)				$ 7.34
