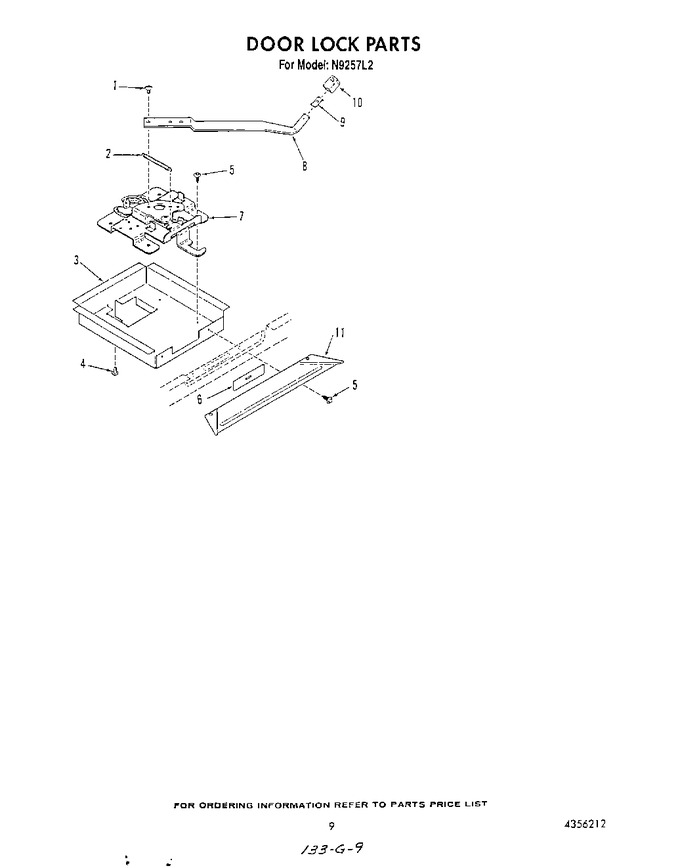

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4326551		Screw, No.10-24 X 1/4		Appelez-nous	-
2	4331536		Spring		Appelez-nous	-
3	4336705		Box, Mounting		Appelez-nous	-
4	4336048		Screw, No.6-20 X 3/8		Appelez-nous	-
5	W10850756		Screw, No.10-16 X 7/16   (Replaces: 4343086)				$ 7.38
6	4343006		Moisture Plate		Appelez-nous	-
7	4337490		Lock Assembly, (inc`s Illus. No.2)		Appelez-nous	-
8	4336811		Handle, Lock		Appelez-nous	-
9	4335705		Clip		Appelez-nous	-
10	4337568		Knob, Lock		Appelez-nous	-
11	4343005		Moisture Shield		Appelez-nous	-
