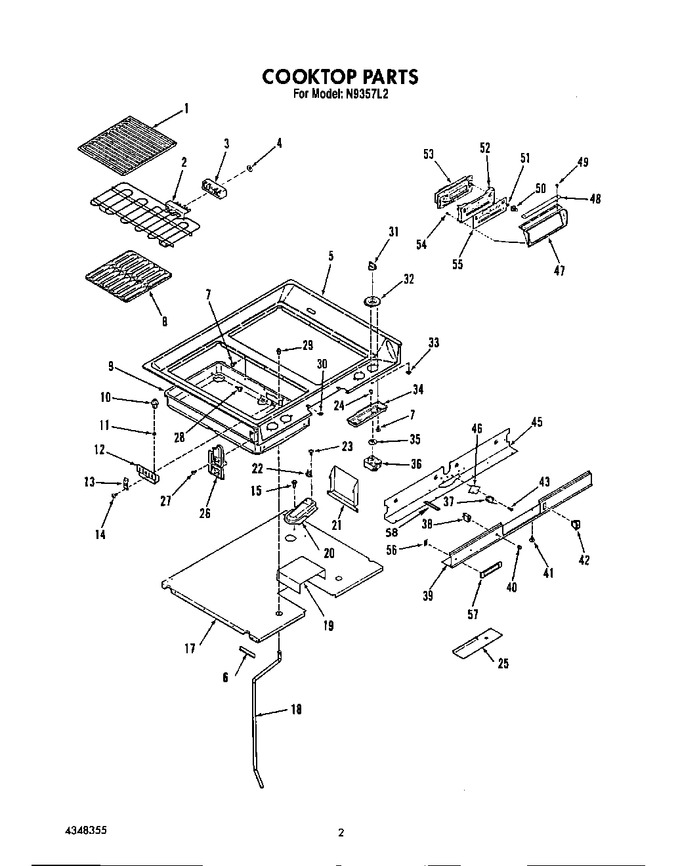

02 - Cooktop


03 - Oven


04 - Door Lock


05 - Optional Backsplash


06 - Oven Door


07 - Optional Electric Grill Module


08 - Optional Griddle , Optional Griddle


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4335911		Grill, Grate (2)		Appelez-nous	-
2	4337409		Element, Grill (240 Volt)		Appelez-nous	-
2	4337302		Element, Grill (208 Volt)		Appelez-nous	-
3	4335910		Block, Terminal		Appelez-nous	-
4	4323399		Clip		Appelez-nous	-
5	4337000		Cooktop (almond)		Appelez-nous	-
5	4337001		Cooktop (chrome)		Appelez-nous	-
6	4335097		Spacer		Appelez-nous	-
7	4338182		Screw		Appelez-nous	-
8	4336807		Grid, (2)		Appelez-nous	-
9	4337016		Grease Well (left)		Appelez-nous	-
9	4337017		Grease Well (right)		Appelez-nous	-
10	4337042		Terminal		Appelez-nous	-
11	4323479		Screw No.8-32 X 3/16		Appelez-nous	-
12	4337041		Block, Terminal		Appelez-nous	-
13	4336251		Clamp, Terminal Block		Appelez-nous	-
14	4324647		Screw, No.8-32 X 3/8		Appelez-nous	-
15	WP681414		Screw, No.10-16 X 7/16   (Replaces: 4335248)			Immediately	$ 7.62
17	4338186		Retainer, Top Insulation		Appelez-nous	-
18	4336823		Tube, Grease		Appelez-nous	-
19	4337081		Cover, Latch		Appelez-nous	-
20	4338185		Flue Duct		Appelez-nous	-
21	4337267		Extension, Vent		Appelez-nous	-
22	4337096		Switch, Thermostat		Appelez-nous	-
23	4338182		Screw		Appelez-nous	-
24	4350281		Screw No.8-32x3/16		Appelez-nous	-
25	4338589		Thermal Insulator		Appelez-nous	-
26	4336816		End Cap (right)		Appelez-nous	-
26	4336817		End Cap (left)		Appelez-nous	-
27	4337167		Screw, No.10 X 5/8		Appelez-nous	-
28	4335339		Screw No.16-20x3/8		Appelez-nous	-
29	4336824		Fitting		Appelez-nous	-
30	4337543		Speed Clip		Appelez-nous	-
31	4336360		Knob, Infinite		Appelez-nous	-
32	4336574		Knob Cup (right Front)		Appelez-nous	-
32	4336573		Knob Cup (left Front)		Appelez-nous	-
32	4336572		Knob Cup (right Rear)		Appelez-nous	-
32	4336571		Knob Cup (left Rear)		Appelez-nous	-
33	4342629		Nut, Speed		Appelez-nous	-
34	4337775		Plate, Mounting		Appelez-nous	-
35	4325524		Seal, Control		Appelez-nous	-
36	5500-200		Control, Infinite   (Replaces: 4337621)			Immediately	$ 54.85
37	4337377		Micro Switch		Appelez-nous	-
38	4336248		Light, Indicator		Appelez-nous	-
39	4337214		Panel, Control		Appelez-nous	-
40	4336078		Lens, Indicator Light		Appelez-nous	-
41	WP308685		Screw, No.10 X1/2   (Replaces: 4335117)			Immediately	$ 7.08
42	4336479		Switch, Oven Light		Appelez-nous	-
43	4335881		Screw No.4-40x11/16		Appelez-nous	-
45	4337451		Back, Control Panel		Appelez-nous	-
46	4335973		Insulation		Appelez-nous	-
47	4336815		Bezel, Clock/oven Control		Appelez-nous	-
48	4336919		Plate, Clock/oven Control		Appelez-nous	-
49	4328958		Screw No.6-32x3/8		Appelez-nous	-
50	4337194		Knob, Clock/oven		Appelez-nous	-
51	4337161		Hex Nut		Appelez-nous	-
52	4337210		Lens, Clock/oven		Appelez-nous	-
53	4338408		Clock/oven Control		Appelez-nous	-
54	4337582		Screw, No.6-32 X 5/16		Appelez-nous	-
55	4337075		Faceplate, Clock-oven Control		Appelez-nous	-
56	4323217		Clip		Appelez-nous	-
57	4335903		Nameplate		Appelez-nous	-
58	4337340		Spacer, Control Panel		Appelez-nous	-
