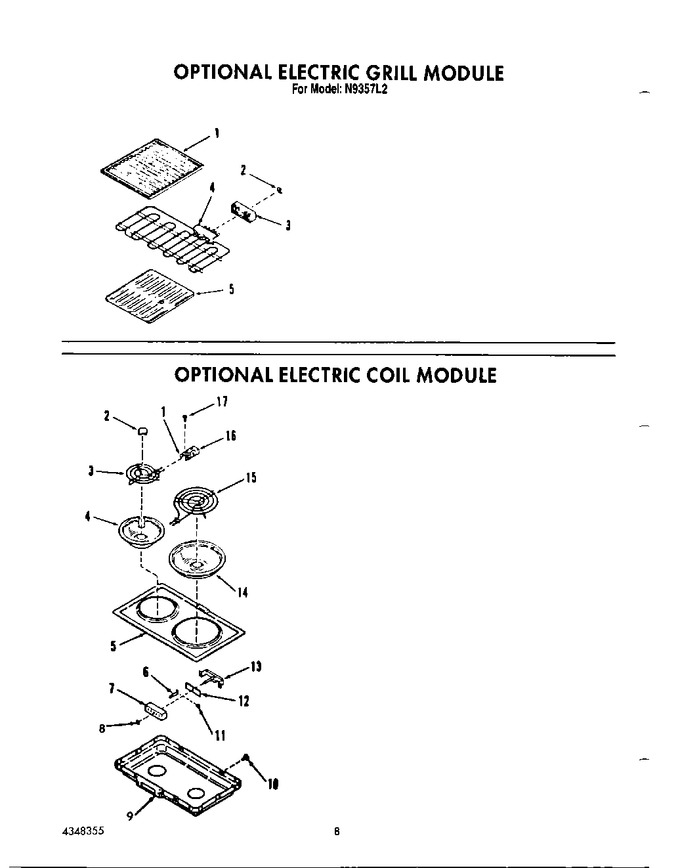

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP4332752 | Clip, Terminal Block (2) (Replaces: 4332752) |
|
$ 7.18 | |||||
| 1 | 4335911 | Grate-grill (2) |
|
- | |||||
| 2 | 4332691 | Medallion (2) |
|
- | |||||
| 2 | 4336259 | Clip - Push On |
|
- | |||||
| 3 | 4336252 | Block, Terminal |
|
- | |||||
| 3 | WPY04100165 | 6`` Surface Element (Replaces: 4334592) |
|
Immediately | $ 56.92 | ||||
| 4 | 4336912 | Element, Grill (240 Volt) |
|
- | |||||
| 4 | 4336913 | Element-grill (208 Volt (optional)) |
|
- | |||||
| 4 | WPW10196406 | Bowl, 6`` (Replaces: 4327709) |
|
Immediately | $ 12.05 | ||||
| 5 | 4335980 | Top, Main (chrome) |
|
- | |||||
| 5 | 4336807 | Grid, (2) |
|
- | |||||
| 5 | 4336458 | Top, Main (almond) |
|
- | |||||
| 6 | 4330875 | Pin, Terminal (4) |
|
- | |||||
| 7 | 4335910 | Block, Terminal |
|
- | |||||
| 8 | 4323399 | Nut, Speed |
|
- | |||||
| 9 | 4336605 | Pan, Module |
|
- | |||||
| 10 | 4324647 | Screw, No.8-32 X 3/8 |
|
- | |||||
| 11 | 4323479 | Screw No.8-32 X 3/16 |
|
- | |||||
| 12 | 4330873 | Insulator |
|
- | |||||
| 13 | 4335944 | Bracket-terminal |
|
- | |||||
| 14 | W10196405RW | Bowl 8`` (Replaces: 4329225) |
|
Immediately | $ 19.64 | ||||
| 15 | WP3177565 | 8`` Surface Element (Replaces: 4334589) |
|
$ 164.32 | |||||
| 16 | 330031 | Terminal Block (Replaces: 4342636) |
|
Immediately | $ 17.93 | ||||
| 17 | 4335922 | Wire - Brown 7`` (2) |
|
- | |||||
| 17 | 4327985 | Screw, No.7-32 X 5/16 |
|
- | |||||
| 17 | 4335921 | Wire - Blue 12`` (2) |
|
- |
