Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 4326551 Screw, No.10-24 X 1/4 Appelez-nous -
2 4331536 Spring Appelez-nous -
3 4336705 Box, Mounting Appelez-nous -
4 4336048 Screw 6-20x3/8 Appelez-nous -
5 WP681414 Screw 10-16x7/16   (Replaces: 4335248) In-Stock Immediately $ 7.62

6 4323206 Washer Appelez-nous -
7 4337490 Lock Assembly, (inc`s Illus. No.2) Appelez-nous -
8 4336811 Handle, Lock Appelez-nous -
9 4335705 Clip Appelez-nous -
10 4337568 Knob, Lock Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

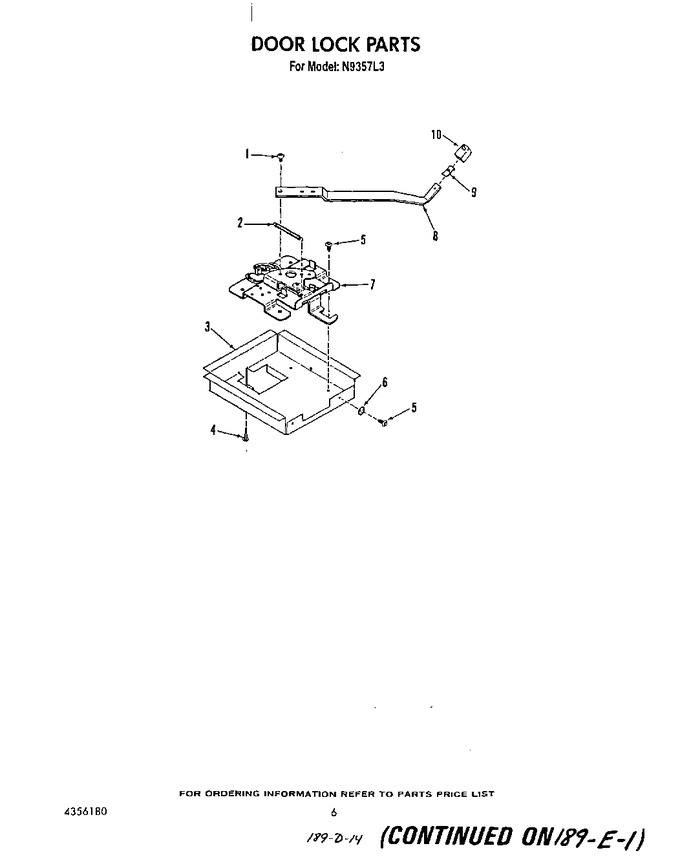

Diagram for N9357L3
