Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 4336941 Harness, Wire (wire, Control) Appelez-nous -
1 4337204 Harness, Wire (wire, Main - Left) Appelez-nous -
1 4337289 Harness, Wire (main - Right) Appelez-nous -
1 4337929 Harness, Wire (wire, Sensor) Appelez-nous -
1 4338245 Harness, Wire (wire, Relay) Appelez-nous -
1 4335339 Screw 6-32x3/8 Appelez-nous -
2 4325035 Terminal, Flag Appelez-nous -
2 4336262 Cap, End Appelez-nous -
3 WP285432 Terminal, Faston (1/4``)   (Replaces: 4325037) Special Order $ 7.34

3 4325036 Terminal, Faston (3/16``) Appelez-nous -
3 4337259 Backsplash Appelez-nous -
4 4337930 Fuse, Thermal Appelez-nous -
4 4336258 Support, Backsplash Appelez-nous -
5 WP681414 Screw 10-16x7/16   (Replaces: 4335248) In-Stock Immediately $ 7.62

4348192 Xinstallation Guide Appelez-nous -
4348193 Xuse & Care Manual Appelez-nous -
4356180A Xrepair Parts List Appelez-nous -

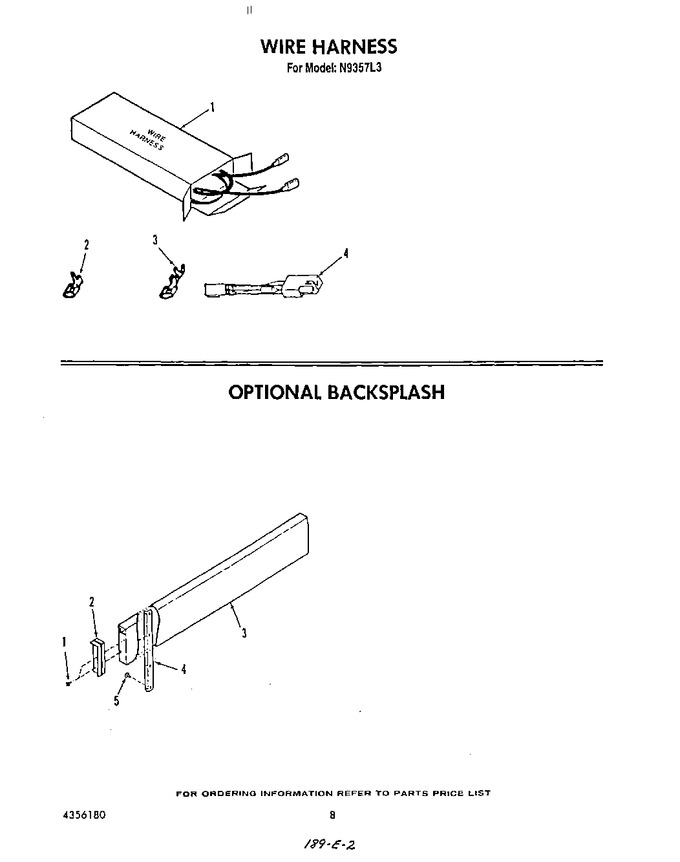

    View Diagram in Separate Window     Print Icon   Print Part List
