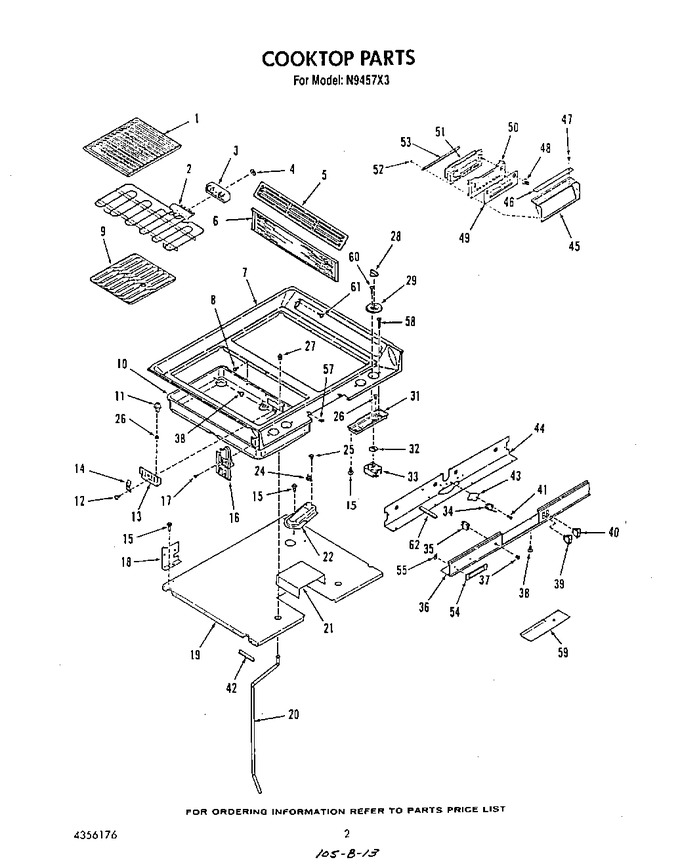

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4343214		Grill, Grate (2)		Appelez-nous	-
2	4342621		Element, Grill (208 Volt (opt.))		Appelez-nous	-
2	4343058		Element, Grill (240 Volt)		Appelez-nous	-
3	4336252		Block, Terminal		Appelez-nous	-
4	4336259		Clip		Appelez-nous	-
5	4335907		Grill, Air Intake		Appelez-nous	-
6	4337454		Air Filter		Appelez-nous	-
7	4342623		Cooktop, Main (chrome)		Appelez-nous	-
7	4342622		Cooktop, Main (almond)		Appelez-nous	-
8	4335339		Screw No.6-20x3/8		Appelez-nous	-
9	4336807		Grid, (2)		Appelez-nous	-
10	4337016		Grease Well (left)		Appelez-nous	-
10	4337017		Grease Well (right)		Appelez-nous	-
11	4337042		Terminal		Appelez-nous	-
12	4324647		Screw, No.8-32 X 3/8		Appelez-nous	-
13	4337041		Block, Terminal		Appelez-nous	-
14	4330868		Clamp, Terminal Block		Appelez-nous	-
15	W10850756		Screw, No.10-16 X 7/16   (Replaces: 4343086)				$ 7.38
16	4336816		End Cap (right)		Appelez-nous	-
16	4336817		End Cap (left)		Appelez-nous	-
17	4337167		Screw, No.10 X 5/8		Appelez-nous	-
18	4336955		Rear Filler (left)		Appelez-nous	-
18	4336954		Rear Filler (right)		Appelez-nous	-
19	4338186		Retainer, Insul.		Appelez-nous	-
20	4336823		Tube, Grease		Appelez-nous	-
21	4337081		Cover, Latch		Appelez-nous	-
22	4338185		Flue Duct		Appelez-nous	-
24	4337008		Switch, Limit		Appelez-nous	-
25	4338182		Screw, No.6-20 X 5/16		Appelez-nous	-
26	4350281		Screw, No.8-32 X 1/4		Appelez-nous	-
27	4336824		Fitting, Tube		Appelez-nous	-
28	4342624		Knob, Infinite		Appelez-nous	-
29	4342648		Bezel, Knob (right Rear)		Appelez-nous	-
29	4342649		Bezel, Knob (left Front)		Appelez-nous	-
29	4342650		Bezel, Knob (right Front)		Appelez-nous	-
29	4342647		Bezel, Knob (left Rear)		Appelez-nous	-
31	4337775		Plate, Mounting		Appelez-nous	-
32	4325524		Seal, Control		Appelez-nous	-
33	5500-200		Switch, Infinite   (Replaces: 4337621)			Immediately	$ 54.85
34	4337377		Switch, Door Lock		Appelez-nous	-
35	4336248		Light, Indicator		Appelez-nous	-
36	4337213		Panel, Control		Appelez-nous	-
37	4336078		Lens, Ind. Light		Appelez-nous	-
38	WP308685		Screw, No.10 X1/2   (Replaces: 4335117)			Immediately	$ 7.08
39	4336220		Rocker Switch, Blower/hi-lo		Appelez-nous	-
40	4335904		Rocker Switch, Blower/oven Light		Appelez-nous	-
41	4343068		Screw, No.4 X 3/4		Appelez-nous	-
42	4335097		Spacer, Top		Appelez-nous	-
43	4335973		Insulator		Appelez-nous	-
44	4343106		Back, Control		Appelez-nous	-
45	4336815		Bezel, Clock/oven Control		Appelez-nous	-
46	4336919		Plate, Clock/oven Control		Appelez-nous	-
47	4337459		Screw, No.6-20 X 7/16		Appelez-nous	-
48	4337194		Knob, Clock/oven Control		Appelez-nous	-
49	4337075		Faceplate		Appelez-nous	-
50	4343215		Lens, Clock/oven Control		Appelez-nous	-
51	4343208		Clock/oven Control		Appelez-nous	-
52	4337582		Screw, No.6-32 X 5/16		Appelez-nous	-
53	4343122		Brace, Clock/oven Stiffener		Appelez-nous	-
54	4335903		Nameplate		Appelez-nous	-
55	4323217		Nut, Speed		Appelez-nous	-
57	4337543		Nut, Speed		Appelez-nous	-
58	4342651		Screw, No.10-32 X 3/4		Appelez-nous	-
59	4338589		Insulator, Thermal		Appelez-nous	-
60	4342656		Screw, No.8-32 X 3/8		Appelez-nous	-
61	4332521		Screw No.10-32x1/2		Appelez-nous	-
62	4356247		Radiant Elmnt.		Appelez-nous	-
62	4356253		Grill Module		Appelez-nous	-
62	4356254		Grill Module		Appelez-nous	-
62	4356255		Coil Elmnt. Module		Appelez-nous	-
62	4356256		Solid Elmnt. Module		Appelez-nous	-
62	4337340		Spacer, Control Panel		Appelez-nous	-
62	4348146		Use & Care Guide		Appelez-nous	-
62	4348319		Installation Guide		Appelez-nous	-
62	4356176		Repair Parts List Instruction Sheet-optional Modules		Appelez-nous	-
62	4343081		Backsplash Kit		Appelez-nous	-
