SELECT A DIAGRAM

Diagram for 01 - Front Cover
01 - Front Cover

Diagram for 02 - Cooktop , Lit/optional
02 - Cooktop , Lit/optional

Diagram for 03 - Oven
03 - Oven

Diagram for 04 - Blower
04 - Blower

Diagram for 05 - Door Lock
05 - Door Lock

Diagram for 06 - Oven Door
06 - Oven Door

Diagram for 07 - Griddle , Griddle/grill Cover
07 - Griddle , Griddle/grill Cover

Diagram for 08 - Electric Grill Module , Electric
08 - Electric Grill Module , Electric

Diagram for 09 - Radiant Element Module , Solid Element
09 - Radiant Element Module , Solid Element


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 4336453 Griddle Appelez-nous -
1 4336005 Cover Appelez-nous -
1 4338182 Screw, No.6-20 X 5/16 Appelez-nous -
2 4336262 Cap, End Appelez-nous -
2 4336006 Handle, (left/right) Appelez-nous -
3 4336235 Screw, No. 6 X 1/4 Appelez-nous -
3 4343080 Backsplash Appelez-nous -
4 4343079 Support-backsplash Appelez-nous -
5 W10850756 Screw, No.10-16 X 7/16   (Replaces: 4343086) Special Order $ 7.38


    View Diagram in Separate Window     Print Icon   Print Part List

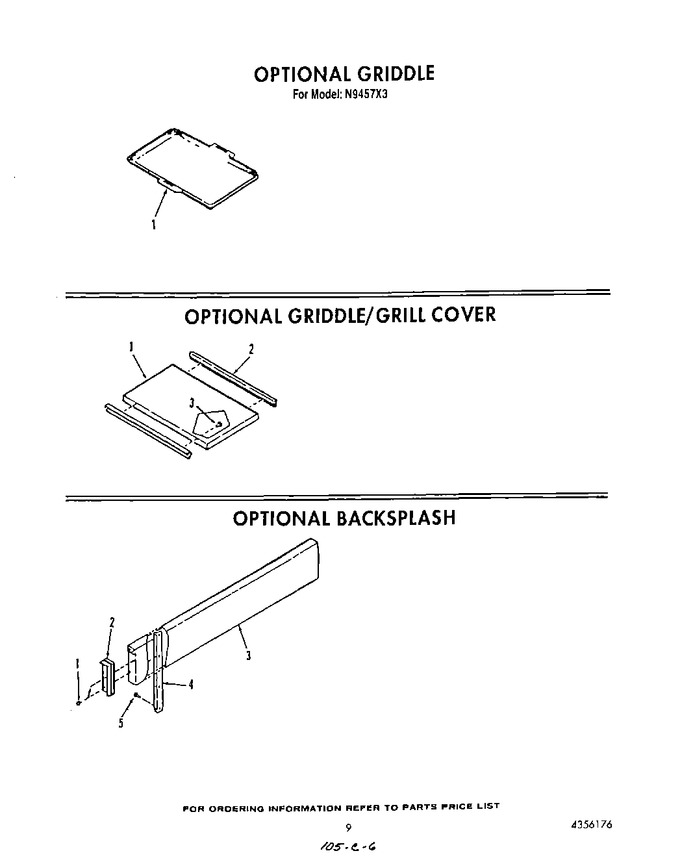

Diagram for N9457^3
