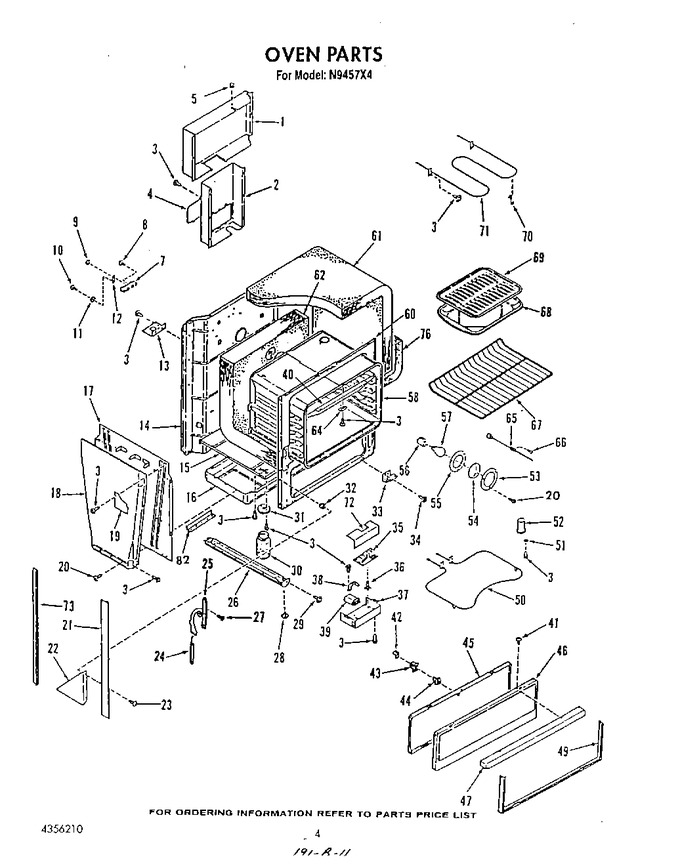

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4338359		Cover, Wire Rear - Upper		Appelez-nous	-
2	4336825		Wire Cover, Lower Rear		Appelez-nous	-
3	W10850756		Screw, No.10-16 X 7/16   (Replaces: 4343086)				$ 7.38
4	4336826		Plate, Access		Appelez-nous	-
5	4342630		Button, Plug		Appelez-nous	-
7	WP8203546		Block, Terminal   (Replaces: 4326821)			Immediately	$ 27.12
8	4331572		Screw, No.10-32x1		Appelez-nous	-
9	WP776338		Hex Nut No.10-32   (Replaces: 4338637)				$ 18.29
10	4331573		Screw No.10-32x7/16		Appelez-nous	-
11	4327921		Washer		Appelez-nous	-
12	4335219		Strap, Ground		Appelez-nous	-
13	4335223		Plate, Mounting		Appelez-nous	-
14	4338228		Back, Main		Appelez-nous	-
15	4337573		Retainer, Bottom Insulation		Appelez-nous	-
16	4336691		Plenum		Appelez-nous	-
17	4337266		Retainer, Side Insulation		Appelez-nous	-
18	4338053		Box, Vent		Appelez-nous	-
19	4337217		Cover, Wire		Appelez-nous	-
20	WP308685		Screw, No.10 X1/2   (Replaces: 4335117)			Immediately	$ 7.08
21	4336818		Side Trim (right)		Appelez-nous	-
21	4336819		Side Trim (left)		Appelez-nous	-
22	4338387		Corner Filler (left)		Appelez-nous	-
22	4338388		Corner Filler (right)		Appelez-nous	-
23	4331822		Screw No.8x5/8		Appelez-nous	-
24	4337386		Spring, Door (2)		Appelez-nous	-
25	4336784		Hinge-door (left)				$ 80.99
25	4336783		Hinge-door (right)				$ 44.64
26	4342828		Base W/levelers		Appelez-nous	-
27	4336631		Screw		Appelez-nous	-
28	4334834		Leg Levelers (4)		Appelez-nous	-
29	4323884		Screw, No.10-32x17/32``		Appelez-nous	-
30	WPY707869		Jar, Grease (2)   (Replaces: 4335916)				$ 64.50
31	4335900		Lid, Jar (2)		Appelez-nous	-
32	4331381		Spacer, Expansion Nut - (8)		Appelez-nous	-
33	4337416		Hinge		Appelez-nous	-
34	4332521		Screw No.10-32x1/2		Appelez-nous	-
35	4338554		Circuit Board W/relay & Transf.		Appelez-nous	-
36	4336562		Spacer, Circuit Board		Appelez-nous	-
37	4336918		Cover, Wire		Appelez-nous	-
38	4337073		Clamp, Capacitor		Appelez-nous	-
39	4337124		Capacitor		Appelez-nous	-
40	4343007		Deflector, Heat		Appelez-nous	-
41	4332521		Screw No.10-32x1/2		Appelez-nous	-
42	4337417		Bracket, Catch		Appelez-nous	-
43	4337418		Catch		Appelez-nous	-
44	4337419		Strike		Appelez-nous	-
45	4342631		Lining, Lower Door		Appelez-nous	-
46	4342632		Panel, Lower Door		Appelez-nous	-
47	4336754		Handle		Appelez-nous	-
49	4342576		Frame, Lower Door		Appelez-nous	-
50	4334928		Element, Bake (240 Volt)				$ 80.01
50	4334927		Element, Bake (208 Volt (opt.))		Appelez-nous	-
51	4337453		Washer		Appelez-nous	-
52	4343010		Tube, Vent		Appelez-nous	-
53	4324482		Retainer, Light Lens		Appelez-nous	-
54	4324415		Lens, Light		Appelez-nous	-
55	4324481		Seal, Lens		Appelez-nous	-
56	W10856866		Holder, Lamp   (Replaces: 4343216)				$ 6.80
57	8009		Lamp   (Replaces: 4338591)			Immediately	$ 16.80
58	4337959		Body, Oven		Appelez-nous	-
60	4337446		Frame, Front		Appelez-nous	-
61	4336990		Insulation, Top & Sides		Appelez-nous	-
62	4353609		Insulation, Bottom & Back		Appelez-nous	-
64	4329206		Cover		Appelez-nous	-
65	4337170		Sensor		Appelez-nous	-
66	4324445		Screw		Appelez-nous	-
67	4334809		Rack, Oven (2)				$ 54.59
68	4396923		Pan, Broiler   (Replaces: 4336602)			Immediately	$ 54.64
69	4396923		Broiler, Grid Pan   (Replaces: 4334897)			Immediately	$ 54.64
70	4337249		Support, Broil Element		Appelez-nous	-
71	WP4334925		Element, Broil (240 Volt)   (Replaces: 4337191)				$ 139.19
71	WP4334925		Element, Broil (208 Volt (opt))   (Replaces: 4354775)				$ 139.19
72	4337413		Shield, Wire		Appelez-nous	-
73	4337215		Extension, Trim		Appelez-nous	-
76	4354262		Insulation		Appelez-nous	-
82	4325031		Eyelet Terminal		Appelez-nous	-
82	4325033		Flag Terminal		Appelez-nous	-
82	WP285432		Faston Terminal   (Replaces: 4325037)				$ 7.34
82	4337929		Sensor		Appelez-nous	-
82	4338515		Thermal Fuse		Appelez-nous	-
82	4338498		Support, Main Back		Appelez-nous	-
82	4336941		Control		Appelez-nous	-
