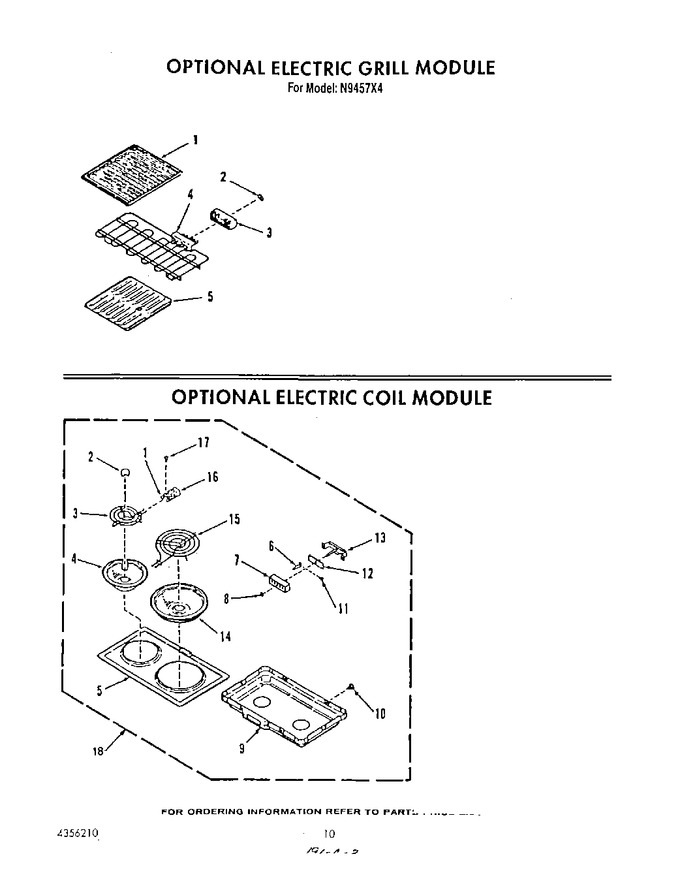

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP4332752 | Clip, Term. Block (Replaces: 4343188) |
|
$ 7.18 | |||||
| 1 | 4335911 | Grate-grill (2) |
|
- | |||||
| 2 | 4336259 | Clip - Push On |
|
- | |||||
| 2 | 4332691 | Medallion (2) |
|
- | |||||
| 3 | 4336252 | Block, Terminal |
|
- | |||||
| 3 | WPY04100165 | 6`` Surface Element (Replaces: 4334592) |
|
Immediately | $ 56.92 | ||||
| 4 | 4343058 | Element, Grill (240 Volt) |
|
- | |||||
| 4 | 4342621 | Grill Element (208 Volt (opt.)) |
|
- | |||||
| 4 | WPW10196406 | 6`` Bowl (Replaces: 4352552) |
|
Immediately | $ 12.05 | ||||
| 5 | 4335980 | Main Top (chrome) |
|
- | |||||
| 5 | 4336458 | Main Top (almond) |
|
- | |||||
| 5 | 4336807 | Grid, (2) |
|
- | |||||
| 6 | 4330875 | Pin, Terminal (4) |
|
- | |||||
| 7 | 4335910 | Terminal Block |
|
- | |||||
| 8 | 4323399 | Speed Nut |
|
- | |||||
| 9 | 4336605 | Pan, Module |
|
- | |||||
| 10 | 4331822 | Screw No.8x5/8 |
|
- | |||||
| 11 | 4323479 | Screw No.8-32 X 3/16 |
|
- | |||||
| 12 | 4330873 | Insulator |
|
- | |||||
| 13 | 4335944 | Bracket - Term. |
|
- | |||||
| 14 | W10196405RW | 8`` Bowl (Replaces: 4352553) |
|
Immediately | $ 19.64 | ||||
| 15 | WP3177565 | 8`` Surface Element (Replaces: 4334589) |
|
$ 164.32 | |||||
| 16 | 4343209 | Terminal Block |
|
- | |||||
| 17 | 4327985 | Screw, No.7-32 X 5/16 |
|
- | |||||
| 18 | 4347211 | Complete Module (almond) |
|
- | |||||
| 18 | 4347212 | Complete Module (chrome) |
|
- |
