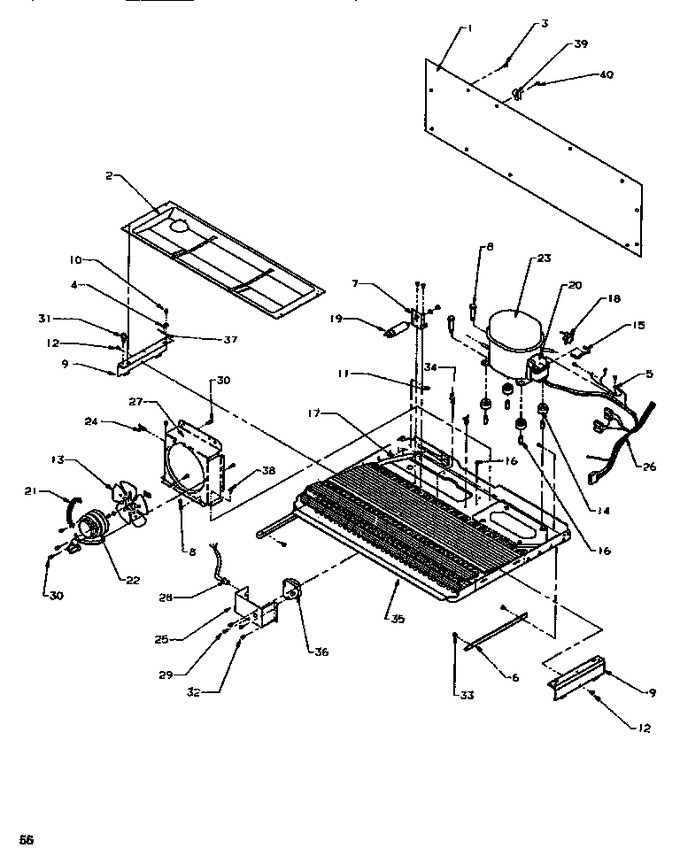

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10559905		Assy, Mach Comp Back		Appelez-nous	-
2	10507901		Pan, Drain		Appelez-nous	-
3	M0219704		Screw		Appelez-nous	-
4	M0585601		Tab, Wire Tie		Appelez-nous	-
5	M0272803		Lock Washer		Appelez-nous	-
6	10508001		Support, Mach Comp.		Appelez-nous	-
7	B5696108		Brkt, Line Filter		Appelez-nous	-
8	M0221523		Screw, Shldr		Appelez-nous	-
9	10495701		Bracket, Drain Pan Mtg.		Appelez-nous	-
10	M0213529		Screw		Appelez-nous	-
11	WP22002933		Screw, Sm   (Replaces: M0211357)				$ 8.06
12	A4539601		Pop Rivet		Appelez-nous	-
13	10518701		Blade, Fan		Appelez-nous	-
14	WPW10169124		Grommet, Compressor   (Replaces: 10835901)				$ 7.55
15	10899501		Clamp, Term. Cover		Appelez-nous	-
16	WP489128		Screw   (Replaces: M0253516)				$ 11.40
17	10851302		Insulation, Tube		Appelez-nous	-
18	10899601		Overload/relay		Appelez-nous	-
19	W10848274		Capacitor   (Replaces: 10958301)				$ 185.85
20	10899701		Cover, Terminal		Appelez-nous	-
21	10496501		Kit,shroud/brkt Sound		Appelez-nous	-
22	D7846901		Motor-condenser		Appelez-nous	-
23	W10309997		Compressor (220/230 Vac 50hz)   (Replaces: Y10740301)				$ 583.93
24	M0585403		Tie Wire		Appelez-nous	-
25	10877001		Enclosure, Defr Timer		Appelez-nous	-
26	10959401		Harness, M.c.		Appelez-nous	-
27	10602404		Kit,shroud/brkt Sound		Appelez-nous	-
28	A3293505		Bushing-snap		Appelez-nous	-
29	M0218118		Screw		Appelez-nous	-
30	M0223803		Screw		Appelez-nous	-
31	M0118703		Clip, Guide		Appelez-nous	-
32	WP489464		Screw   (Replaces: M0211217)			Immediately	$ 8.38
33	WP3400094		Screw   (Replaces: M0253942)				$ 9.26
34	DC61-40081A		Tie, Wire   (Replaces: M0585401)				$ 0.94
35	10544108		Assy,cond/pan-e Ct		Appelez-nous	-
36	10129307		Kit, Defrost Timer (230 Vac)		Appelez-nous	-
37	WPW10339879		Tie   (Replaces: M0321202)				$ 8.30
38	WP90767		Screw   (Replaces: M0216716)			Immediately	$ 8.25
39	M0108001		Clamp, Tube		Appelez-nous	-
40	67006425		Screw-sm No.8-1/2lg   (Replaces: M0211017)			Immediately	$ 7.30
