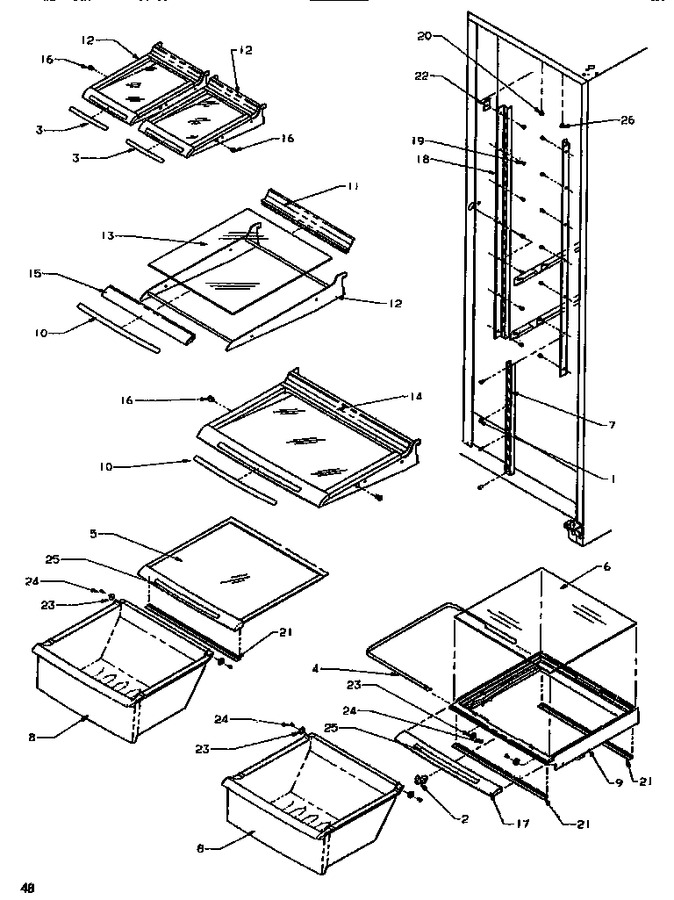

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | D7860603 | Slide |
|
- | |||||
| 2 | 10038402 | Knob - Crisper |
|
- | |||||
| 2 | 10852501 | Slide, Crisper/deli |
|
- | |||||
| 4 | 10882901 | Band, Crisper |
|
- | |||||
| 5 | 10370027 | Glass Shelf |
|
- | |||||
| 6 | 10370028 | Glass, Shelf |
|
- | |||||
| 8 | 10471816 | Pan, Crisper |
|
- | |||||
| 8 | 10469019 | Pan, Crisper |
|
- | |||||
| 9 | 10469608 | Frame, Crisper |
|
- | |||||
| 9 | 10469603 | Frame, Crisper |
|
- | |||||
| 11 | 10946005 | Extr-rear Shelf |
|
- | |||||
| 12 | 10875302 | Frame, Glass Shelf |
|
- | |||||
| 13 | Y10370071 | Glass, Shelf |
|
- | |||||
| 15 | 10459910 | Extr., Shelf Frt |
|
- | |||||
| 16 | 10875101 | Stop, Shelf |
|
- | |||||
| 17 | 10873904 | Trim, Crisper Frt |
|
- | |||||
| 17 | 10873905 | Trim, Crisper Frt |
|
- | |||||
| 18 | D7789809 | Ladder, Cantilever |
|
- | |||||
| 18 | D7789808 | Ladder, Cantilever |
|
- | |||||
| 19 | WP90767 | Screw, Sm (Replaces: M0211016) |
|
Immediately | $ 8.25 | ||||
| 20 | M0580007 | Grommet, Screw |
|
- | |||||
| 21 | 10523401 | Seal, Crisper Front |
|
- | |||||
| 21 | D7718406 | Seal, Meat Pan |
|
- | |||||
| 22 | C8992301 | Bracket |
|
- | |||||
| 26 | M0581001 | Grommet, Screw |
|
- | |||||
| NI | 10880702 | Assy, Glass Shelf |
|
- | |||||
| NI | 10883003 | Ass`y, Crisper Frame |
|
- | |||||
| NI | 10883004 | Assy, Crisp Frame |
|
- |
