SELECT A DIAGRAM

01 - Cabinet Back


02 - Cabinet Parts

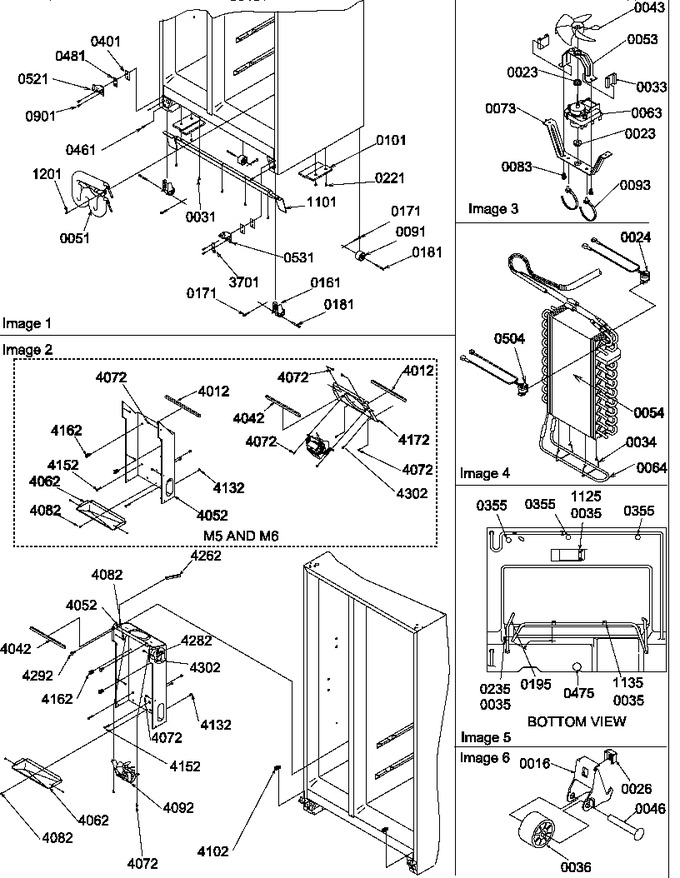

03 - Drain System, Rollers, And Evap Assy


04 - Fz Door


05 - Fz Shelves And Light


06 - Ice & Water Cavity & Elec Brkt Assy


07 - Ice Bucket Auger, Im Assy, & Im Parts


08 - Ice Maker/control Assy


09 - Machine Compartment


10 - Ref Door And Accessories


11 - Ref/fz Shelves, Lights, And Hinges


12 - Shelves, Deli, Crisper Assy & Toe Grille


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	C8742401		Assy, Roller Bracket		Appelez-nous	-
23	WP2264462		Grommet   (Replaces: A1017202)			Immediately	$ 46.17
24	12017817		Kit, Defrost Thermostat		Appelez-nous	-
26	M0286708		Nut, Speed				$ 47.85
31	WP489069		Screw   (Replaces: M0220617)			Immediately	$ 8.40
33	A1047901		Shim		Appelez-nous	-
34	W11673433		Clip, Evap Heater   (Replaces: 10428101)				$ 148.18
35	WP489069		Screw   (Replaces: M0220617)			Immediately	$ 8.40
36	WP10450603		Roller   (Replaces: 10450602)				$ 8.27
43	12033101		Fan-evap				$ 35.30
46	M1205302		Rivet				$ 5.85
51	10988502		Tank-water		Appelez-nous	-
53	C8881301		Brkt Evap Fan		Appelez-nous	-
54	R0170065		Assy,low Side		Appelez-nous	-
63	WP10513804		Motor, Evap.   (Replaces: C8891604)				$ 256.76
64	WP10428406		Heater, Evap. (230 Vac)   (Replaces: 10428406)				$ 100.32
73	D7767705		Brkt, Mtr Shroud		Appelez-nous	-
83	WP90767		Screw, Sm   (Replaces: M0224416)			Immediately	$ 8.25
91	WP10450603		Roller   (Replaces: 10450602)				$ 8.27
93	M0322202		Tie Wire		Appelez-nous	-
101	10508001		Support, Mach Comp.		Appelez-nous	-
161	C8956101		Assy, Roller Bracket		Appelez-nous	-
171	M1200004		Cotter Pin K		Appelez-nous	-
181	M1200202		Pin K		Appelez-nous	-
195	10505101		Tube, Drain		Appelez-nous	-
221	WP3400094		Screw   (Replaces: M0253942)				$ 9.26
235	M0102303		Clamp		Appelez-nous	-
355	A3080001		Plug, Button (blk)		Appelez-nous	-
401	12146701		Shim-bot Hinge		Appelez-nous	-
461	M0204339		Screw Bolt K		Appelez-nous	-
475	A3076901		Plug-button				$ 5.70
481	12146702		Shim-bot Hinge		Appelez-nous	-
504	R0161085		Tstat-safety   (Replaces: 12017819)				$ 124.18
521	10496104		Kit,hinge Lh Btm(b)		Appelez-nous	-
531	10496112		Kit,hinge Rh Btm(b)		Appelez-nous	-
901	WP67006715		Screw   (Replaces: M0233847)				$ 7.55
1101	10508104		Baffle, M.c. Air		Appelez-nous	-
1125	10876901		Brkt, Defrost Timer		Appelez-nous	-
1135	M0108001		Clamp, Tube		Appelez-nous	-
1201	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
4042	A3189362		Gasket, Foam		Appelez-nous	-
4052	D7865812		Evap. Shield		Appelez-nous	-
4062	D7850202		Drip Tray Pnt.		Appelez-nous	-
4072	WP90767		Screw, Sm   (Replaces: M0224416)			Immediately	$ 8.25
4082	10098801		Rivet		Appelez-nous	-
4092	10887003		Evap Fn Mtr Ass`y		Appelez-nous	-
4102	R0181181		Kit,dr Closure   (Replaces: 12113502)			Immediately	$ 7.55
4132	M0580002		Grommet A		Appelez-nous	-
4152	10527401		Clip, Evap		Appelez-nous	-
4162	10623003		Clip, Evaporator		Appelez-nous	-
4282	M0272803		Lock Washer		Appelez-nous	-
4292	M0580003		Grommet		Appelez-nous	-
4302	WP489399		Screw, Se   (Replaces: M0232929)				$ 7.30

    View Diagram in Separate Window       Print Part List
