01 - Cabinet Back


02 - Cabinet Parts


03 - Drain System, Rollers, And Evap Assy


04 - Fz Door


05 - Fz Shelves And Light


06 - Ice & Water Cavity & Elec Brkt Assy


07 - Ice Bucket Auger, Im Assy, & Im Parts


08 - Ice Maker/control Assy


09 - Machine Compartment


10 - Ref Door And Accessories


11 - Ref/fz Shelves, Lights, And Hinges


12 - Shelves, Deli, Crisper Assy & Toe Grille

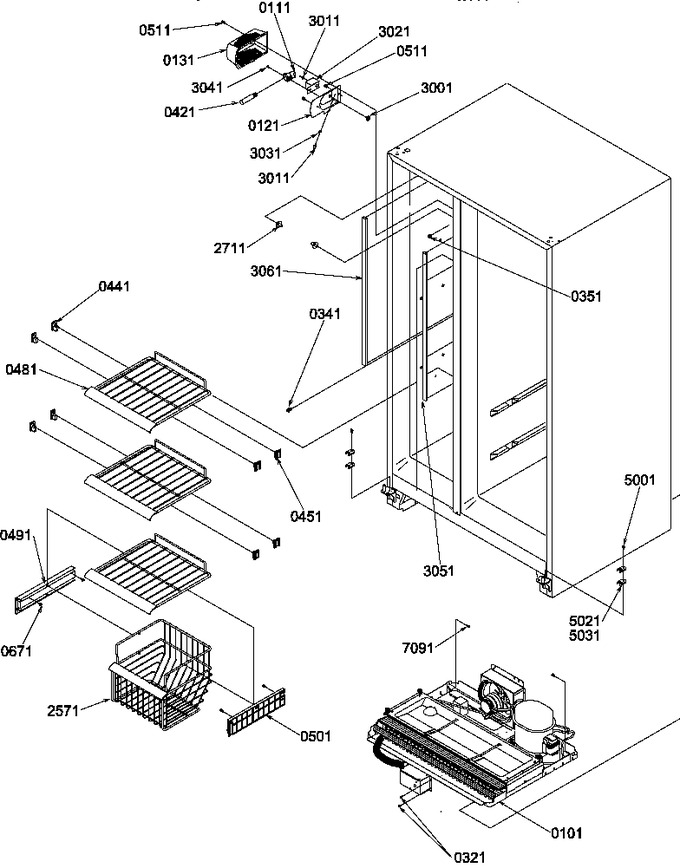

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
101	Y00000000		See Note Mc Assy -- (see Pages 24 & 25 For Assy Breakdown)		Appelez-nous	-
111	D7845102		Socket, Lamp		Appelez-nous	-
121	D7845204		Plate - Lt Socket		Appelez-nous	-
131	D7786602		Shield, Light		Appelez-nous	-
321	67006425		Screw, Sm   (Replaces: M0238616)			Immediately	$ 7.30
341	M0322202		Tie Wire		Appelez-nous	-
351	M0580007		Grommet, Screw		Appelez-nous	-
421	M0360402		Light Bulb (230/240 Vac)		Appelez-nous	-
441	12015002		Support, Shelf (lt)				$ 7.38
451	WP10941102		Support, Shelf (rt)				$ 11.81
481	12012603		Shelf, Stat. Freezer		Appelez-nous	-
491	12013001		Rail, L. Dbl Shelf		Appelez-nous	-
501	10991801		Rail, R Double		Appelez-nous	-
511	67006425		Screw, Sm   (Replaces: M0238616)			Immediately	$ 7.30
671	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
2571	12012003		Basket, Freezer		Appelez-nous	-
2711	M0560005		Support		Appelez-nous	-
3001	A4554813		Snap Bushing		Appelez-nous	-
3011	A4539626		Pop Rivet		Appelez-nous	-
3021	D7844902		Socket Cover		Appelez-nous	-
3031	M0320905		Terminal Ground A		Appelez-nous	-
3041	M0213129		Screw		Appelez-nous	-
3051	A3189347		Gasket		Appelez-nous	-
3061	A3189346		Gasket		Appelez-nous	-
5001	W11227370		Screw, Lock Brake Mounting   (Replaces: M0220418)			Immediately	$ 14.91
5021	B8387703		Shim, Door Closure		Appelez-nous	-
5031	WP67005716		Shim, Dr Closure (blk)   (Replaces: B8387704)				$ 7.83
7091	WP22002933		Screw, Sm   (Replaces: M0211357)				$ 8.06
