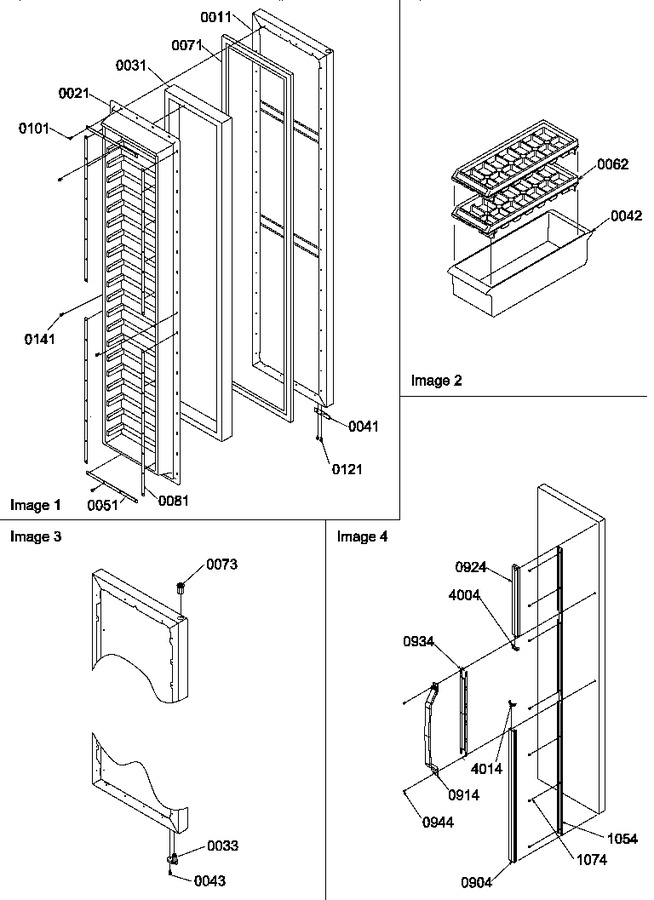

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	10881501L		Assy Frz Dr Fm		Appelez-nous	-
21	10522001		Liner, Frz Door (conv.)		Appelez-nous	-
31	876370		Insulation Bott (1= 1ft)   (Replaces: B0523588)				$ 243.14
33	R0181181		Closure, Door (blk)   (Replaces: 12113204)			Immediately	$ 7.55
41	C8972406		Stop, L Door		Appelez-nous	-
42	10423129		Bin-utility		Appelez-nous	-
43	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
51	C8982801		Retainer, Door Liner		Appelez-nous	-
62	WP841180A		Tray, Ice   (Replaces: D7725401)			Immediately	$ 47.84
71	10359709		Gasket (w Frz Dr)		Appelez-nous	-
73	10961001		Bushing, Door (wht)		Appelez-nous	-
81	D7828601		Retainer, Door Liner		Appelez-nous	-
101	M0219730		Screw				$ 7.65
121	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
141	M0226705		Screw, Shoulder		Appelez-nous	-
904	10810509		Trim, Bottom Door		Appelez-nous	-
914	12139305		Handle, Door (almond)		Appelez-nous	-
924	10810309		Trim-l Top Fz Dr		Appelez-nous	-
934	10810402		Trim, L Ctr Door		Appelez-nous	-
944	R9800670		Screw, Tf   (Replaces: M0238731)				$ 10.58
1054	10852213		Retainer-fz Trim		Appelez-nous	-
1074	M0216517		Screw		Appelez-nous	-
4004	10953113		Insert, Door Trim		Appelez-nous	-
4014	10953114		Insert, Trim (almond)		Appelez-nous	-
