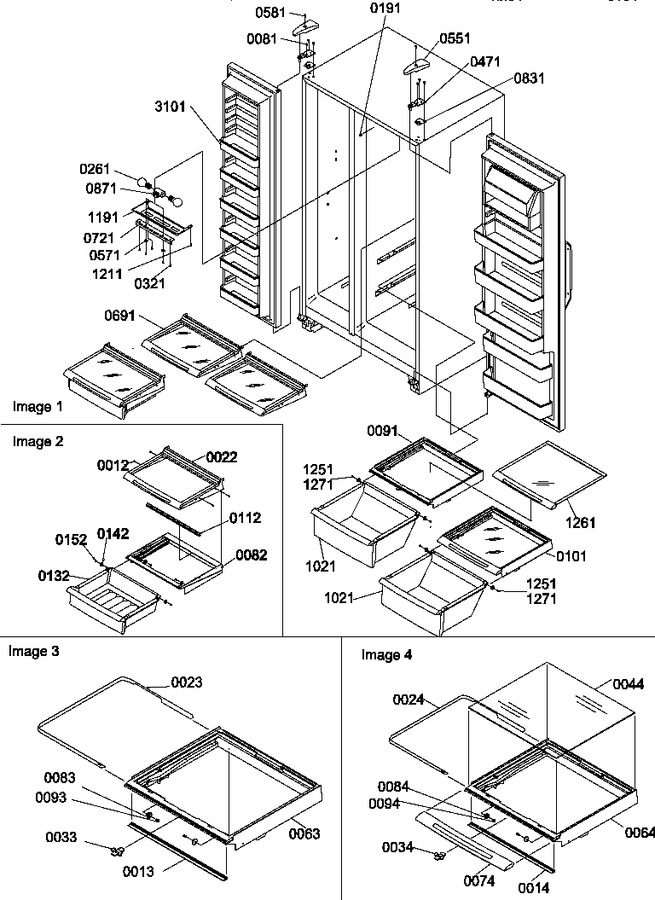

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	M0213129		Screw		Appelez-nous	-
13	10968801		Seal-crisp Front		Appelez-nous	-
14	10968801		Seal-crisp Front		Appelez-nous	-
22	10809603		Shelf-full Sta		Appelez-nous	-
23	10882701		Band, Crisper		Appelez-nous	-
24	10882701		Band, Crisper		Appelez-nous	-
33	10852501		Slide, Crisper/deli		Appelez-nous	-
34	10852501		Slide, Crisper/deli		Appelez-nous	-
44	Y10370066		Glass, Shelf		Appelez-nous	-
63	10782901		Frame,crisper		Appelez-nous	-
64	10782901		Frame,crisper		Appelez-nous	-
74	12113003		Trim-crisper Fr		Appelez-nous	-
81	R9800670		Screw, Tf   (Replaces: M0238731)				$ 10.58
82	10783803		Frame, Deli		Appelez-nous	-
83	10481001		Roller, Pan				$ 10.99
84	10481001		Roller, Pan				$ 10.99
91	10882801		Assy, Crisper Frame		Appelez-nous	-
93	67006692		Screw, Shoulder   (Replaces: M0238105)				$ 10.79
94	67006692		Screw, Shoulder   (Replaces: M0238105)				$ 10.79
101	10882808		Assy, Crisp Frame		Appelez-nous	-
132	10784201		Pan, Deli		Appelez-nous	-
142	10481001		Roller, Pan				$ 10.99
152	67006692		Screw, Shoulder   (Replaces: M0238105)				$ 10.79
191	M0580007		Grommet, Screw		Appelez-nous	-
261	40A15		Bulb, Light (40 Watt)   (Replaces: A0282803)			Immediately	$ 1.98
321	67006425		Screw, Sm   (Replaces: M0238616)			Immediately	$ 7.30
471	12077312		Hinge, Top (e-ct)		Appelez-nous	-
551	10849407		Cover-l Hinge		Appelez-nous	-
571	M0270508		Washer		Appelez-nous	-
581	WP8281196		Screw-mach   (Replaces: M0202327)			Immediately	$ 7.55
691	10809603		Shelf-full Sta		Appelez-nous	-
721	10014716		Shield, Light		Appelez-nous	-
831	12223003		Shim, Top Hinge		Appelez-nous	-
871	12156201		Socket, Dual Lamp		Appelez-nous	-
1021	10783201		Pan,crisper		Appelez-nous	-
1191	10493202		Cover, Ref. Light		Appelez-nous	-
1211	M0238846		Screw-sm		Appelez-nous	-
1251	10481001		Roller, Pan				$ 10.99
1261	10783109		Shelf-top Crisper		Appelez-nous	-
1271	67006692		Screw, Shoulder   (Replaces: M0238105)				$ 10.79
3101	10523905		Bucket, Fz Door		Appelez-nous	-
