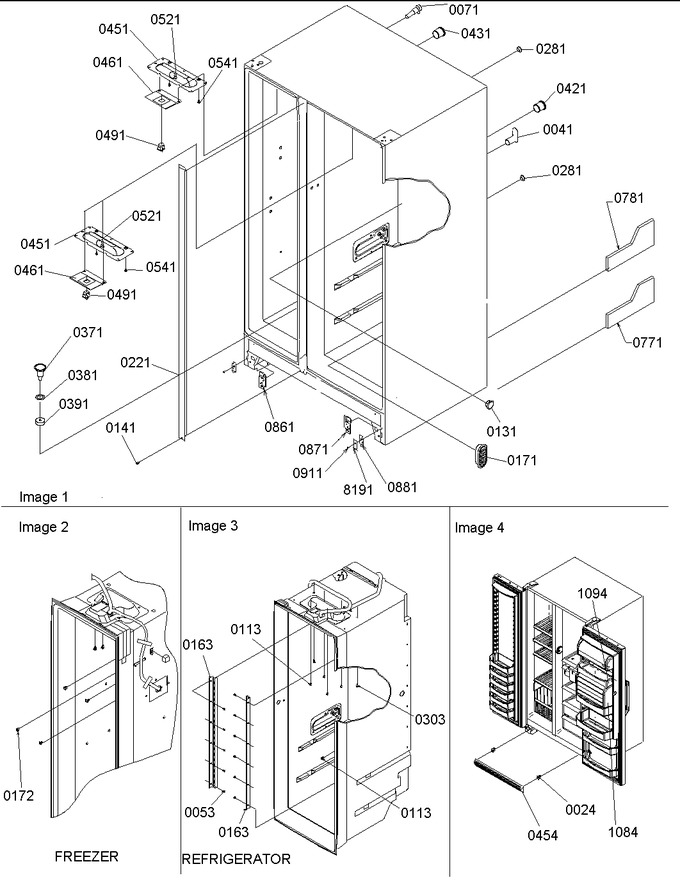

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 24 | M0117303 | Clip, Grille |
|
$ 5.65 | |||||
| 41 | C8971902 | Tunnel, Heat Ex. |
|
- | |||||
| 53 | WP90767 | Screw, Sm (Replaces: M0211016) |
|
Immediately | $ 8.25 | ||||
| 71 | 12023401Q | Assy, Fill Tube |
|
- | |||||
| 113 | M0580007 | Grommet, Screw |
|
- | |||||
| 131 | 10923101 | Tunnel, Retainer |
|
- | |||||
| 141 | 12991101 | Screw, Sm (Replaces: M0210816) |
|
$ 13.47 | |||||
| 163 | 12231603 | Ladder, Cant. |
|
- | |||||
| 171 | D7785402 | Grille-rtn Air |
|
- | |||||
| 172 | M0580007 | Grommet, Screw |
|
- | |||||
| 221 | Y00000000 | See Note |
|
- | |||||
| 281 | A3080001 | Plug, Button (blk) |
|
- | |||||
| 303 | M0581001 | Grommet, Screw |
|
- | |||||
| 371 | W10815413 | Funnel, Drain (Replaces: D7753903) |
|
Immediately | $ 51.50 | ||||
| 381 | WPM0500703 | Seal, O Ring (Replaces: M0500703) |
|
$ 11.47 | |||||
| 391 | WPB8381501 | Gasket, Drain Tube (Replaces: B8381501) |
|
$ 7.78 | |||||
| 421 | 10187501 | Tunnel Wire |
|
- | |||||
| 431 | 10187601 | Tunnel Wire |
|
- | |||||
| 451 | D7760103 | Housing, Light |
|
- | |||||
| 454 | 12321806Q | Kit, Toe Grille (blk) |
|
- | |||||
| 461 | D7297604 | Cover, Light Sw |
|
- | |||||
| 491 | W11384469 | Switch, Light (Replaces: C3680308) |
|
Immediately | $ 39.09 | ||||
| 521 | B5733302 | Clip, Ground |
|
- | |||||
| 541 | WP90767 | Screw, Sm (Replaces: M0211016) |
|
Immediately | $ 8.25 | ||||
| 771 | 10906501 | Insulation, R Foot |
|
- | |||||
| 781 | 10906503 | Insulation, L.foot |
|
- | |||||
| 861 | 12146602 | Strip-lh Bot Hinge |
|
- | |||||
| 871 | 12146601 | Strip-rh Bot Hinge |
|
- | |||||
| 881 | 12146803 | Spacer, Btm Hinge |
|
- | |||||
| 911 | B5642901 | Rivet, Pop (wht) |
|
- | |||||
| 1084 | 12424301 | Assy, Chiller |
|
- | |||||
| 1094 | 12309402 | Shelf, Snack |
|
- | |||||
| 8191 | Y12187602 | Spacer, Btm Hinge |
|
- |
