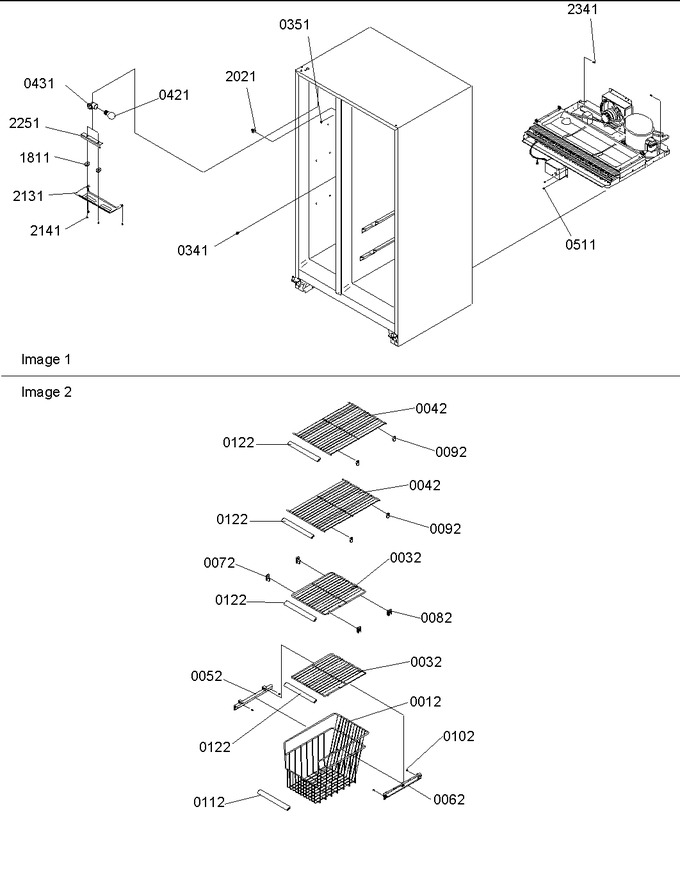

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	12314701		Basket, Frz 13``		Appelez-nous	-
32	12353305		Shelf, Sta Frz		Appelez-nous	-
42	12363402		Shelf, Sta Frz		Appelez-nous	-
52	12015101		Rail, Shelf (lt)		Appelez-nous	-
62	10972801		Rail, Shelf (rt)		Appelez-nous	-
72	12015002		Support, Shelf (lt)				$ 7.38
82	WP10941102		Support, Shelf (rt)				$ 11.81
92	C8973801		Support, Frz Shelf				$ 8.35
102	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
112	12314101		Trim, Basket/shelf		Appelez-nous	-
122	12314102		Trim, Basket/shelf		Appelez-nous	-
341	M0322202		Tie Wire		Appelez-nous	-
351	M0580007		Grommet, Screw		Appelez-nous	-
421	40A15		Bulb, Light (40 Watt)   (Replaces: A0282803)			Immediately	$ 1.98
431	C8973406		Socket, Light		Appelez-nous	-
511	67006425		Screw, Sm   (Replaces: M0238616)			Immediately	$ 7.30
1811	M0270508		Washer		Appelez-nous	-
2021	M0310305		Plug, Button (wht)		Appelez-nous	-
2131	10493302		Cover, Frz Light		Appelez-nous	-
2141	M0238846		Screw-sm		Appelez-nous	-
2251	10014715		Shield, Light		Appelez-nous	-
2341	WP22002933		Screw, Sm   (Replaces: M0211357)				$ 8.06
