02 - Oven Liner

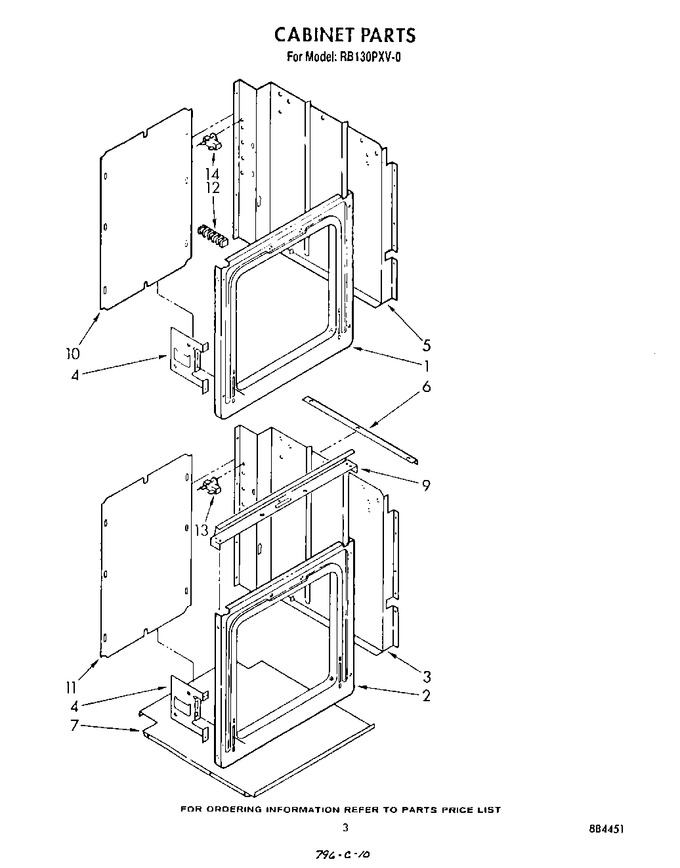

03 - Cabinet
04 - Control Panel , Literature And Optional
05 - Oven Door
06 - Wiring Harness
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 329042 | Frame, Front (upper Oven) |
|
- | |||||
| 2 | 329044 | Frame, Front (lower Oven) |
|
- | |||||
| 3 | 3147849 | Side Wrapper (2) |
|
- | |||||
| 4 | 342043 | Screw (8) |
|
- | |||||
| 4 | 257807 | Hinge Plate (4) |
|
- | |||||
| 5 | WP308685 | Screw, 10a X 1/2 (8) (Replaces: 253549) |
|
Immediately | $ 7.87 | ||||
| 5 | 3147848 | Wrapper Side (l.h.) |
|
- | |||||
| 5 | 255383 | Wrapper Side (r.h.) |
|
- | |||||
| 5 | 309133 | Screw, 8a X 5/8 (12) |
|
- | |||||
| 6 | WP308685 | Screw, 10a X 1/2 (4) (Replaces: 253549) |
|
Immediately | $ 7.87 | ||||
| 6 | 255095 | Support Angle (2) |
|
- | |||||
| 7 | 312004 | Cover (top) |
|
- | |||||
| 7 | 252687 | Cover (bottom) |
|
- | |||||
| 7 | WP308685 | Cover (screw, 10a X 1/2 (10)) (Replaces: 253549) |
|
Immediately | $ 7.87 | ||||
| 9 | 327759 | Vent Hood (24``) |
|
- | |||||
| 9 | 307748 | Screw, 10a X 1/2 (8) |
|
- | |||||
| 10 | 257977 | Rear Cover (double Oven) |
|
- | |||||
| 10 | WP308685 | Screw, 10a X 1/2 (17) (Replaces: 253549) |
|
Immediately | $ 7.87 | ||||
| 11 | 257975 | Cover, Rear |
|
- | |||||
| 12 | WP8203546 | Terminal Block (Replaces: 258076) |
|
Immediately | $ 30.13 | ||||
| 12 | WP112432 | Nut, (3) (Replaces: 112432) |
|
$ 7.96 | |||||
| 12 | W10841059 | Screw, 10-16 X 3/4 (2) (Replaces: 98445) |
|
- | |||||
| 13 | 312713 | Screw, 8-32 X 3/8 |
|
- | |||||
| 13 | 3147621 | Fuse, Thermal |
|
- | |||||
| 14 | 3147622 | Fuse, Thermal |
|
- | |||||
| 14 | 312713 | Screw, 8-32 X 3/8 |
|
- |
