Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3147844 Harness, Wire (oven) Appelez-nous -
2 328307 Conduit, Wire (supply) Appelez-nous -
3 488946 Clamp, Cable   (Replaces: 255564) Special Order $ 21.47

4 307772 Receptacle, Housing Appelez-nous -
4 166681 Screw, 10-32 X 5/16 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

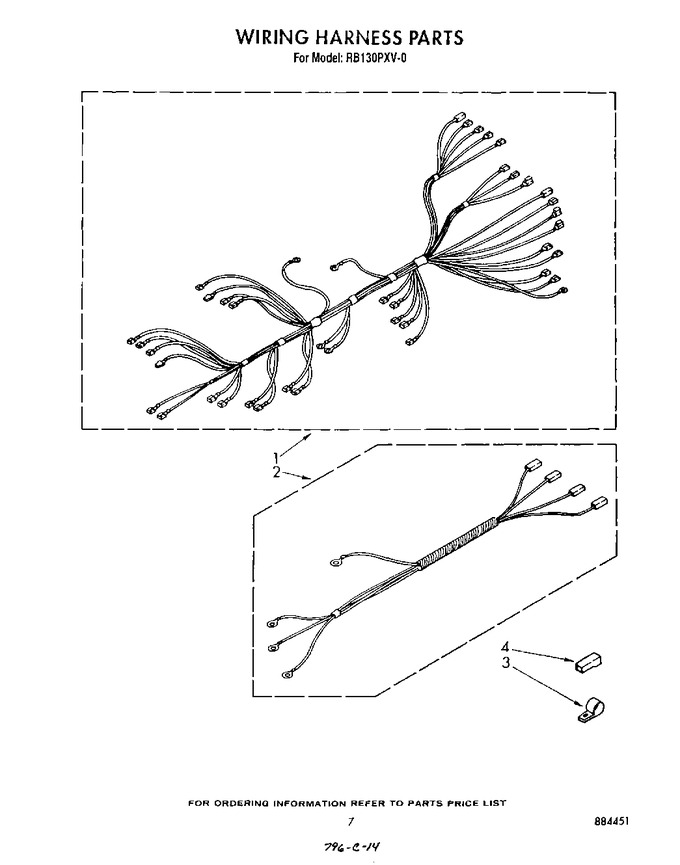

Diagram for RB130PXV0
