Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3177597 Liner, Door Appelez-nous -
1 4168863 Screw (6) Appelez-nous -
1 3178001 Screw (2) Appelez-nous -
2 3178584 Seal, Window Appelez-nous -
3 3179694 Spacer, Window Appelez-nous -
4 WP90767 Screw (2)   (Replaces: 300890) In-Stock Immediately $ 8.25

4 3177831 Latch, Strike Appelez-nous -
5 WP90767 Screw (4)   (Replaces: 300890) In-Stock Immediately $ 8.25

5 3177719 Retainer, Insulation Appelez-nous -
6 4163855 Bracket, Glass Mounting (2) Appelez-nous -
6 WP90767 Screw (4)   (Replaces: 300890) In-Stock Immediately $ 8.25

7 3179497 Glass, Door Appelez-nous -
8 4164243 Glass, Reflective Appelez-nous -
9 3180606 Frame, Door Appelez-nous -
10 3179482 Handle, Door Appelez-nous -
10 WP355515 Screw (4)   (Replaces: 355515) Special Order $ 8.48

11 3180967 Screw (3) Appelez-nous -
11 3148282 Clip, Mounting Special Order $ 8.69

13 4164235 Window Package Appelez-nous -
14 3180094 Insulation, Door Appelez-nous -
15 3181349 Shield, Door Appelez-nous -
15 WP90767 Screw (2)   (Replaces: 300890) In-Stock Immediately $ 8.25

16 3179477 Trim, Top Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

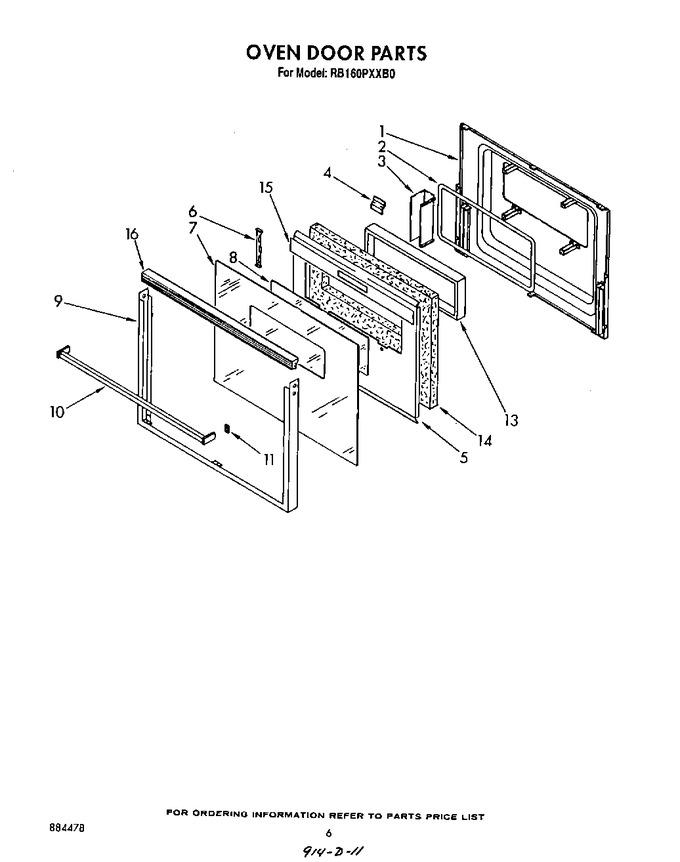

Diagram for RB160PXXB0
