Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3177456 Liner, Oven Appelez-nous -
2 3180164 Element, Broil Appelez-nous -
2 3179117 Screw (4) Appelez-nous -
3 4396923 Grill, Broiler   (Replaces: 4164251) In-Stock Immediately $ 60.71

4 4396923 Pan, Broiler   (Replaces: 3179791) In-Stock Immediately $ 60.71

5 3178098 Rack, Offset Appelez-nous -
6 3178110 Rack, Oven Appelez-nous -
7 WP661416 Element, Bake   (Replaces: 661416) Special Order $ 153.22

7 3179117 Screw (2) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

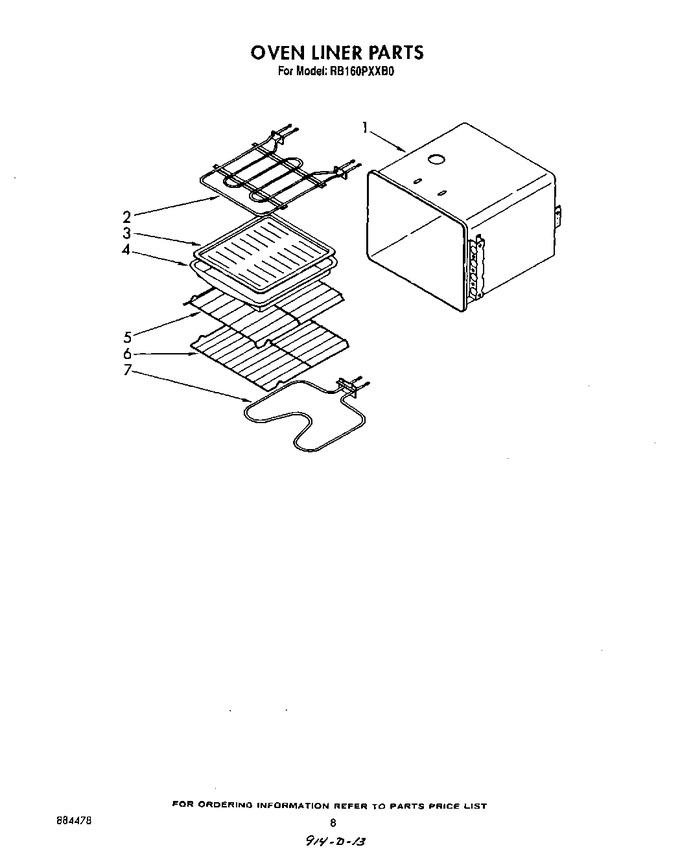

Diagram for RB160PXXB0
