SELECT A DIAGRAM
02 - Control Panel, Lit/optional
03 - Upper Oven

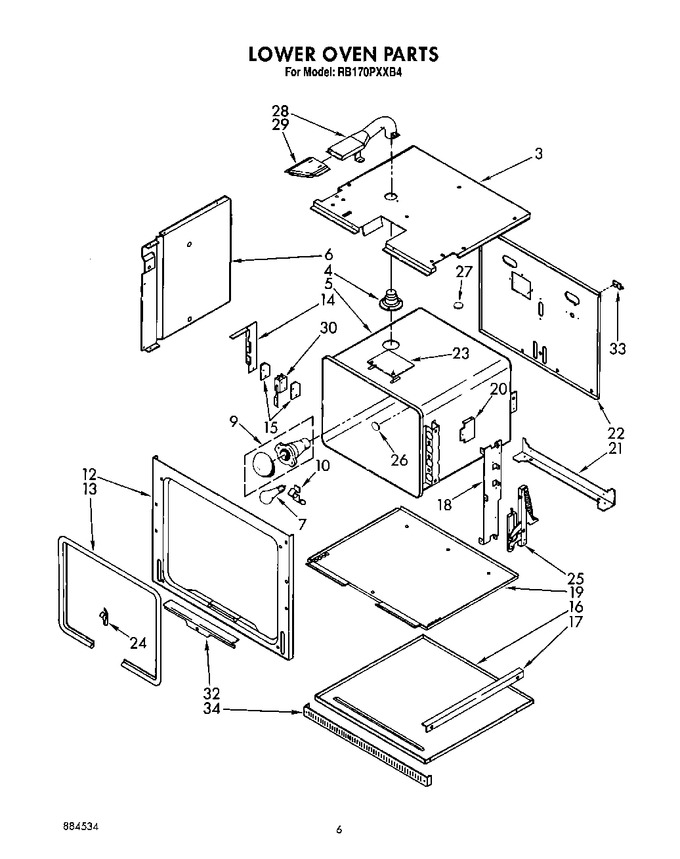

04 - Lower Oven
05 - Upper Oven Door
06 - Lower Oven Door
07 - Component Shelf And Latch
08 - Unit
09 - Wiring Harness
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 3177437 | Top, Module |
|
- | |||||
| 3 | WP90767 | Screw (8) (Replaces: 300890) |
|
Immediately | $ 8.25 | ||||
| 4 | 3181700 | Tube, Vent |
|
- | |||||
| 4 | 3179117 | Screw (3) |
|
- | |||||
| 5 | 3180803 | Liner, Oven |
|
- | |||||
| 6 | 3177572 | Side, Module (r.h. & L.h.) |
|
- | |||||
| 6 | WP90767 | Screw (4) (Replaces: 300890) |
|
Immediately | $ 8.25 | ||||
| 7 | 8009 | Bulb, Oven Light (Replaces: 311255) |
|
Immediately | $ 18.67 | ||||
| 9 | W11594027 | Oven Light Assy. (Replaces: 3150505) |
|
Immediately | $ 87.01 | ||||
| 10 | 98005642 | Clip, Bulb (2) (Replaces: 313382) |
|
Immediately | $ 87.08 | ||||
| 12 | 3177704 | Frame, Door |
|
- | |||||
| 13 | 3179814 | Seal, Door |
|
- | |||||
| 14 | WP3177991 | Screw (2) (Replaces: 3177991) |
|
Immediately | $ 7.55 | ||||
| 14 | 3177681 | Bracket, Switch |
|
- | |||||
| 15 | 3177923 | Insulator, Switch |
|
- | |||||
| 16 | 3177552 | Bottom, Oven |
|
- | |||||
| 17 | 3179220 | Rail, Support (2) |
|
- | |||||
| 17 | WP90767 | Screw (4) (Replaces: 300890) |
|
Immediately | $ 8.25 | ||||
| 18 | 3177433 | Bracket, Hinge (2) |
|
- | |||||
| 18 | WP90767 | Screw (2) (Replaces: 300890) |
|
Immediately | $ 8.25 | ||||
| 18 | 3179795 | Screw (6) |
|
- | |||||
| 19 | 3177622 | Bottom, Module |
|
- | |||||
| 20 | 3178612 | Shield, Radiation |
|
- | |||||
| 20 | WP90767 | Screw (2) (Replaces: 300890) |
|
Immediately | $ 8.25 | ||||
| 21 | WP90767 | Screw (2) (Replaces: 300890) |
|
Immediately | $ 8.25 | ||||
| 21 | 3177434 | Support, Oven |
|
- | |||||
| 22 | WP90767 | Screw (8) (Replaces: 300890) |
|
Immediately | $ 8.25 | ||||
| 22 | 3177558 | Back, Module |
|
- | |||||
| 23 | 3180126 | Cover, Latch Mtg. |
|
- | |||||
| 23 | 3179117 | Screw (2) |
|
- | |||||
| 24 | 3179848 | Clip, Seal (3) |
|
- | |||||
| 25 | 3179795 | Screw (4) |
|
- | |||||
| 25 | 3178298 | Hinge, Door (2) |
|
- | |||||
| 26 | 3185108 | Button, Plug |
|
- | |||||
| 27 | 3185109 | Button, Plug |
|
- | |||||
| 28 | 3179945 | Tube, Vent Male |
|
- | |||||
| 28 | WP90767 | Screw (3) (Replaces: 300890) |
|
Immediately | $ 8.25 | ||||
| 29 | 3181964 | Tube, Vent Female |
|
- | |||||
| 30 | 4159117 | Nut (2) |
|
- | |||||
| 30 | 313489 | Screw (2) |
|
- | |||||
| 30 | 4173553 | Switch, Door |
|
- | |||||
| 32 | 3179776 | Screw (8) |
|
- | |||||
| 32 | 4168863 | Screw |
|
- | |||||
| 32 | 3179587 | Retainer, Seal |
|
- | |||||
| 33 | 4159445 | Screw |
|
- | |||||
| 33 | 4168203 | Cover, Cap Tube |
|
- | |||||
| 34 | 3177784 | Trim, Lower Vent |
|
- |
