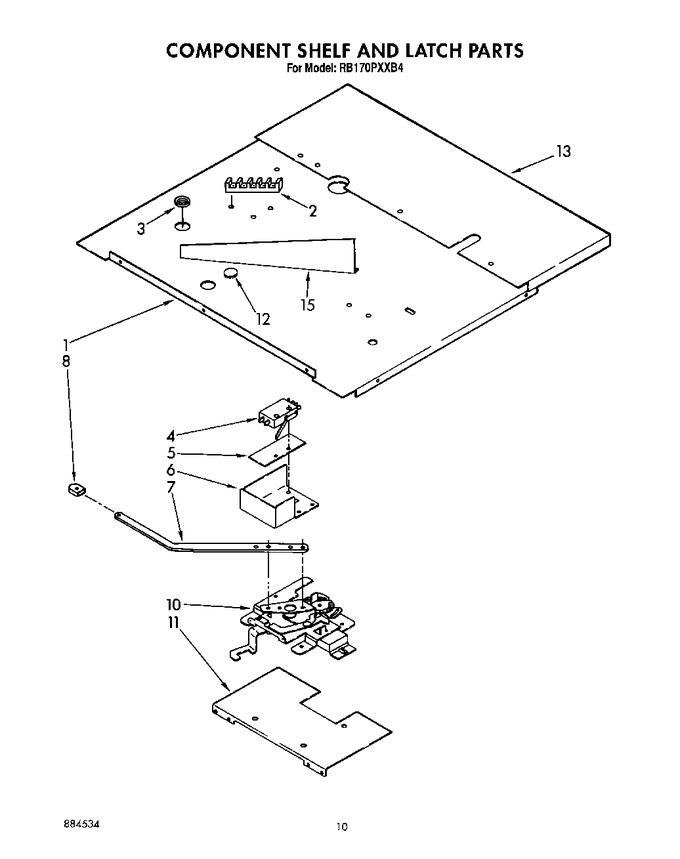

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3178090		Shelf, Component		Appelez-nous	-
1	WP90767		Screw (7)   (Replaces: 300890)			Immediately	$ 8.25
2	WP8203546		Block, Terminal   (Replaces: 258076)			Immediately	$ 30.13
2	W10841059		Screw (2)   (Replaces: 98445)		Appelez-nous	-
3	4173043		Bushing		Appelez-nous	-
4	98106		Screw (2)		Appelez-nous	-
4	3178668		Switch, Latch		Appelez-nous	-
5	3178185		Insulator, Switch		Appelez-nous	-
6	WP3177991		Screw (1)   (Replaces: 3177991)			Immediately	$ 7.55
6	3177662		Guard, Latch		Appelez-nous	-
7	3180409		Handle, Latch		Appelez-nous	-
8	3183293		Knob, Latch Handle		Appelez-nous	-
8	3183294		Screw		Appelez-nous	-
10	3178410		Latch, Mechanism		Appelez-nous	-
10	WP3177991		Screw (3)   (Replaces: 3177991)			Immediately	$ 7.55
11	WP90767		Screw (8)   (Replaces: 300890)			Immediately	$ 8.25
11	3177496		Plate, Mounting (2)		Appelez-nous	-
12	3179777		Plug, Button		Appelez-nous	-
13	WP3177991		Screw (8)   (Replaces: 3177991)			Immediately	$ 7.55
13	3178133		Extension, Shelf		Appelez-nous	-
13	WP90767		Screw   (Replaces: 300890)			Immediately	$ 8.25
15	WP90767		Screw (2)   (Replaces: 300890)			Immediately	$ 8.25
15	3180693		Baffle, Air		Appelez-nous	-
