Diagram # Part Number Description Series Availability Ships Price Add to Cart
3 3177437 Top, Module Appelez-nous -
3 WP90767 Screw (8)   (Replaces: 300890) In-Stock Immediately $ 8.25

4 3181700 Tube, Vent Appelez-nous -
4 3179117 Screw (3) Appelez-nous -
5 3180803 Liner, Oven Appelez-nous -
6 3177572 Side, Module (r.h. & L.h.) Appelez-nous -
6 WP90767 Screw (2)   (Replaces: 300890) In-Stock Immediately $ 8.25

7 8009 Bulb, Oven Light   (Replaces: 311255) In-Stock Immediately $ 18.67

9 4159445 Screw (3) Appelez-nous -
9 W11594027 Oven Light Assem.   (Replaces: 3150505) In-Stock Immediately $ 87.01

10 98005642 Clip, Bulb (2)   (Replaces: 313382) In-Stock Immediately $ 87.08

12 3177704 Frame, Door Appelez-nous -
13 3179814 Seal, Door Appelez-nous -
14 WP3177991 Screw (2)   (Replaces: 3177991) In-Stock Immediately $ 7.55

14 3177681 Bracket, Switch Appelez-nous -
15 3177923 Insulator, Switch Appelez-nous -
16 3177552 Bottom, Oven Appelez-nous -
17 3179220 Rail, Support (2) Appelez-nous -
17 WP90767 Screw (4)   (Replaces: 300890) In-Stock Immediately $ 8.25

18 3177433 Bracket, Hinge (2) Appelez-nous -
18 WP90767 Screw (2)   (Replaces: 300890) In-Stock Immediately $ 8.25

18 3179795 Screw (6) Appelez-nous -
19 3177622 Bottom, Module Appelez-nous -
20 3178612 Shield, Radiation Appelez-nous -
20 WP90767 Screw (2)   (Replaces: 300890) In-Stock Immediately $ 8.25

21 3177434 Support, Oven Appelez-nous -
21 WP90767 Screw (2)   (Replaces: 300890) In-Stock Immediately $ 8.25

22 3177558 Back, Module Appelez-nous -
22 WP90767 Screw (8)   (Replaces: 300890) In-Stock Immediately $ 8.25

23 3180126 Cover, Latch Mtg. Appelez-nous -
23 3179117 Screw (2) Appelez-nous -
24 3179848 Clip, Seal (2) Appelez-nous -
25 3179795 Screw (4) Appelez-nous -
25 3178298 Hinge, Door (2) Appelez-nous -
26 3185108 Button, Plug Appelez-nous -
27 3185109 Button, Plug Appelez-nous -
28 3179945 Tube, Vent Male Appelez-nous -
28 WP90767 Screw (3)   (Replaces: 300890) In-Stock Immediately $ 8.25

29 3181694 Tube, Vent (female) Appelez-nous -
30 4173553 Switch, Door Appelez-nous -
30 313489 Screw (2) Appelez-nous -
30 4159117 Nut (2) Appelez-nous -
32 3179776 Screw (8) Appelez-nous -
32 4168863 Screw (2) Appelez-nous -
32 3179587 Retainer, Seal Appelez-nous -
33 4168203 Cover, Cap Tube Appelez-nous -
33 4159445 Screw Appelez-nous -
34 3171507 Mounting Hardware Appelez-nous -
34 350956 Paint, Spray 13 Oz. (almond) Special Order $ 54.01

34 72017 Paint, Touch-up 1/2 Oz. (white) In-Stock Immediately $ 12.30

34 72032 Paint, Touch-up 1/2 Oz. (black) In-Stock Immediately $ 18.69

34 WP72107 Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107) Special Order $ 18.81

34 285367 Enamal, Toast (1 Qt. Uncut) Appelez-nous -
34 285368 Platinum Appelez-nous -
34 WP482338 Sealer, Silastic (3 Oz.)   (Replaces: 482338) In-Stock Immediately $ 81.83

34 591014 Adhesive Loctite (1/3 Oz.) Appelez-nous -
34 799832 Kit. Porcelain Repair (white) Appelez-nous -
34 261881 Rotisserie Kit Appelez-nous -
34 832985 Rack, Cooking (bi-level) Appelez-nous -
34 242820 Wire (14 Ga. 150 C Black) Appelez-nous -
34 3177786 Trim, Lower Vent Appelez-nous -
34 3177870 Insulation, Back Appelez-nous -
34 3177865 Insulation, Wrap Appelez-nous -
34 350806 18 Ga. 80~c Rating (yellow 16 Ga. 80~c Rating) Appelez-nous -
34 242821 Wire (14 Ga. 150 C Blue) Appelez-nous -
34 242822 Wire (14 Ga. 150 C Brown) Appelez-nous -
34 242823 Wire (14 Ga. 150 C Green) Appelez-nous -
34 242824 Wire (14 Ga. 150 C Orange) Appelez-nous -
34 242825 Wire (14 Ga. 150 C Red) Appelez-nous -
34 242826 18 Ga. 80~c Rating (white) Appelez-nous -
34 242827 Wire (14 Ga. 150 C Yellow) Appelez-nous -
34 242830 Wire (14 Ga. 200 C Brown) Appelez-nous -
34 242831 Wire (14 Ga. 200 C Red) Special Order $ 342.23

34 242832 18 Ga. 80~c Rating (yellow 12 Ga. 150~c Rating) Appelez-nous -
34 242828 Wire (12 Ga. 150 C Black) Appelez-nous -
34 242829 18 Ga. 80~c Rating (red) Appelez-nous -
34 DD81-03523A Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110) Special Order $ 137.86

34 72112 Paint, (touch-up 1/2 Oz.) (toast) Appelez-nous -
34 DD81-03496A Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113) Special Order $ 117.11

34 WP261869 Citrine White   (Replaces: 261869) Special Order $ 27.83

34 350930 Paint, Pressurized Spray (12 Oz.) White In-Stock Immediately $ 40.12

34 261890 Harvest Gold Appelez-nous -
34 285365 Toast Appelez-nous -
34 285366 Paint, Spray (13 Oz.) (platinum) Appelez-nous -
34 285006 Spray Paint (black) 13 Oz.   (Replaces: 830864) Special Order $ 59.89

34 350942 Primer Special Order $ 94.14

34 350941 Leveler (primer) Appelez-nous -
34 799344 Paint, Bulk (1 Qt.) (white) (uncut) Special Order $ 237.46

34 978883 Almond Appelez-nous -
34 261891 Harvest Gold Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

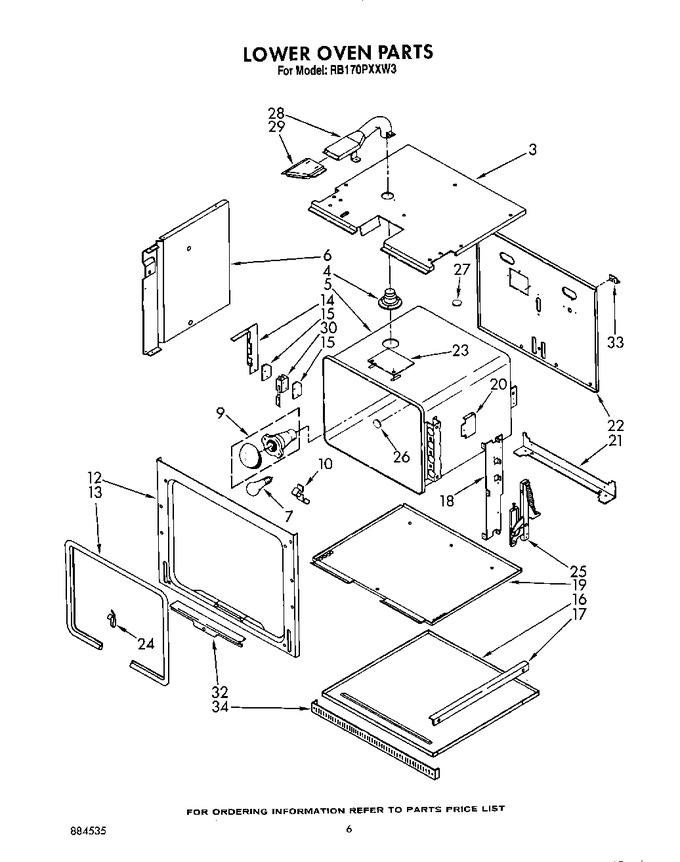

Diagram for RB170PXXW3
