Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3177598 Liner, Door Appelez-nous -
1 3178001 Screw, Black (2) Appelez-nous -
1 4168863 Screw (6) Appelez-nous -
2 3178584 Seal, Window Appelez-nous -
3 3179694 Spacer, Window Appelez-nous -
4 4169572 Window Pack Appelez-nous -
5 WP90767 Screw (4)   (Replaces: 300890) In-Stock Immediately $ 8.25

5 3177719 Retainer, Insulation Appelez-nous -
6 3179499 Glass, Door Appelez-nous -
7 3180606 Frame, Door Appelez-nous -
8 4170323 Screw (6) Appelez-nous -
8 WP355515 Screw (2)   (Replaces: 355515) Special Order $ 8.48

8 3179484 Handle, Door Appelez-nous -
9 3148282 Clip (2) Special Order $ 8.69

11 3181349 Shield, Door Appelez-nous -
11 WP90767 Screw (2)   (Replaces: 300890) In-Stock Immediately $ 8.25

12 3179479 Trim, Door Appelez-nous -
13 3181365 Cap, Top Appelez-nous -
13 4168863 Screw (2) Appelez-nous -
14 3181701 Bumper, Door Glass Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

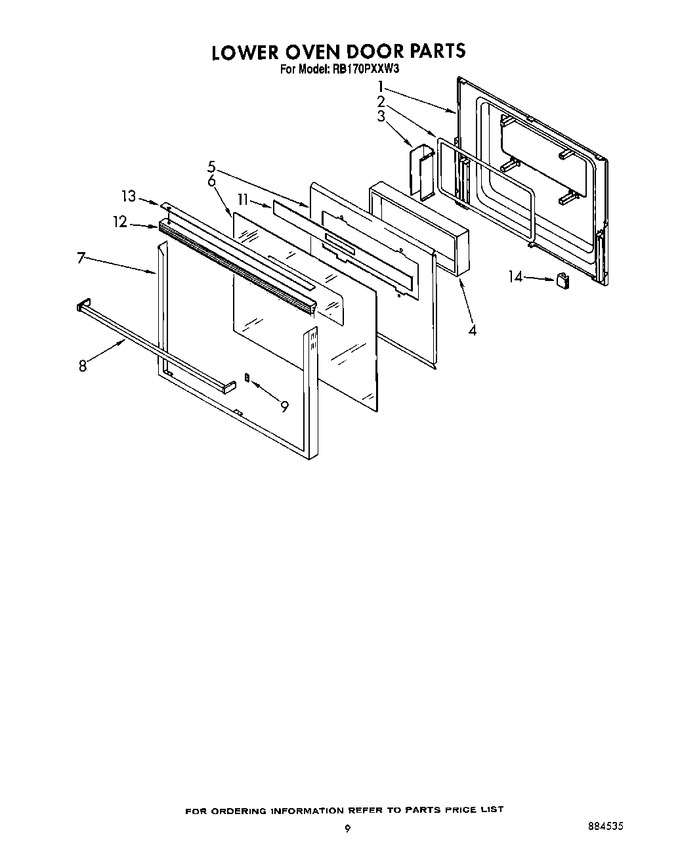

Diagram for RB170PXXW3
