SELECT A DIAGRAM

01 - Cabinet Back


02 - Cabinet Parts


03 - Drain System, Rollers, And Evap Assy


04 - Fz Door


05 - Fz Shelves And Light


06 - Ice Bucket Auger And Ice Maker Parts


07 - Ice Maker/control Assy


08 - Ice-water Cav/elec Brkt Assy/toe Grille


09 - Machine Compartment

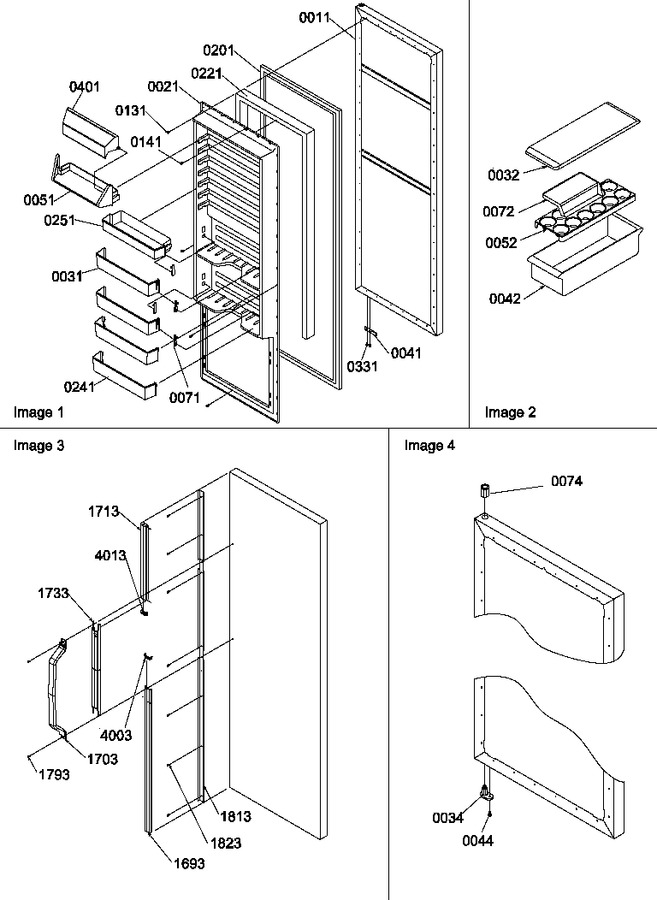

10 - Ref Door And Accessories


11 - Refri/freez Shelves, Lights, & Hinges


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	10881301W		Assy Ref. Door		Appelez-nous	-
21	10866101		Liner-ref Dr		Appelez-nous	-
31	10520410		Shelf, Chiller		Appelez-nous	-
32	10436404		Lid, Utility				$ 60.85
34	R0181181		Closure, Door (wht)   (Replaces: 12113202)			Immediately	$ 7.55
41	C8972405		Stop-w Door		Appelez-nous	-
42	10423129		Bin-utility		Appelez-nous	-
44	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
51	12083301		Shelf, Dairy		Appelez-nous	-
52	10436506		Tray, Egg				$ 8.28
71	10202001		Clip, Retainer		Appelez-nous	-
72	10310901		Tray, Butter		Appelez-nous	-
131	M0219730		Screw				$ 7.65
141	M0226705		Screw, Shoulder		Appelez-nous	-
201	10359708		Gasket, Door (w Ref)		Appelez-nous	-
221	B0523563		Insulation Ft. K		Appelez-nous	-
241	10521814		Shelf-ref Door		Appelez-nous	-
251	12083406		Ref Dr Bucket		Appelez-nous	-
331	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
401	10527307		Door, Dairy		Appelez-nous	-
1693	10810508		Trim, Bottom Door W Ref		Appelez-nous	-
1703	12139304		Handle, Door (white)		Appelez-nous	-
1713	10810308		Trim-w Top Ref Dr		Appelez-nous	-
1733	10810401		Trim-w Ctr Dr		Appelez-nous	-
1793	R9800670		Screw, Tf   (Replaces: M0238731)				$ 10.58
1813	10852214		Retainer-ref Trim		Appelez-nous	-
1823	M0216517		Screw		Appelez-nous	-
4003	10953111		Insert, Trim(white)		Appelez-nous	-
4013	10953112		Insert, Trim(white)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
