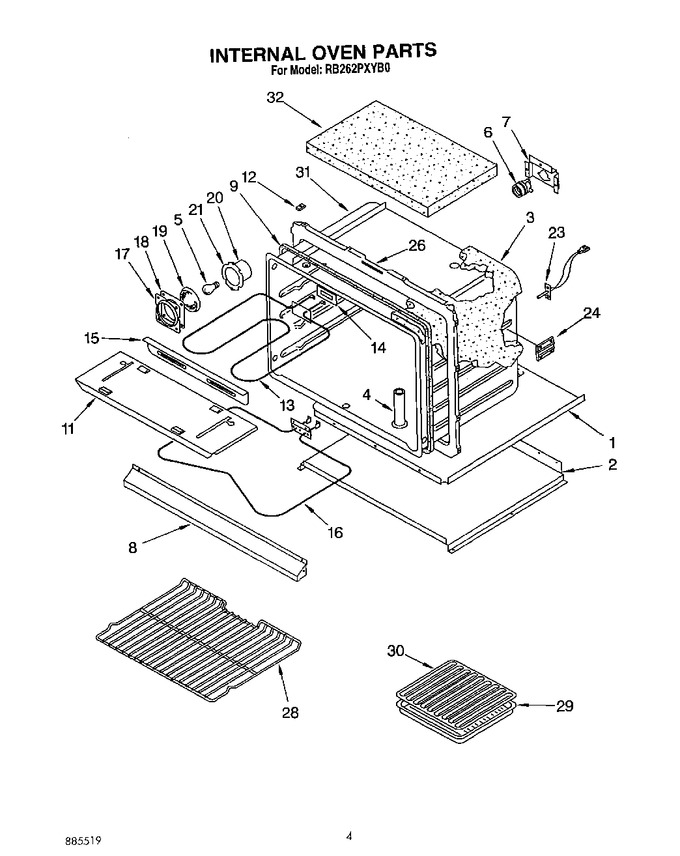

| 1 | 879346 | Retainer, Insulation |
|
- | |||||
| 1 | 879333 | Screw |
|
- | |||||
| 2 | 879333 | Screw |
|
- | |||||
| 2 | 879347 | Shield, Bottom |
|
- | |||||
| 3 | 879348 | Insulation, Wrap |
|
- | |||||
| 4 | 879349 | Tube, Oven Vent |
|
- | |||||
| 5 | 8009 | Lamp, Oven (Replaces: 879350) |
|
Immediately | $ 17.51 | ||||
| 6 | 879351 | Receptacle, Lamp |
|
- | |||||
| 7 | 879352 | Bracket, Lamp |
|
- | |||||
| 8 | 879353 | Shield, Lower Vent (black Model) |
|
- | |||||
| 8 | 879336 | Shield, Lower Vent (screw, Zinc) |
|
- | |||||
| 8 | 879320 | Shield, Lower Vent (screw, Black) |
|
- | |||||
| 8 | 879354 | Shield, Lower Vent (white Model) |
|
- | |||||
| 9 | 879355 | Gasket, Oven |
|
- | |||||
| 11 | 879357 | Shield, Broil |
|
- | |||||
| 11 | 879356 | Screw |
|
- | |||||
| 12 | 879358 | Bracket, Burner Box |
|
- | |||||
| 13 | 879359 | Element, Broil |
|
- | |||||
| 13 | 879356 | Screw |
|
- | |||||
| 14 | 879360 | Gasket, Element |
|
- | |||||
| 15 | 879361 | Support, Element |
|
- | |||||
| 16 | WPY04000041 | Element, Bake (Replaces: 879362) |
|
$ 139.86 | |||||
| 16 | 879356 | Screw |
|
- | |||||
| 17 | 879372 | Screw |
|
- | |||||
| 17 | 879363 | Retainer, Lamp |
|
- | |||||
| 18 | 879364 | Gasket, Retainer |
|
- | |||||
| 19 | 879365 | Glass, Lamp |
|
- | |||||
| 20 | 879366 | Housing, Lamp |
|
- | |||||
| 21 | 879367 | Gasket, Housing |
|
- | |||||
| 23 | 12001656 | Probe, Oven (Replaces: 879368) |
|
Immediately | $ 45.13 | ||||
| 24 | 879369 | Support, Oven |
|
- | |||||
| 26 | 879371 | Frame, Front |
|
- | |||||
| 26 | 879372 | Screw |
|
- | |||||
| 28 | 879373 | Rack, Oven |
|
- | |||||
| 29 | 4396923 | Pan, Broiler (Replaces: 879374) |
|
Immediately | $ 54.64 | ||||
| 30 | 4396923 | Grill, Broiler Pan (Replaces: 879375) |
|
Immediately | $ 54.64 | ||||
| 32 | 879336 | Hardware, Installation (screw (4) Zinc) |
|
- | |||||
| 32 | 242826 | Wire, White 14 Ga. 150~c |
|
- | |||||
| 32 | 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | |||||
| 32 | 242832 | Wire, Yellow 14 Ga. 200~c |
|
- | |||||
| 32 | 8212471 | Touch-up (Replaces: 242756) |
|
Immediately | $ 78.50 | ||||
| 32 | 261582 | Grease |
|
- | |||||
| 32 | 241430 | Foil, Aluminum Oven (18`` X 25`) |
|
$ 20.65 | |||||
| 32 | CERAMABRYTE | Cleaner, Glass (Replaces: 3184477) |
|
Immediately | $ 9.95 | ||||
| 32 | 879320 | Hardware, Installation (screw (4) Black) |
|
- | |||||
| 32 | 242820 | Wire (14 Ga. 150 C Black) |
|
- | |||||
| 32 | 879460 | Insulation, Top |
|
- | |||||
| 32 | 242828 | Wire (12 Ga. 150 C Black) |
|
- | |||||
| 32 | 242821 | Wire (14 Ga. 150 C Blue) |
|
- | |||||
| 32 | 242822 | Wire (14 Ga. 150 C Brown) |
|
- | |||||
| 32 | 242830 | Wire (14 Ga. 200 C Brown) |
|
- | |||||
| 32 | 242823 | Wire (14 Ga. 150 C Green) |
|
- | |||||
| 32 | 242824 | Wire (14 Ga. 150 C Orange) |
|
- | |||||
| 32 | 242829 | Wire, Red 12 Ga. 150~c |
|
- | |||||
| 32 | 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 |
