SELECT A DIAGRAM

02 - Control Panel


03 - Oven Cabinet


04 - Internal Oven, Optional


05 - Oven Door, Literature

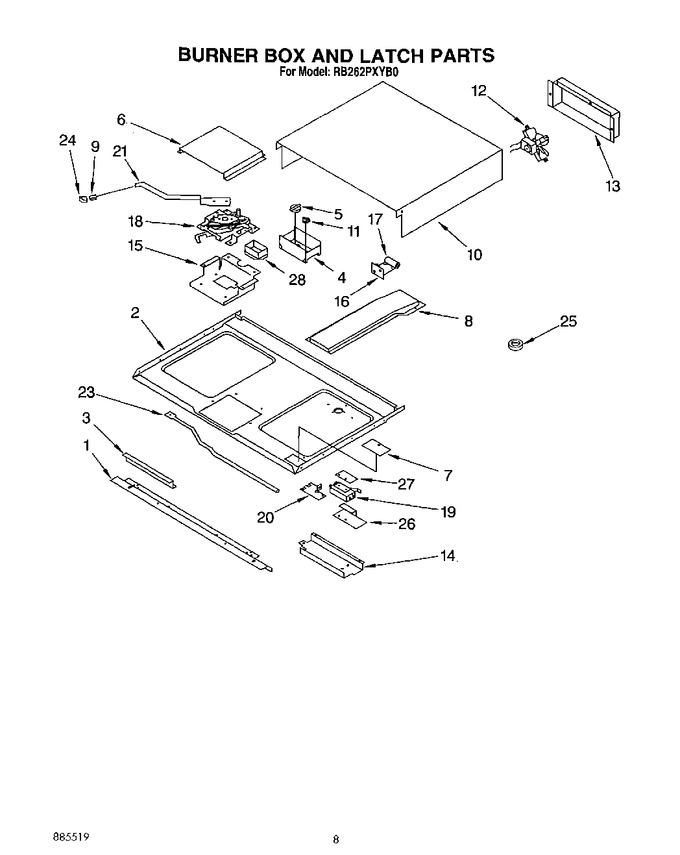

06 - Burner Box And Latch


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	879333		Screw		Appelez-nous	-
1	879402		Front, Burner Box		Appelez-nous	-
2	879403		Bottom, Burner Box			Immediately	$ 30.57
2	879333		Screw		Appelez-nous	-
3	879333		Screw		Appelez-nous	-
3	879404		Shield, Terminal		Appelez-nous	-
4	879445		Screw		Appelez-nous	-
4	879405		Support, Thermal Disc		Appelez-nous	-
5	879406		Switch, Limit		Appelez-nous	-
6	879407		Cover, Latch		Appelez-nous	-
7	879408		Cover, Switch		Appelez-nous	-
8	879409		Vent Box Assy.		Appelez-nous	-
9	879410		Clip, Handle		Appelez-nous	-
10	879411		Housing, Fan		Appelez-nous	-
11	879412		Switch, Limit		Appelez-nous	-
12	879413		Fan Assembly		Appelez-nous	-
13	879414		Cover, Fan		Appelez-nous	-
14	879415		Channel, Switch		Appelez-nous	-
15	879416		Support, Latch		Appelez-nous	-
16	879417		Block, Terminal		Appelez-nous	-
17	879418		Resistor Assembly		Appelez-nous	-
18	879419		Latch Assembly		Appelez-nous	-
19	879420		Switch		Appelez-nous	-
20	879421		Support, Switch		Appelez-nous	-
21	879423		Bolt		Appelez-nous	-
21	879422		Handle, Latch		Appelez-nous	-
23	879424		Link, Switch		Appelez-nous	-
24	879425		Knob, Latch Handle (black Model)		Appelez-nous	-
24	879426		Knob, Latch Handle (white Model)		Appelez-nous	-
25	879446		Grommet		Appelez-nous	-
26	879447		Shield, Latch		Appelez-nous	-
27	879448		Shield, Switch (upper)		Appelez-nous	-
27	879449		Shield, Switch (lower)		Appelez-nous	-
28	879447		Shield, Door Lock		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
