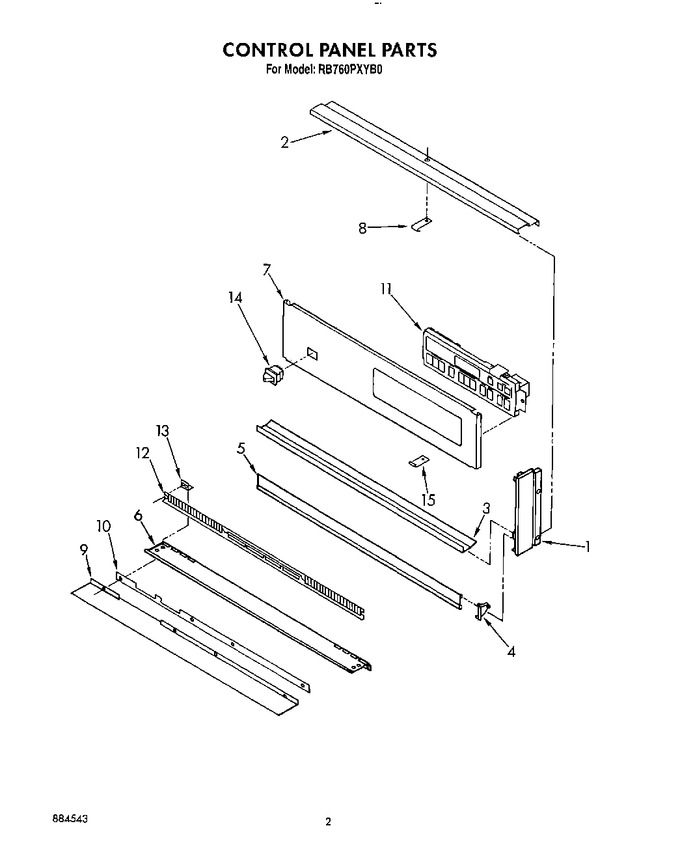

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3183631 | End Cap (right Hand) |
|
- | |||||
| 1 | 3183630 | End Cap (left Hand) |
|
- | |||||
| 2 | 3179423 | Trim, Top |
|
- | |||||
| 2 | 3179117 | Screw (2) |
|
- | |||||
| 3 | 3183575 | Trim, Center (white Model) |
|
- | |||||
| 3 | 3183573 | Trim, Center (black Model) |
|
- | |||||
| 4 | 3183501 | Door, Vent (black Model) |
|
- | |||||
| 4 | 3183503 | Door, Vent (white Model) |
|
- | |||||
| 5 | 3148472 | End Trim (vent Door) Left Hand (white Model) |
|
- | |||||
| 5 | 3148697 | End Trim (vent Door) Left Hand (black Model) |
|
- | |||||
| 5 | 3148471 | End Trim (vent Door) Left Hand (white Model Right Hand) |
|
- | |||||
| 5 | 3148698 | End Trim (vent Door) Left Hand (black Model) |
|
- | |||||
| 6 | 3183495 | Trim, Bottom (white Model) |
|
- | |||||
| 6 | 342043 | Trim, Bottom (screw (2)) |
|
- | |||||
| 6 | 3183494 | Trim, Bottom (black Model) |
|
- | |||||
| 7 | 3182912 | Control Panel (white Model) |
|
- | |||||
| 7 | 3182911 | Control Panel (black Model) |
|
- | |||||
| 8 | 3183492 | Stiffener, Bracket |
|
- | |||||
| 8 | 254217 | Screw |
|
- | |||||
| 9 | 3183483 | Trim, Vent Upper (white Model) |
|
- | |||||
| 9 | 3183484 | Trim, Vent Upper (black Model) |
|
- | |||||
| 10 | 3184224 | Shim |
|
- | |||||
| 11 | 3182392 | Electronic Timer (white Model) |
|
- | |||||
| 11 | 3182391 | Electronic Timer (black Model) |
|
- | |||||
| 11 | WP90767 | Electronic Timer (screw (4)) (Replaces: 300890) |
|
Immediately | $ 8.25 | ||||
| 12 | 3179916 | Insert, Vent |
|
- | |||||
| 13 | 3181279 | Bracket, Vent Insert |
|
- | |||||
| 13 | WP90767 | Screw (2) (Replaces: 300890) |
|
Immediately | $ 8.25 | ||||
| 14 | 3182717 | Switch, Rocker (black Model) |
|
- | |||||
| 14 | 3182718 | Switch, Rocker (white Model) |
|
- | |||||
| 15 | 311773 | Screw |
|
- | |||||
| 15 | 3183493 | Stiffner, Bracket |
|
- | |||||
| 832985 | Rack, Cooking (bi-level) |
|
- | ||||||
| 242821 | Wire (14 Ga. 150 C Blue) |
|
- | ||||||
| 242832 | 14 Ga. 200~c Rating (yellow) |
|
- | ||||||
| 242828 | Wire (12 Ga. 150 C Black) |
|
- | ||||||
| 242829 | 12 Ga. 150~c Rating (red) |
|
- | ||||||
| DD81-03523A | Paint, Touch-up 1/2 Oz. (harvest Gold) (Replaces: 72110) |
|
$ 137.86 | ||||||
| 72112 | Paint, (touch-up 1/2 Oz.) (toast) |
|
- | ||||||
| DD81-03496A | Paint, Touch-up 1/2 Oz. (platinum) (Replaces: 72113) |
|
$ 117.11 | ||||||
| WP261869 | Citrine White (Replaces: 261869) |
|
$ 27.83 | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 40.12 | |||||
| 261890 | Harvest Gold |
|
- | ||||||
| 285365 | Toast |
|
- | ||||||
| 242822 | Wire (14 Ga. 150 C Brown) |
|
- | ||||||
| 285366 | Paint, Spray (13 Oz.) (platinum) |
|
- | ||||||
| 285006 | Spray Paint (black) 13 Oz. (Replaces: 830864) |
|
$ 59.89 | ||||||
| 350942 | Primer |
|
$ 94.14 | ||||||
| 350941 | Leveler (primer) |
|
- | ||||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 978883 | Almond |
|
- | ||||||
| 261891 | Harvest Gold |
|
- | ||||||
| 285367 | Enamal, Toast (1 Qt. Uncut) |
|
- | ||||||
| 285368 | Platinum |
|
- | ||||||
| WP482338 | Sealer, Silastic (3 Oz.) (Replaces: 482338) |
|
Immediately | $ 81.83 | |||||
| 242823 | Wire (14 Ga. 150 C Green) |
|
- | ||||||
| 591014 | Adhesive Loctite (1/3 Oz.) |
|
- | ||||||
| 799832 | Kit. Porcelain Repair (white) |
|
- | ||||||
| 242820 | Wire (14 Ga. 150 C Black) |
|
- | ||||||
| 350956 | Paint, Spray 13 Oz. (almond) |
|
$ 54.01 | ||||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | |||||
| 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | |||||
| WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 18.81 | ||||||
| LIT884543 | Repair Parts List |
|
- | ||||||
| LIT3184299 | Tech Sheet |
|
- | ||||||
| LIT3183636 | Installation Instructions |
|
- | ||||||
| 242824 | Wire (14 Ga. 150 C Orange) |
|
- | ||||||
| LIT3182871 | Use & Care Guide |
|
- | ||||||
| 350806 | 18 Ga. 80~c Rating (yellow) |
|
- | ||||||
| 242825 | Wire (14 Ga. 150 C Red) |
|
- | ||||||
| 242826 | 14 Ga. 150~c Rating (white) |
|
- | ||||||
| 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | ||||||
| 242830 | Wire (14 Ga. 200 C Brown) |
|
- | ||||||
| 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 |
