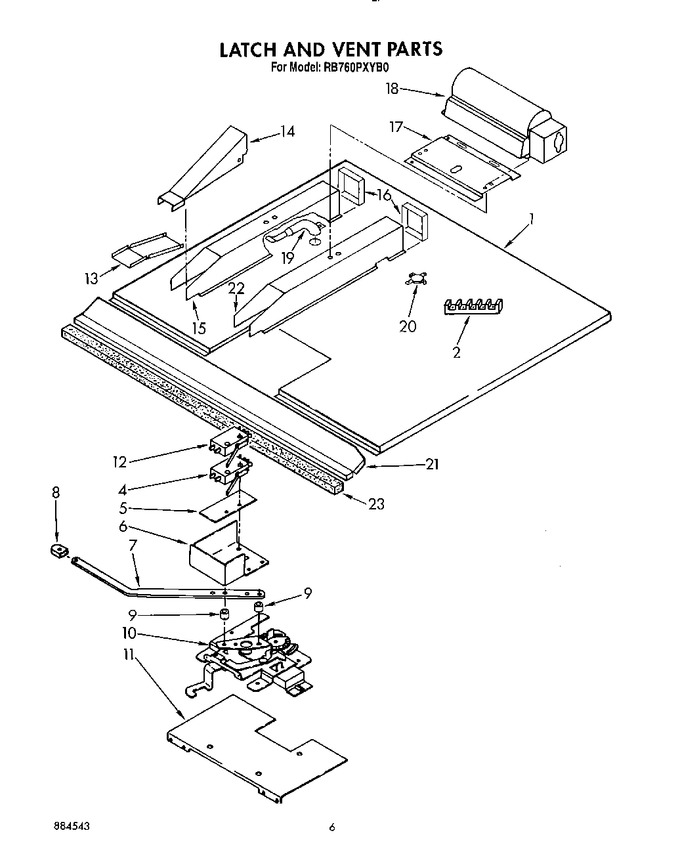

05 - Latch And Vent


06 - Oven Door


07 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3183748		Module, Top		Appelez-nous	-
2	308043		Screw (2)		Appelez-nous	-
2	WP8203546		Block, Terminal   (Replaces: 258076)			Immediately	$ 30.13
4	3178669		Switch, Latch		Appelez-nous	-
4	3177988		Screw (2)		Appelez-nous	-
5	3178185		Insulator, Switch		Appelez-nous	-
6	3177662		Guard, Latch		Appelez-nous	-
7	3177969		Handle, Latch		Appelez-nous	-
8	3183294		Screw		Appelez-nous	-
8	3184039		Knob, Latch Handle		Appelez-nous	-
9	3184041		Spacer, Latch Handle (2)		Appelez-nous	-
9	3184042		Screw (2)		Appelez-nous	-
10	3178410		Latch, Mechanism		Appelez-nous	-
11	WP3177991		Screw   (Replaces: 3177991)			Immediately	$ 7.55
11	3177496		Plate, Mounting		Appelez-nous	-
12	3178671		Switch, Latch		Appelez-nous	-
13	3183954		Nozzel, Vent Bottom		Appelez-nous	-
14	3183955		Nozzel, Vent Top		Appelez-nous	-
15	WP3177991		Fan (screw (4))   (Replaces: 3177991)			Immediately	$ 7.55
15	3183999		Box, Vent		Appelez-nous	-
16	WP90767		Screw (6)   (Replaces: 300890)			Immediately	$ 8.25
16	3183964		End, Vent Box		Appelez-nous	-
17	3183533		Bracket, Mounting		Appelez-nous	-
18	3183720		Blower, Fan		Appelez-nous	-
19	3183791		Tube, Vent		Appelez-nous	-
20	3149652		Spst Thermostat		Appelez-nous	-
20	WP90767		Screw (2)   (Replaces: 300890)			Immediately	$ 8.25
21	WP3177991		Screw (2)   (Replaces: 3177991)			Immediately	$ 7.55
21	3183785		Shield, Heat		Appelez-nous	-
22	3183953		Box, Vent		Appelez-nous	-
23	313755		Seal, Foam		Appelez-nous	-
