SELECT A DIAGRAM

02 - Control Panel And Latch


03 - Upper Oven Door


04 - Upper Oven , Literature And Optional


05 - Lower Oven


06 - Lower Oven Door

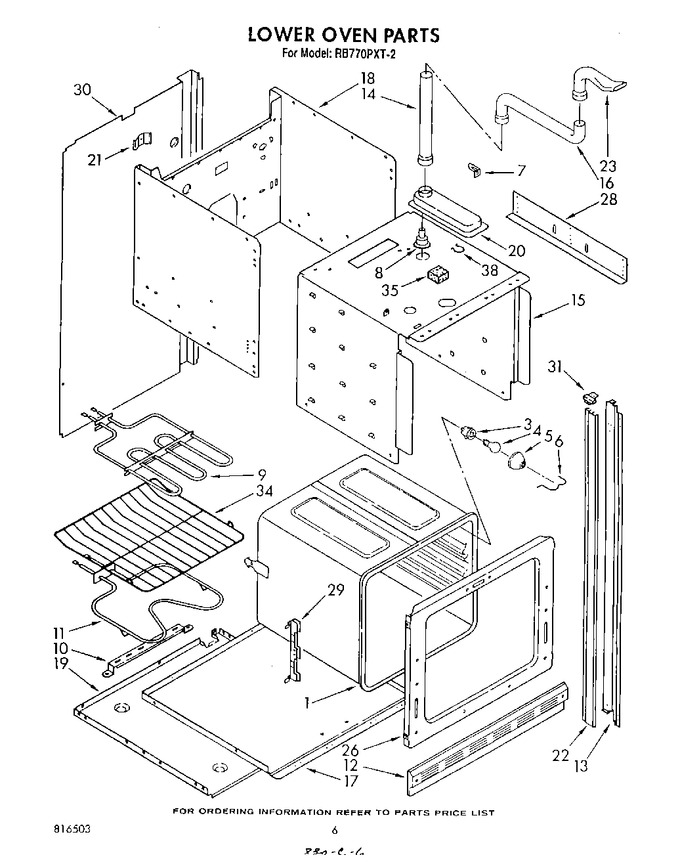

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	816272		Oven (27``)		Appelez-nous	-
3	W10856866		Receptacle, Light   (Replaces: 877803)				$ 6.80
4	40A15		Bulb, Light   (Replaces: 816389)			Immediately	$ 1.98
5	877804		Lens, Light		Appelez-nous	-
6	816291		Retainer, Lens		Appelez-nous	-
7	816300		Bracket, Vent Tube		Appelez-nous	-
8	816447		Vent Tube		Appelez-nous	-
9	241428		Screw, 10 - 24 X 1/2 (2)		Appelez-nous	-
9	816295		Unit, Broil		Appelez-nous	-
10	816297		Support,		Appelez-nous	-
10	241428		Screw, 10-24 X 1/2 (2) Broil Unit		Appelez-nous	-
11	241428		Screw, 10 - 24 X 1/2 (2)		Appelez-nous	-
11	816293		Unit, Bake		Appelez-nous	-
12	816344		Trim, Base		Appelez-nous	-
12	3149333		Screw, 10-16 X 1/2 (2)				$ 5.33
13	WP308685		Side Trim (inner) (screw, 10-24 X 1/2 (10))   (Replaces: 308685)			Immediately	$ 7.08
13	816286		Side Trim (inner) (l.h.)		Appelez-nous	-
13	816285		Side Trim (inner) (r.h.)		Appelez-nous	-
14	816299		Vent Tube		Appelez-nous	-
15	816277		Insulation Retainer, Top And Sides		Appelez-nous	-
16	816301		Vent Tube		Appelez-nous	-
17	816278		Insulation Retainer, Bottom		Appelez-nous	-
17	241428		Screw, 10-24 X 1/2 (4)		Appelez-nous	-
18	WP308685		Screw, 10-24 X 1/2 (14)   (Replaces: 308685)			Immediately	$ 7.08
18	816280		Casing, Back And Sides		Appelez-nous	-
19	816283		Casing, Bottom		Appelez-nous	-
20	816298		Duct, Oven		Appelez-nous	-
21	816287		Spring, Oven (2)		Appelez-nous	-
21	241428		Screw, 10 - 24 X 1/2 (2)		Appelez-nous	-
22	816324		Side Trim, Outer (2)		Appelez-nous	-
22	3149333		Screw, 10-16 X 1/2				$ 5.33
23	877919		Screw, 8-32 X 3/16		Appelez-nous	-
23	816327		Duct, Oven Vent		Appelez-nous	-
26	816270		Screw, 10-24 X 5/8 (6)		Appelez-nous	-
26	816407		Front Frame		Appelez-nous	-
28	816284		Support, Height (2)		Appelez-nous	-
28	WP308685		Screw, 10-24 X 1/2 (12)   (Replaces: 308685)			Immediately	$ 7.08
29	816388		Channel Assembly, Hinge (2)		Appelez-nous	-
30	816341		Cover, Rear		Appelez-nous	-
30	241428		Screw, 10-24 X 1/2 (8)		Appelez-nous	-
31	816333		End Cap, Top (2)		Appelez-nous	-
34	816342		Rack, Oven Regular		Appelez-nous	-
35	816328		Insulation		Appelez-nous	-
38	816329		Retainer		Appelez-nous	-
