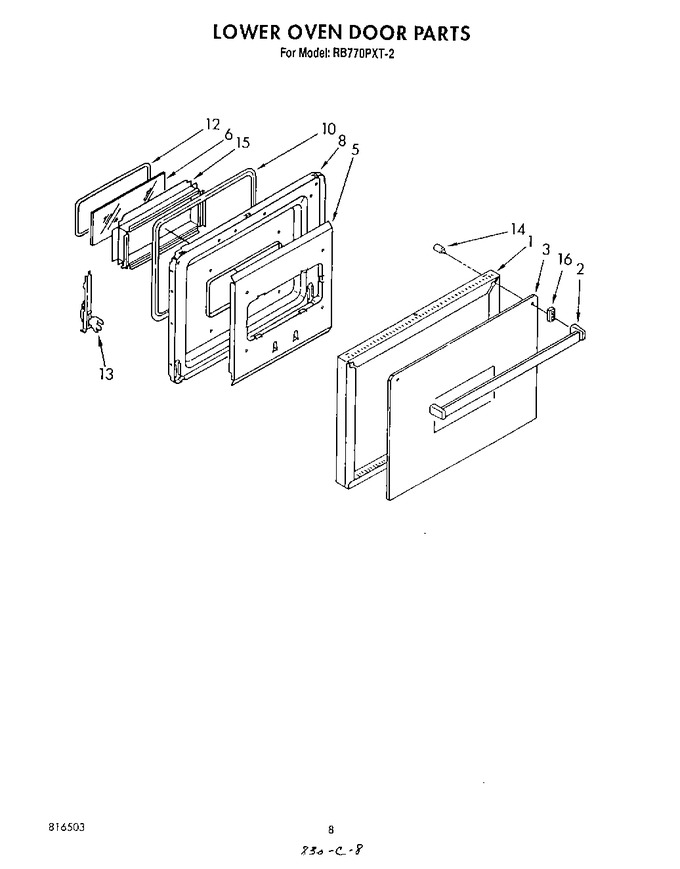

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3149333		Screw, 10-16 X 1/2 (6)				$ 5.33
1	816354		Frame, Oven Door		Appelez-nous	-
2	816438		Handle, Oven Door		Appelez-nous	-
2	816359		Screw, 10-24 X 2 (2)		Appelez-nous	-
3	816356		Glass, Outer		Appelez-nous	-
5	816351		Panel, Airwash		Appelez-nous	-
6	816377		Glass, Inner		Appelez-nous	-
8	816270		Screw, 10-24 X 5/8		Appelez-nous	-
8	816514		Liner, Oven Door		Appelez-nous	-
10	816417		Seal-oven Door		Appelez-nous	-
12	816376		Seal, Window		Appelez-nous	-
13	816270		Screw, 10-24 X 5/8 (4)		Appelez-nous	-
13	816406		Hinge Assy. (2)		Appelez-nous	-
14	816415		Spacer, Door Handle		Appelez-nous	-
15	816367		Retainer, Glass		Appelez-nous	-
16	816440		Spacer, Handle (2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
