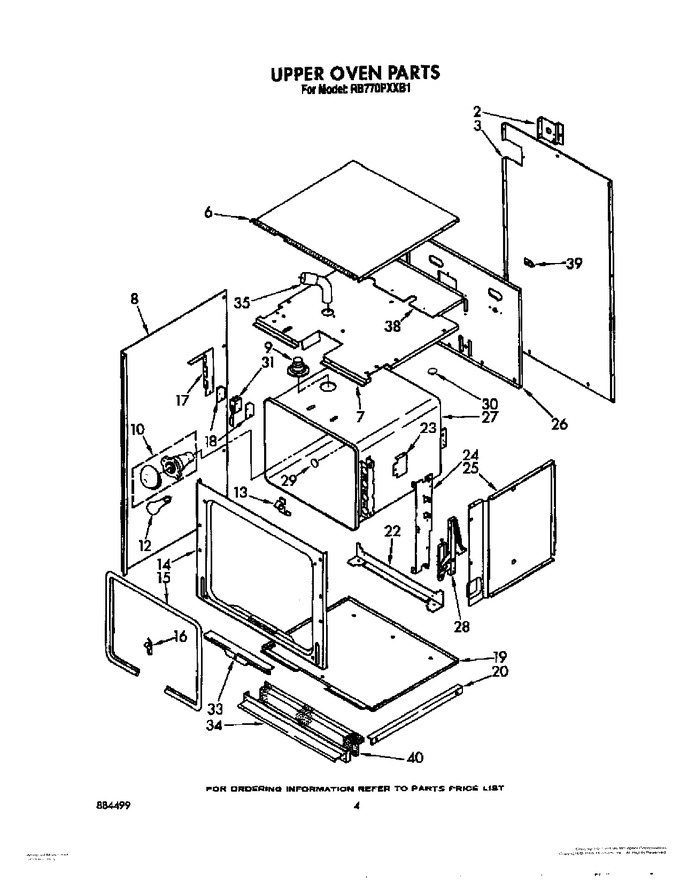

03 - Upper Oven
04 - Lower Oven
05 - Upper Oven Door
06 - Lower Oven Door
07 - Component Shelf And Latch
08 - Unit
09 - Wiring Harness
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 3177545 | Bracket, Conduit |
|
- | |||||
| 3 | WP90767 | Screw (14) (Replaces: 300890) |
|
Immediately | $ 8.25 | ||||
| 3 | 3177623 | Cabinet, Back |
|
- | |||||
| 6 | WP90767 | Screw (5) (Replaces: 300890) |
|
Immediately | $ 8.25 | ||||
| 6 | 3178138 | Cabinet, Top |
|
- | |||||
| 7 | 3177436 | Top, Module |
|
- | |||||
| 7 | WP90767 | Screw (8) (Replaces: 300890) |
|
Immediately | $ 8.25 | ||||
| 8 | WP90767 | Screw (18) (Replaces: 300890) |
|
Immediately | $ 8.25 | ||||
| 8 | 3177440 | Side, Cabinet |
|
- | |||||
| 9 | 3179117 | Screw (3) |
|
- | |||||
| 9 | 4168492 | Tube, Vent |
|
- | |||||
| 10 | W11594027 | Oven Light Assy. (Replaces: 3150505) |
|
Immediately | $ 87.01 | ||||
| 12 | 8009 | Bulb, Oven Light (Replaces: 311255) |
|
Immediately | $ 18.67 | ||||
| 13 | 98005642 | Clip, Thermostat Bulb (Replaces: 313382) |
|
Immediately | $ 87.08 | ||||
| 14 | 3177689 | Frame, Front |
|
- | |||||
| 15 | 3179813 | Seal, Door |
|
- | |||||
| 16 | 3179848 | Clip, Oven Seal |
|
- | |||||
| 17 | 3177681 | Bracket, Switch |
|
- | |||||
| 18 | 3177923 | Insulator, Switch |
|
- | |||||
| 19 | 3177621 | Bottom, Module |
|
- | |||||
| 20 | WP90767 | Screw (4) (Replaces: 300890) |
|
Immediately | $ 8.25 | ||||
| 20 | 3179220 | Rail, Support (2) |
|
- | |||||
| 21 | 3179117 | Screw (4) |
|
- | |||||
| 21 | 4168217 | Support, Element (2) |
|
- | |||||
| 22 | 3177434 | Support, Oven |
|
- | |||||
| 22 | WP90767 | Screw (2) (Replaces: 300890) |
|
Immediately | $ 8.25 | ||||
| 23 | 3178612 | Shield, Radiation |
|
- | |||||
| 23 | WP90767 | Screw (2) (Replaces: 300890) |
|
Immediately | $ 8.25 | ||||
| 24 | WP90767 | Screw (2) (Replaces: 300890) |
|
Immediately | $ 8.25 | ||||
| 24 | 3177433 | Bracket, Hinge |
|
- | |||||
| 24 | 3178000 | Screw (6) |
|
- | |||||
| 25 | 3177572 | Side, Module (r.h. & L.h.) |
|
- | |||||
| 25 | WP90767 | Screw (4) (Replaces: 300890) |
|
Immediately | $ 8.25 | ||||
| 26 | WP90767 | Screw (8) (Replaces: 300890) |
|
Immediately | $ 8.25 | ||||
| 26 | 3177556 | Back, Module |
|
- | |||||
| 27 | 3180828 | Liner, Oven |
|
- | |||||
| 28 | 3178000 | Screw (4) |
|
- | |||||
| 28 | 3178298 | Hinge, Door (2) |
|
- | |||||
| 29 | 4159122 | Button, Plug |
|
- | |||||
| 30 | 4159120 | Button, Plug |
|
- | |||||
| 31 | 4159117 | Nut (2) |
|
- | |||||
| 31 | 313489 | Screw (2) |
|
- | |||||
| 31 | 4173553 | Switch, Door |
|
- | |||||
| 33 | 3179587 | Retainer, Seal |
|
- | |||||
| 33 | W11233072 | Screw (2) (Replaces: 4159450) |
|
Immediately | $ 14.72 | ||||
| 34 | 3180022 | Screw (4) |
|
- | |||||
| 34 | 3177751 | Vent, Middle Trim |
|
- | |||||
| 34 | 4168863 | Screw (2) |
|
- | |||||
| 35 | 3179922 | Vent, Tube (upper, Female) |
|
- | |||||
| 36 | WP90767 | Screw (Replaces: 300890) |
|
Immediately | $ 8.25 | ||||
| 36 | 3180321 | Vent Tube (upper Male) |
|
- | |||||
| 38 | 3178132 | Extension, Shelf |
|
- | |||||
| 38 | WP3177991 | Screw (8) (Replaces: 3177991) |
|
Immediately | $ 7.55 | ||||
| 39 | 4168203 | Cover, Cap Tube |
|
- | |||||
| 39 | 4159445 | Screw |
|
- | |||||
| 40 | 3180888 | Screen, Wire Mesh |
|
- | |||||
| 40 | 3180040 | Screw, Shoulder |
|
- | |||||
| 40 | 3177862 | Insulation, Wrap |
|
- | |||||
| 40 | 3177868 | Insulation, Back |
|
- | |||||
| 40 | WP90767 | Screw (8) (Replaces: 300890) |
|
Immediately | $ 8.25 |
