02 - Control Panel, Optional


03 - Upper Oven


04 - Lower Oven


05 - Upper Oven Door


06 - Lower Oven Door


07 - Component Shelf And Latch


08 - Unit

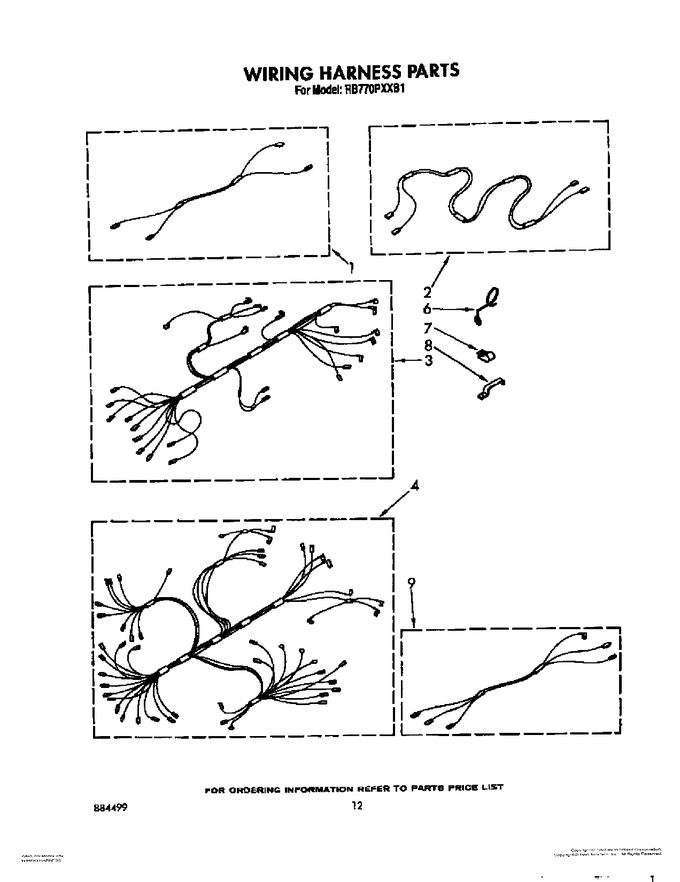

09 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3179941		Harness Wire (door Switch Upper)		Appelez-nous	-
2	3179962		Harness Wire (door Switch Lower)		Appelez-nous	-
3	3180385		Wiring Harness (lower Oven)		Appelez-nous	-
4	3180384		Harness Wire (upper Oven)		Appelez-nous	-
6	3179668		Standoff, Wire		Appelez-nous	-
6	WP90767		Screw (4)   (Replaces: 300890)			Immediately	$ 8.25
7	WP308605		Clamp, Wire   (Replaces: 3179669)				$ 11.76
8	7111P002-60		Clamp, Wire   (Replaces: 4159037)		Appelez-nous	-
9	3180731		Wiring Harness (latch Assembly)		Appelez-nous	-
9	WP112432		Nut, Hex (3)   (Replaces: 112432)				$ 8.63
