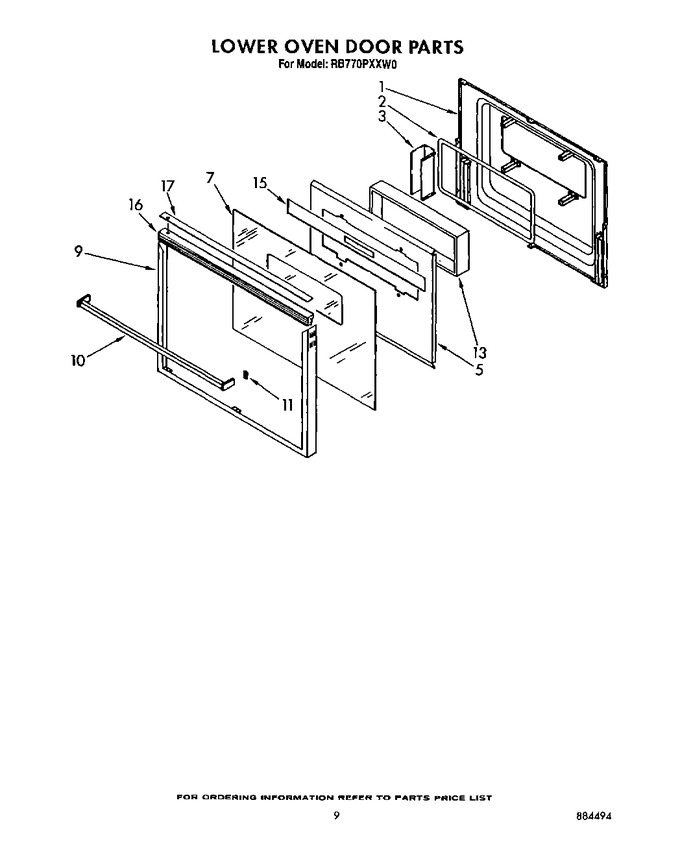

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3177600 Liner, Door Appelez-nous -
1 4168863 Screw (6) Appelez-nous -
1 3178001 Screw (2) Appelez-nous -
2 3178584 Gasket, Window Appelez-nous -
3 3179693 Spacer, Window Appelez-nous -
5 WP90767 Screw (4)   (Replaces: 300890) In-Stock Immediately $ 8.25

5 3177718 Insulation, Retainer Appelez-nous -
7 3179500 Glass, Door Appelez-nous -
9 3180607 Frame, Door Appelez-nous -
10 3179483 Handle, Door Appelez-nous -
10 WP355515 Screw (2)   (Replaces: 355515) Special Order $ 8.48

11 3148282 Clip (2) Special Order $ 8.69

13 4164235 Window Package Appelez-nous -
15 3181348 Shield, Door Appelez-nous -
15 WP90767 Screw (2)   (Replaces: 300890) In-Stock Immediately $ 8.25

16 WP3149478 Trim, Top   (Replaces: 3149478) Special Order $ 10.08

17 4168863 Screw (2) Appelez-nous -
17 3181364 Cap, Top Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List
