Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3180828 Liner, Oven Appelez-nous -
2 661415 Element, Broil Appelez-nous -
2 4168674 Retainer (2) Appelez-nous -
2 3179117 Screw (4) Appelez-nous -
3 4396923 Grill, Broiler   (Replaces: 3147563) In-Stock Immediately $ 60.71

4 4396923 Pan, Broiler   (Replaces: 3147845) In-Stock Immediately $ 60.71

5 3180865 Rack, Offset Appelez-nous -
6 3180864 Rack, Oven Appelez-nous -
7 WP661416 Element, Bake   (Replaces: 661416) Special Order $ 153.22

7 3179117 Screw (2) Appelez-nous -
8 3180694 Bracket, Element Appelez-nous -
8 3179117 Screw (2) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

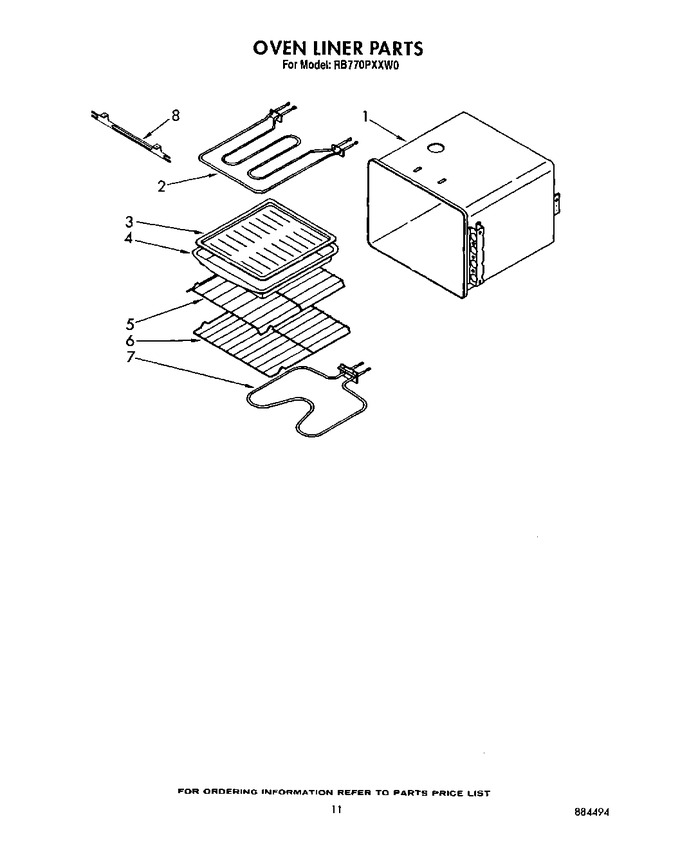

Diagram for RB770PXXW0
