SELECT A DIAGRAM

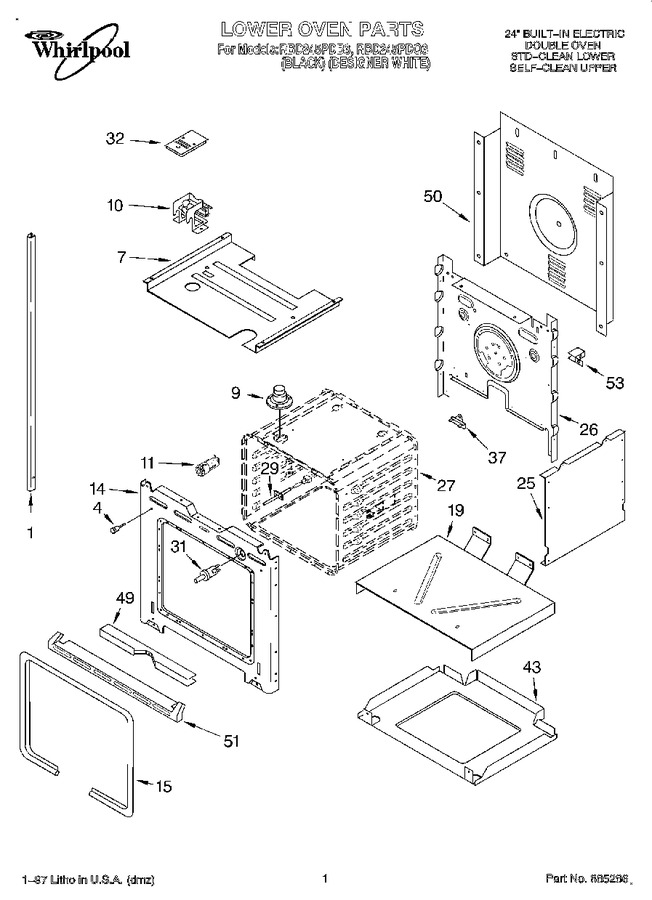

01 - Lower Oven


02 - Upper Oven


03 - Lower Oven Door


04 - Upper Oven Door


05 - Internal Oven


06 - Control Panel, Literature


07 - Top Venting, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4450850		Trim, Side (rh Black)		Appelez-nous	-
1	4450851		Trim, Side (right Hand) (white Model)		Appelez-nous	-
1	4450853		Trim, Side (lh Black)		Appelez-nous	-
1	4450854		Trim, Side (left Hand)) (white Model)		Appelez-nous	-
1	WP8281236		Trim, Side (screw) (black Model)   (Replaces: 4449747)				$ 8.16
1	4449041		Trim, Side (screw White)				$ 5.27
4	4448520		Bumper, Door				$ 22.25
7	4451164		Partition		Appelez-nous	-
7	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
9	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
9	4449009		Tube, Vent		Appelez-nous	-
10	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
10	4451050		Fan & Bracket Assy		Appelez-nous	-
11	4450706		Oven Light Assy		Appelez-nous	-
11	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
14	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
14	4450415		Frame, Front		Appelez-nous	-
15	W10203263		Gasket, Door   (Replaces: 4450491)		Appelez-nous	-
19	4451476		Support, Insulation   (Replaces: 4450540)		Appelez-nous	-
25	4450528		Side, Chassis (r.h. & L.h.)		Appelez-nous	-
25	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
26	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
26	4452232		Back, Chassis   (Replaces: 4454727)		Appelez-nous	-
29	4450026		Sensor		Appelez-nous	-
29	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
31	4450819		Switch, Door		Appelez-nous	-
32	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
32	4449369		Vent Box Assy		Appelez-nous	-
37	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
37	WP4451354		Fuse - Thermal   (Replaces: 4451354)				$ 45.50
43	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
43	4450525		Base, Chassis		Appelez-nous	-
49	WP4448933		Retainer, Gasket   (Replaces: 4448933)				$ 9.30
49	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
50	4450544		Cover, Back		Appelez-nous	-
50	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
51	4448474		Trim, Bottom (white Model)		Appelez-nous	-
51	4448473		Trim, Bottom (black Model)		Appelez-nous	-
51	4450289		Trim, Bottom (screw)		Appelez-nous	-
53	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
53	WP4450363		Insulation, Back   (Replaces: 4450363)				$ 189.22
53	4449845		Bracket-support		Appelez-nous	-
53	WP4449314		Insulation, Wrap   (Replaces: 4449314)				$ 189.64
