SELECT A DIAGRAM

01 - Lower Oven


02 - Upper Oven

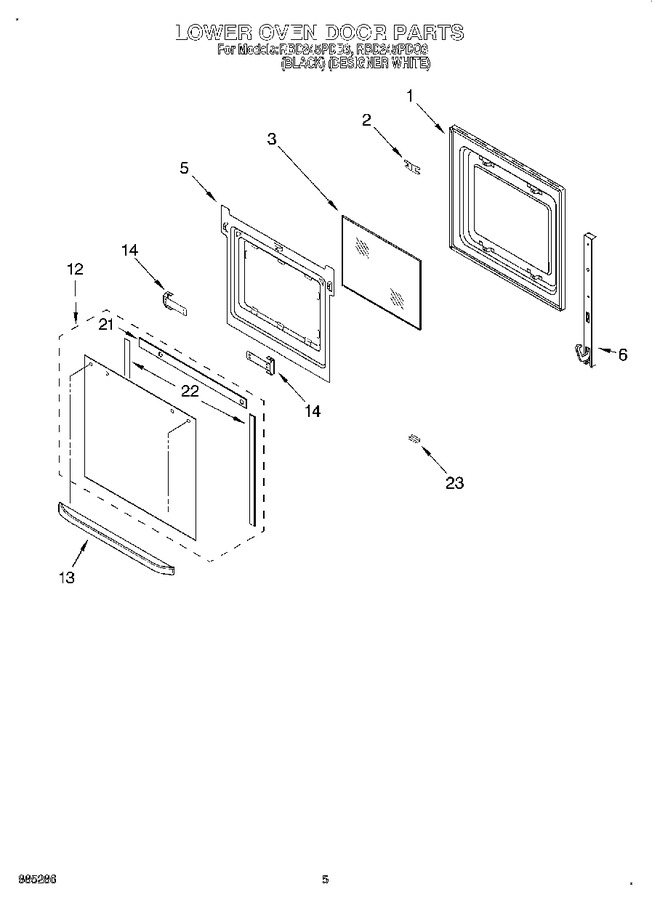

03 - Lower Oven Door


04 - Upper Oven Door


05 - Internal Oven


06 - Control Panel, Literature


07 - Top Venting, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4450427		Liner, Door		Appelez-nous	-
2	4450935		Plug, Door		Appelez-nous	-
3	WP4449247		Glass, Inner   (Replaces: 4449246)				$ 184.30
5	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
5	4450421		Retainer, Glass		Appelez-nous	-
6	WP4449743		Screw   (Replaces: 4449743)				$ 7.55
6	4451171		Hinge, Door		Appelez-nous	-
12	4450688		Door Glass, Outer (white Model)		Appelez-nous	-
12	4450687		Door Glass, Outer (black Model)		Appelez-nous	-
13	4448402		Door Handle (black Model)		Appelez-nous	-
13	4448403		Door Handle (white Model)		Appelez-nous	-
14	W10276642		Screw   (Replaces: 4451040)				$ 6.41
14	4450813		Bracket, Handle				$ 24.20
21	4450835		Seal, Door Top		Appelez-nous	-
22	4450838		Seal, Side		Appelez-nous	-
23	4450864		Retainer, Clip (white Model)		Appelez-nous	-
23	4450863		Retainer, Clip (black Model)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
