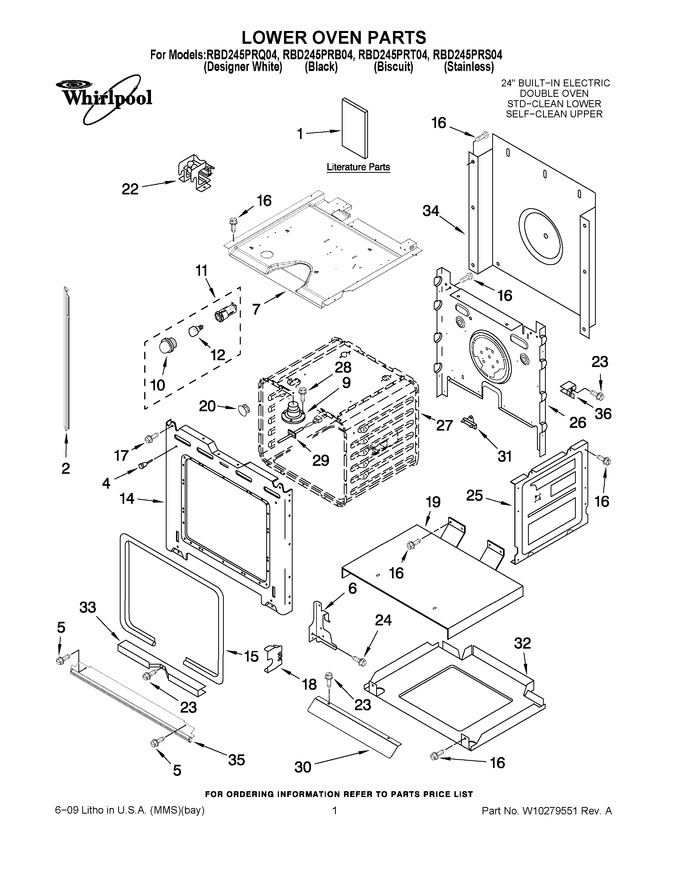

01 - Lower Oven Parts


02 - Upper Oven Parts


03 - Lower Oven Door Parts


04 - Upper Oven Door Parts


05 - Internal Oven Parts


06 - Control Panel Parts


07 - Top Venting Parts


08 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10162170		Use & Care Guide		Appelez-nous	-
1	8303871		Installation Instructions		Appelez-nous	-
1	9762761		Safer Cooking Tips		Appelez-nous	-
1	8302068		Tech Sheet		Appelez-nous	-
2	W10136103		Trim, Side Left (biscuit)		Appelez-nous	-
2	W10136098		Trim, Side Right (black)		Appelez-nous	-
2	W10136100		Trim, Side Right (white)		Appelez-nous	-
2	W10339503		Trim, Side Right (biscuit)   (Replaces: W10136102)		Appelez-nous	-
2	WPW10339500		Trim, Side Left (black)   (Replaces: W10136099)				$ 204.80
2	WPW10339502		Trim, Side Left (white)   (Replaces: W10136101)				$ 128.76
4	4448520		Bumper, Door				$ 22.25
5	WP3400832		Screw (black)   (Replaces: 3400832)			Immediately	$ 8.18
5	WP3400805		Screw (zinc)   (Replaces: 3400805)				$ 7.55
6	WP4455605		Receiver, Hinge (left)   (Replaces: 4455605)			Immediately	$ 127.70
6	WP4455606		Receiver, Hinge (right)   (Replaces: 4455606)			Immediately	$ 131.74
7	4455863		Top Chassis				$ 117.60
9	W10861715		Tube, Vent   (Replaces: 4452159)				$ 122.46
10	W10067870		Lens, Light				$ 65.50
11	WPW10734065		Assembly, Oven Light   (Replaces: W10009930)				$ 101.46
12	WP4173175		Bulb, Light   (Replaces: 4452166)			Immediately	$ 53.62
14	9760754		Frame, Front				$ 132.66
15	W10203263		Gasket, Door		Appelez-nous	-
16	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
17	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
18	4452152		Bracket, Mounting- Bottom Vent				$ 35.18
19	4451476		Support, Insulation		Appelez-nous	-
20	4450935		Plug, Door		Appelez-nous	-
22	4451664		Assembly, Fan & Bracket		Appelez-nous	-
23	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
24	WP4449743		Screw   (Replaces: 4449743)				$ 7.55
25	W10782197		Side, Chassis   (Replaces: 4455641)				$ 150.69
26	4452232		Back, Chassis		Appelez-nous	-
27	N/P		Liner, Oven (not Serviceable)		Appelez-nous	-
28	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 14.72
29	WPW10131825		Sensor   (Replaces: W10131825)			Immediately	$ 95.83
30	9760675		Deflector, Vent				$ 76.62
31	WP4451354		Fuse - Thermal   (Replaces: 4451354)				$ 45.50
32	4450525		Base, Chassis		Appelez-nous	-
33	WP4448933		Retainer, Gasket   (Replaces: 4448933)				$ 9.30
34	WP4451747		Cover-back   (Replaces: 4451747)				$ 150.07
35	W10153079		Trim, Bottom (biscuit)		Appelez-nous	-
35	W10153077		Trim, Bottom (black)		Appelez-nous	-
35	W10153078		Trim, Bottom (white)		Appelez-nous	-
36	4449845		Support, Bracket		Appelez-nous	-
NI	WP4449314		Insulation, Wrap   (Replaces: 4449314)				$ 189.64
NI	WP4450363		Insulation, Back   (Replaces: 4450363)				$ 189.22
