SELECT A DIAGRAM

01 - Lower Oven Parts


02 - Upper Oven Parts

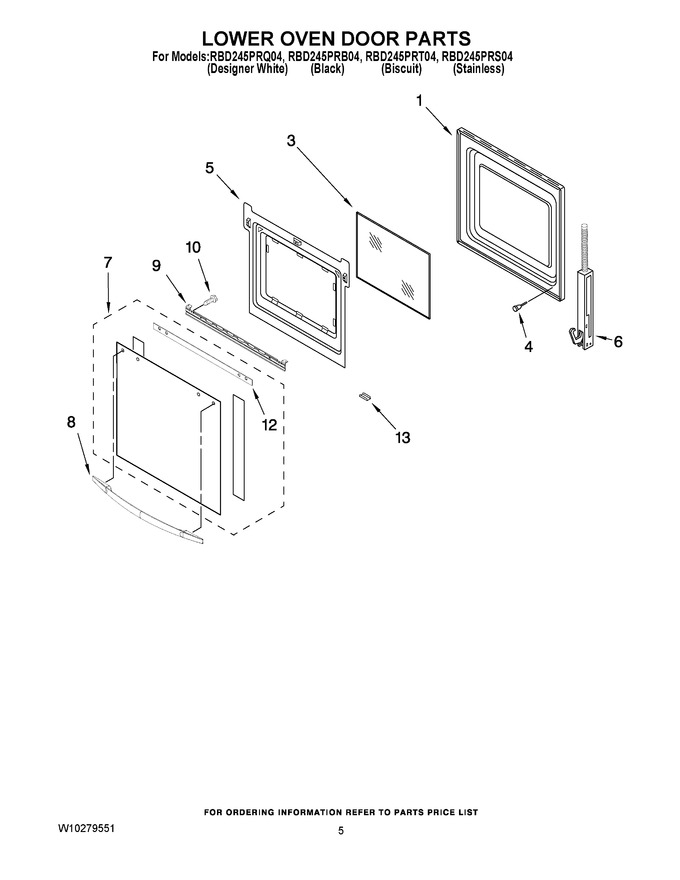

03 - Lower Oven Door Parts


04 - Upper Oven Door Parts


05 - Internal Oven Parts


06 - Control Panel Parts


07 - Top Venting Parts


08 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP8303698		Liner, Door   (Replaces: 8303698)				$ 351.88
3	WP4449247		Glass, Inner   (Replaces: 4449247)				$ 184.30
4	4448520		Bumper, Door				$ 22.25
5	4457130		Retainer, Glass		Appelez-nous	-
6	9760564		Hinge, Door (left)		Appelez-nous	-
6	WP9760563		Hinge, Door (right)   (Replaces: 9760563)				$ 93.66
7	8303337		Assembly, Door Glass (white)		Appelez-nous	-
7	8303340		Assembly, Door Glass (biscuit)		Appelez-nous	-
7	8303312		Assembly, Door Glass (stainless)		Appelez-nous	-
7	8303328		Assembly, Door Glass (black)		Appelez-nous	-
8	8302809		Door Handle (biscuit)		Appelez-nous	-
8	8302808		Door Handle (white)		Appelez-nous	-
8	8302807		Door Handle (black)		Appelez-nous	-
9	W10136471		Bracket, Handle		Appelez-nous	-
10	W10276642		Screw   (Replaces: 4451040)				$ 6.41
12	8303876		Seal, Door		Appelez-nous	-
13	4452119		Retainer, Clip (biscuit)		Appelez-nous	-
13	4450863		Retainer, Clip (black)		Appelez-nous	-
13	W10158497		Retainer, Clip (stainless)				$ 5.65
13	4450864		Retainer, Clip (white)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
