01 - Lower Oven Parts

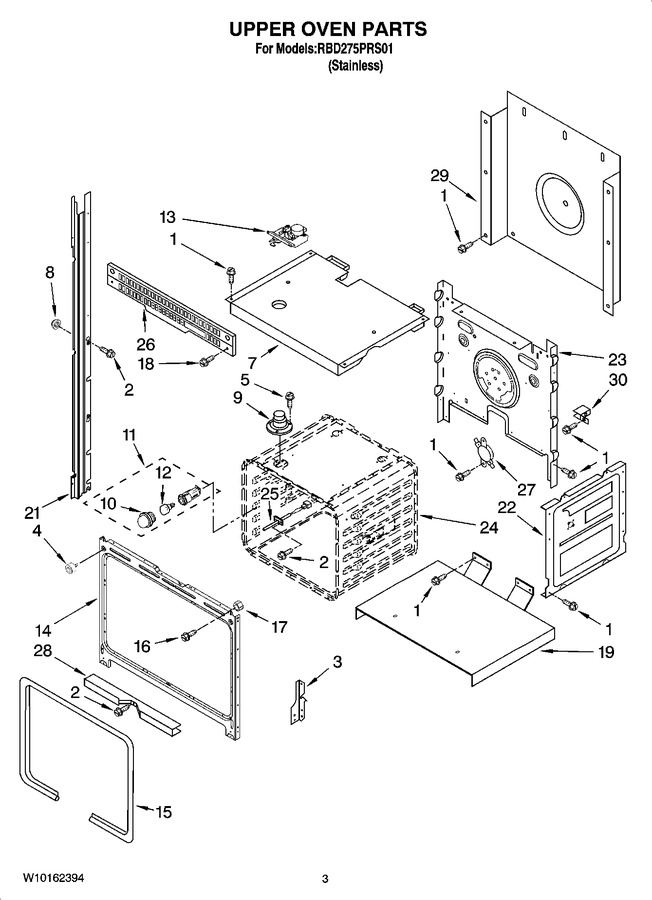

02 - Upper Oven Parts
03 - Oven Door Parts
04 - Internal Oven Parts
05 - Control Panel Parts
06 - Top Venting Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 7.55 | ||||
| 2 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 8.16 | |||||
| 3 | WP4455606 | Hinge Receiver (right) (Replaces: 4455606) |
|
Immediately | $ 131.74 | ||||
| 3 | WP4455605 | Hinge Receiver (left) (Replaces: 4455605) |
|
Immediately | $ 127.70 | ||||
| 4 | W10105790 | Bumper, Door |
|
$ 7.41 | |||||
| 5 | W11233072 | Screw (Replaces: 3196176) |
|
Immediately | $ 14.72 | ||||
| 7 | 4455864 | Top, Chassis |
|
$ 22.85 | |||||
| 8 | WP4448444 | Grommet (Replaces: 4448444) |
|
$ 7.85 | |||||
| 9 | W10861715 | Tube, Vent (Replaces: 4452158) |
|
$ 122.46 | |||||
| 10 | W10067870 | Lens, Light |
|
$ 65.50 | |||||
| 11 | WPW10734065 | Assembly, Oven Light (Replaces: W10009930) |
|
$ 101.46 | |||||
| 12 | WP4173175 | Bulb, Light (Replaces: 4452166) |
|
Immediately | $ 53.62 | ||||
| 13 | WP9760889 | Latch, Motorized (Replaces: 9760888) |
|
Immediately | $ 345.08 | ||||
| 14 | W10130370 | Frame, Front |
|
$ 79.39 | |||||
| 15 | WP4455381 | Gasket, Door (Replaces: 4455381) |
|
$ 185.61 | |||||
| 16 | WP4449040 | Screw (Replaces: 4449040) |
|
$ 6.78 | |||||
| 17 | WP4450118 | Nut (Replaces: 4450118) |
|
$ 8.78 | |||||
| 18 | WP3400832 | Screw (Replaces: 3400832) |
|
Immediately | $ 8.18 | ||||
| 19 | 4451477 | Support, Insulation |
|
- | |||||
| 21 | 8302794 | Rail, Side (left) |
|
$ 164.19 | |||||
| 21 | WP8302793 | Rail, Side (right) (Replaces: 8302793) |
|
$ 154.74 | |||||
| 22 | W10782197 | Side, Chassis (Replaces: 4455641) |
|
$ 150.69 | |||||
| 23 | 4452233 | Back, Chassis |
|
- | |||||
| 25 | WPW10131825 | Sensor (Replaces: 4455636) |
|
Immediately | $ 95.83 | ||||
| 26 | 4452266 | Vent, Center |
|
$ 60.71 | |||||
| 27 | WP9759243 | Thermostat (Replaces: 9759243) |
|
Immediately | $ 55.44 | ||||
| 28 | WP4448933 | Retainer, Gasket (Replaces: 4448933) |
|
$ 9.30 | |||||
| 29 | WP4451747 | Cover-back (Replaces: 4451747) |
|
$ 150.07 | |||||
| 30 | 4450364 | Insulation, Back |
|
- | |||||
| 30 | 4449845 | Support, Bracket |
|
- | |||||
| 30 | 4449315 | Insulation, Wrap |
|
$ 64.81 |
